Canon EOS 7 - DISASSEMBLY AND REASSEMBLY

2. DISASSEMBLY AND REASSEMBLY
2.1 DISASSEMBLY OF EXTERNAL COVERS

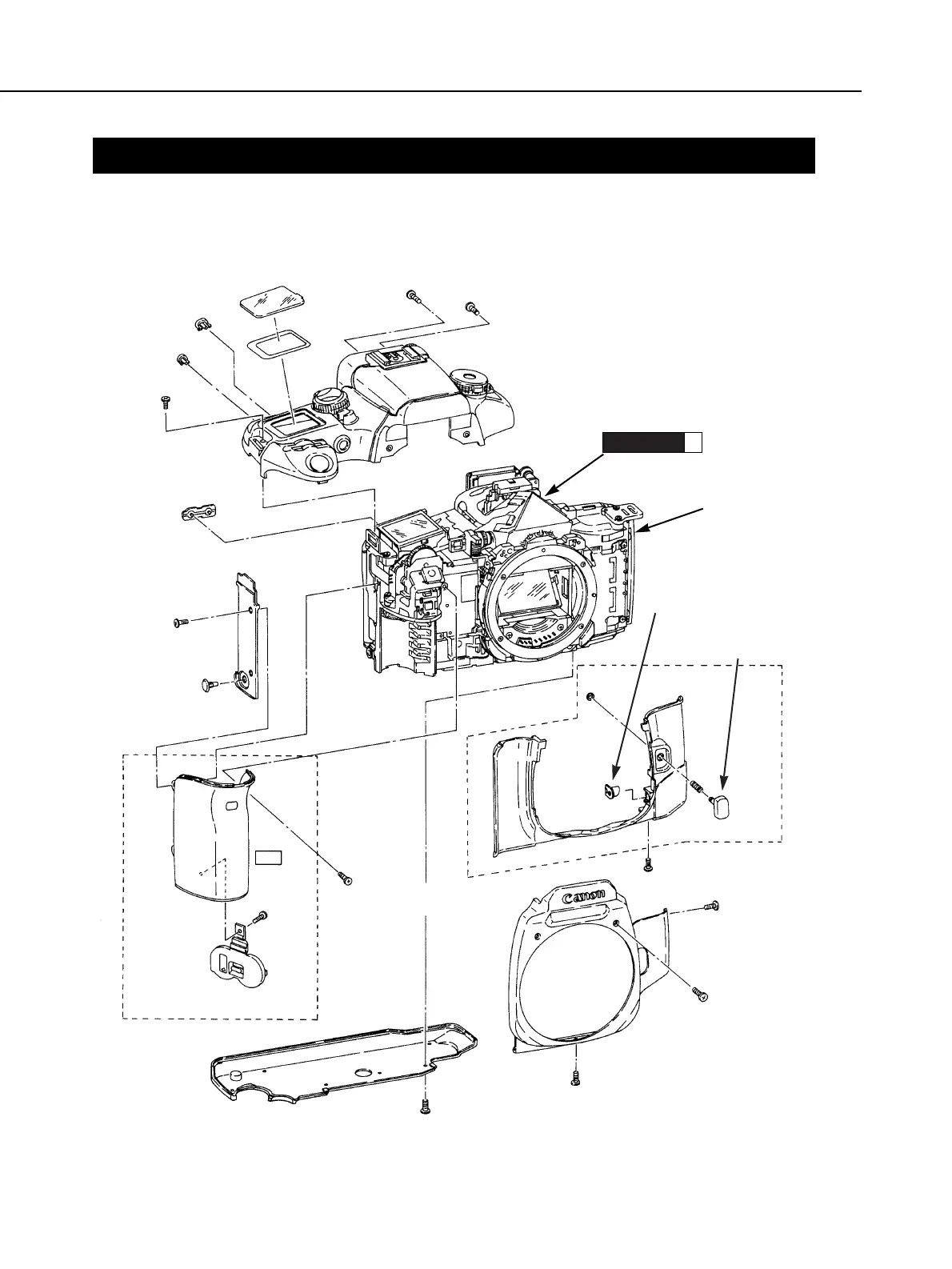

Fig. 3-11 Disassembly of external covers
Part 3: Repair Information
3-8
4.0mm x2
4.5mm
4.5mm x2
4.5mm
4.5mm
4.5mm
4.5mm x2
5.2mm x2
4.0mm x7
(3)
(1)
(4)
(5)
(2)
4.5mm
(1)
(6)
(1)
5.5mm
(1)
High voltage
★Fasten with cel-
lophane tape
8 x 20mm
★PL-015JG
None in E ring
groove
CAUTION
1
