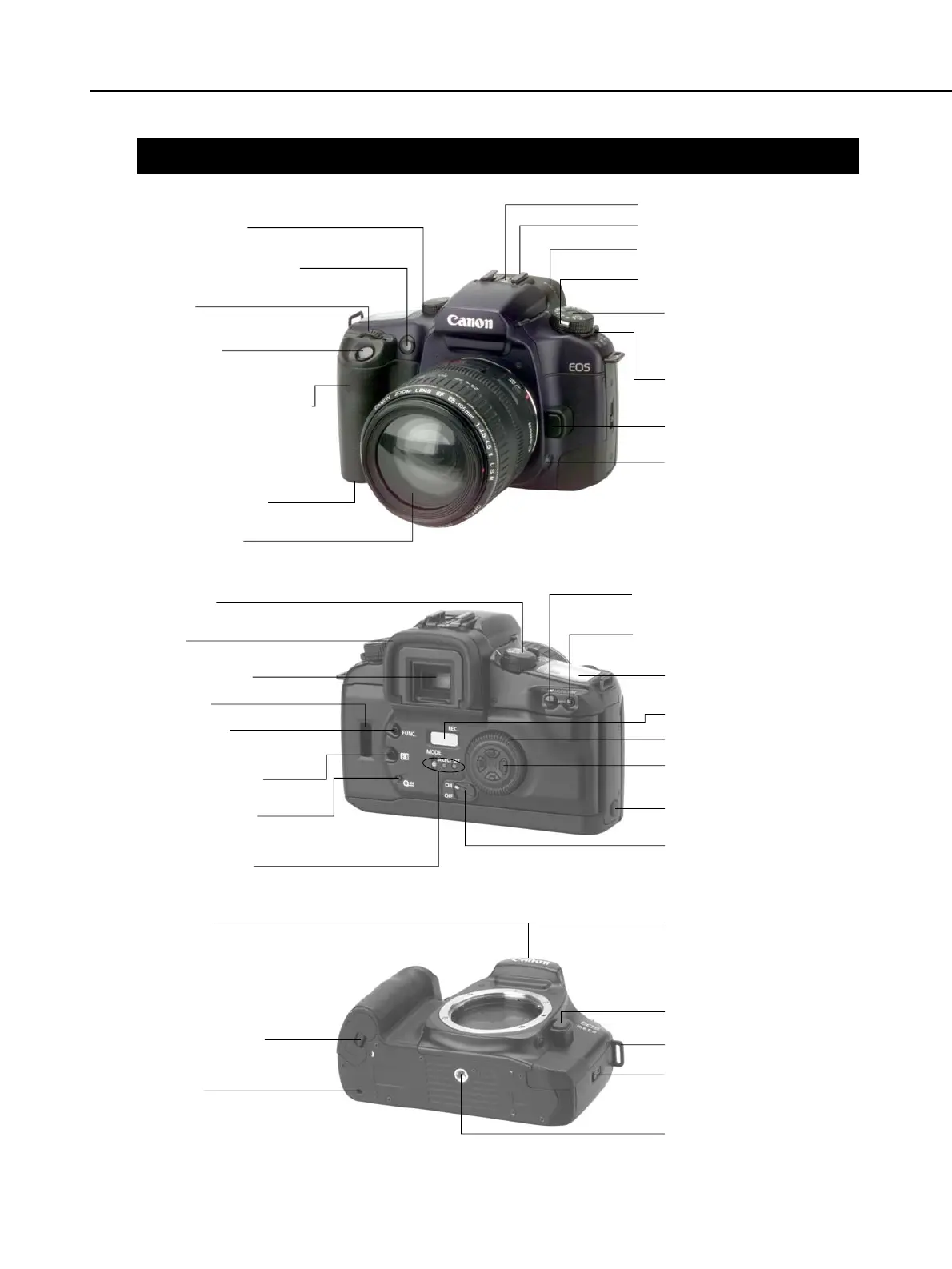

X-sync contact
Shutter button
• SW-1 ON (halfway): Metering, AF operates
SW-2 ON (complete): Shutter release
LCD panel
Remote control terminal
• Compatible with RS-60E-3
Strap eyelet
Date setting buttons
• MODE/SELECT/SET
Date display
Film window
Viewfinder eyepiece
Camera back lever
• Slide down to open
Command Dial
• OFF/Full Auto/Portrait/
Landscape/Closeup/Sports/
Night Scene
P/Tv/Av/M/DEP/C.Fn
Eyecup
• Ed
AE lock/FE lock/Custom Function
setting button
Lens release button
Tripod socket
Normal zoom lens
• EF 28-105mm f/3.5-4.5 II USM
• EF 28-90mm f/4-5.6 (USM)
Grip (battery chamber)
• CR123A x 2
Main Dial
Hot shoe
Wireless remote control sensor
• Shutter release or 2-sec. delay with RC-1
(Sold separately)
RC-5 also connectable
Depth-of-field preview button
• Enabled in the P, Tv, Av, M,
DEP modes.
• Fires modeling flash (for 1 sec. at 70 Hz)
with 550EX, MR-14EX, or SPEEDLITE
420EX attached.
Midroll rewind button
• Switches between silent and high-speed
rewind during film rewind
Quick Control Dial
Dioptric adjustment knob
• -2.5 - +0.5 dpt
Battery chamber lever
Quick Control Dial switch
• ON/OFF
Eye Control switch
• OFF/ON/CAL
Focusing point selector
• Selects the focusing point
AF mode dial
• AI Focus/One-Shot/AI Servo
Film advance mode lever
• Single/Continuous/Self-timer
(remote control)
Metering mode button
• Evaluative/partial/centerweighted
averaging
Focusing point selection keys
• Top, bottom, left, and right
keys
Guide hole
AF-assist light
• The built-in flash fires an
intermittent flash burst
Built-in flash
• Guide No. 13 (at ISO 100 in m), 28mm focal length coverage
• In the Full Auto and Programmed Image Control modes
(Landscape, Portrait, etc.), fires automatically in
low-light or backlit conditions.
• Retracts manually
Lens release button
Command Dial lock release button
Red-eye reduction/self-timer/
wireless remote control operation lamp
Function button
• 1. ISO speed 2. Red-eye reduction
3. Beeper 4. Multiple exposures
5. Flash exposure compensation 6. AEB
