2.6 F
RONT PANEL
UNIT DISASSEMBLY 3

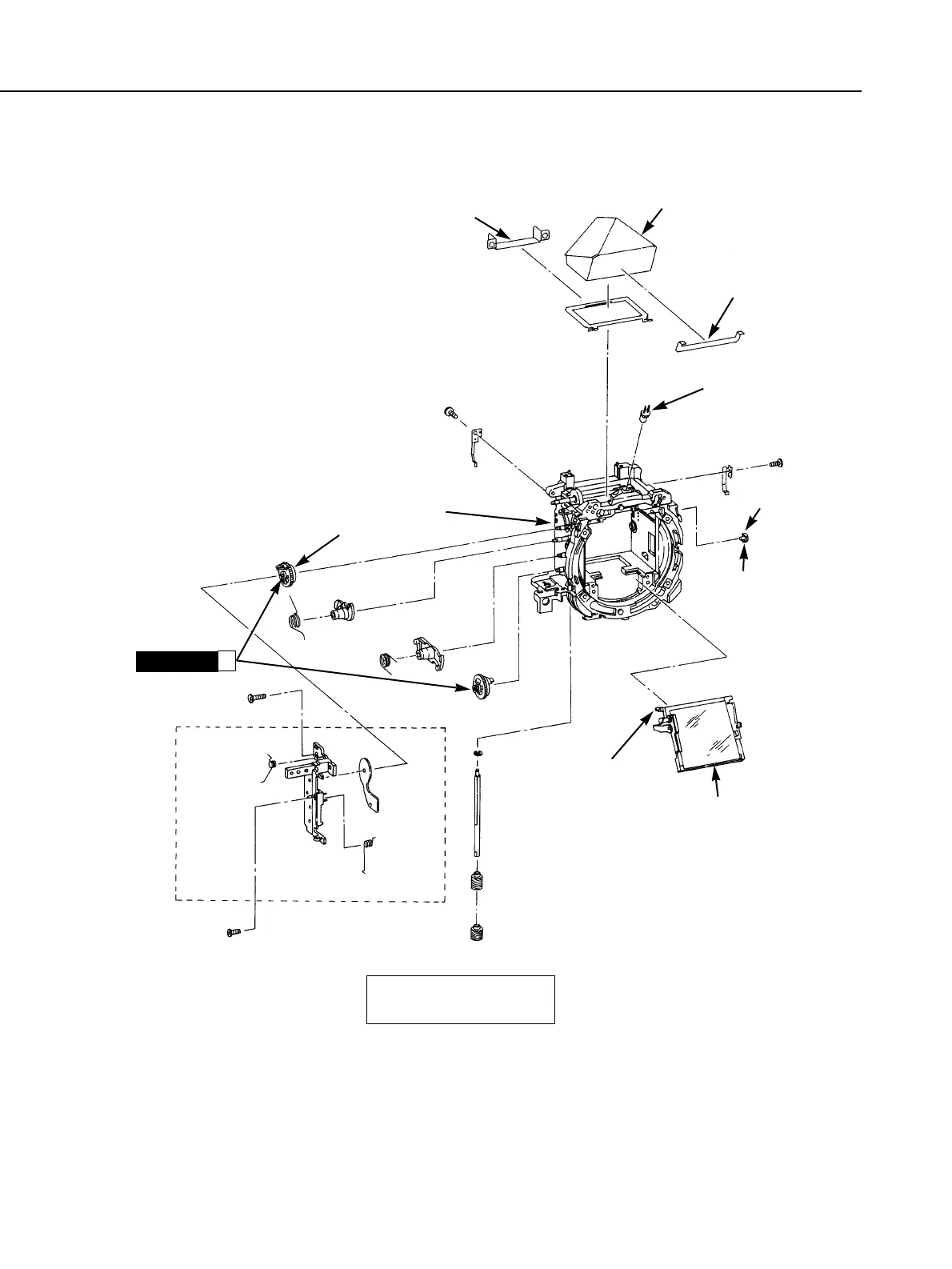

Fig. 3-30 Front panel unit disassembly 3
Part 3: Repair Information
3-20
★Fix with Bond 1663G Black
★Fix with Silicon Bond
KE347B. Wait 12 H.
★Adjustable size to elimi-
nate pentaprism play
3.5mm
3.5mm
★Fix with Bond
1663G Black
★NK-74C
Shaft
★Bond 1663G Black
To affix on front
panel
4.5mm x3
6.0mm
Disassembly normally
not necessary.
★NK-74C
Apply on cam surface
and gear shaft
★PL-015JG
Mirror shaft
When the mirror unit has
been removed or replaced,
angle adjustment and
check are required.
★NK-74C
Apply a light coat on all gears,
gear shafts, and shafts.
CAUTION
4
To Next Page
