imageCLASS MF230 Series Service Guide for ASF
imageCLASS MF230 Series Service Guide for ASF September 2016
Page 8
B. Installation Space Requirements
The approximate installation space requirements for the imageCLASS
MF236n and MF232w are shown below. Always ensure that there is enough
space for the service and operation of the device.
Keep the back and sides of the machine at least 4” (100 mm) away from a
wall for proper servicing of the equipment.

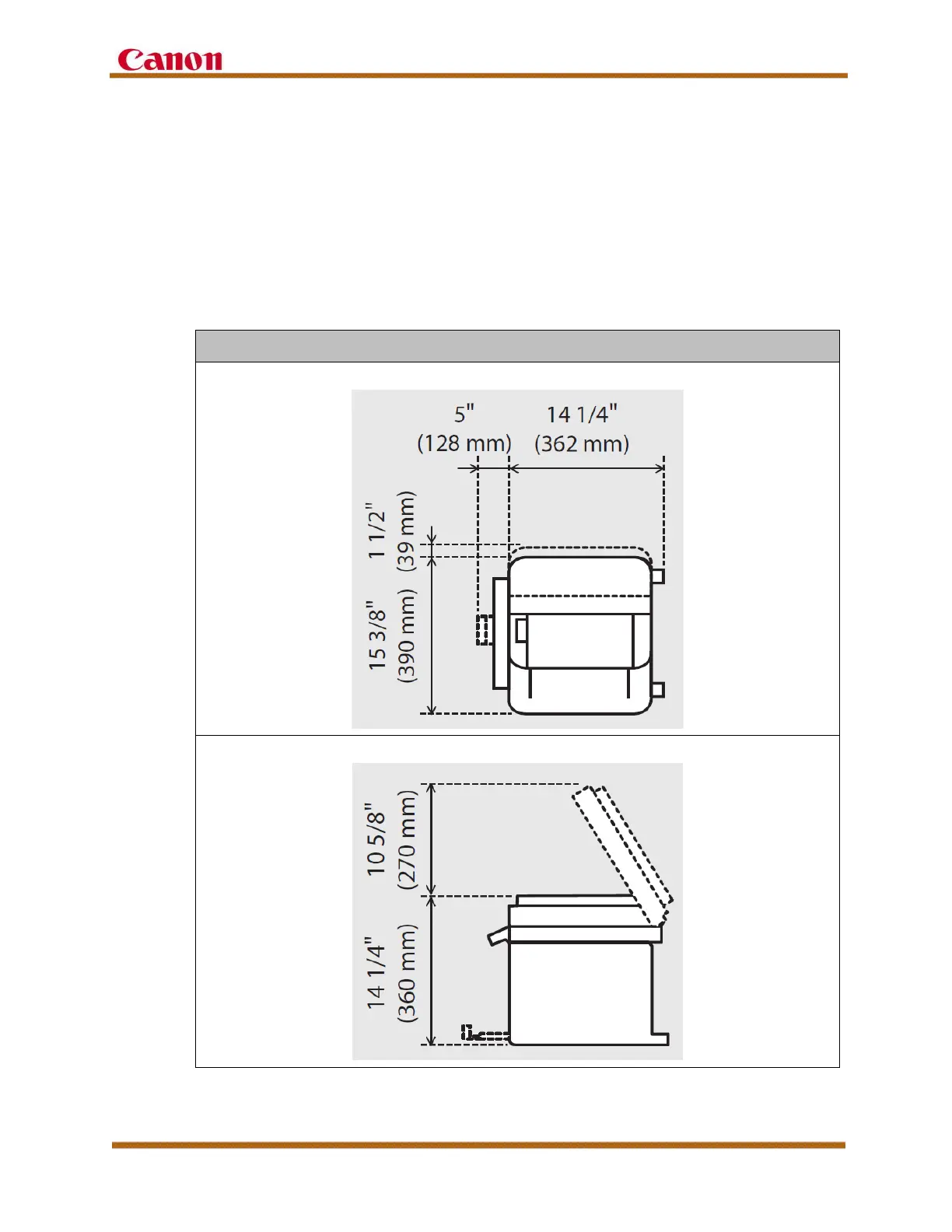

Table 5 — imageCLASS MF236n Installation Space Requirements
imageCLASS MF236n
Width and Depth Requirements
Height Requirements
