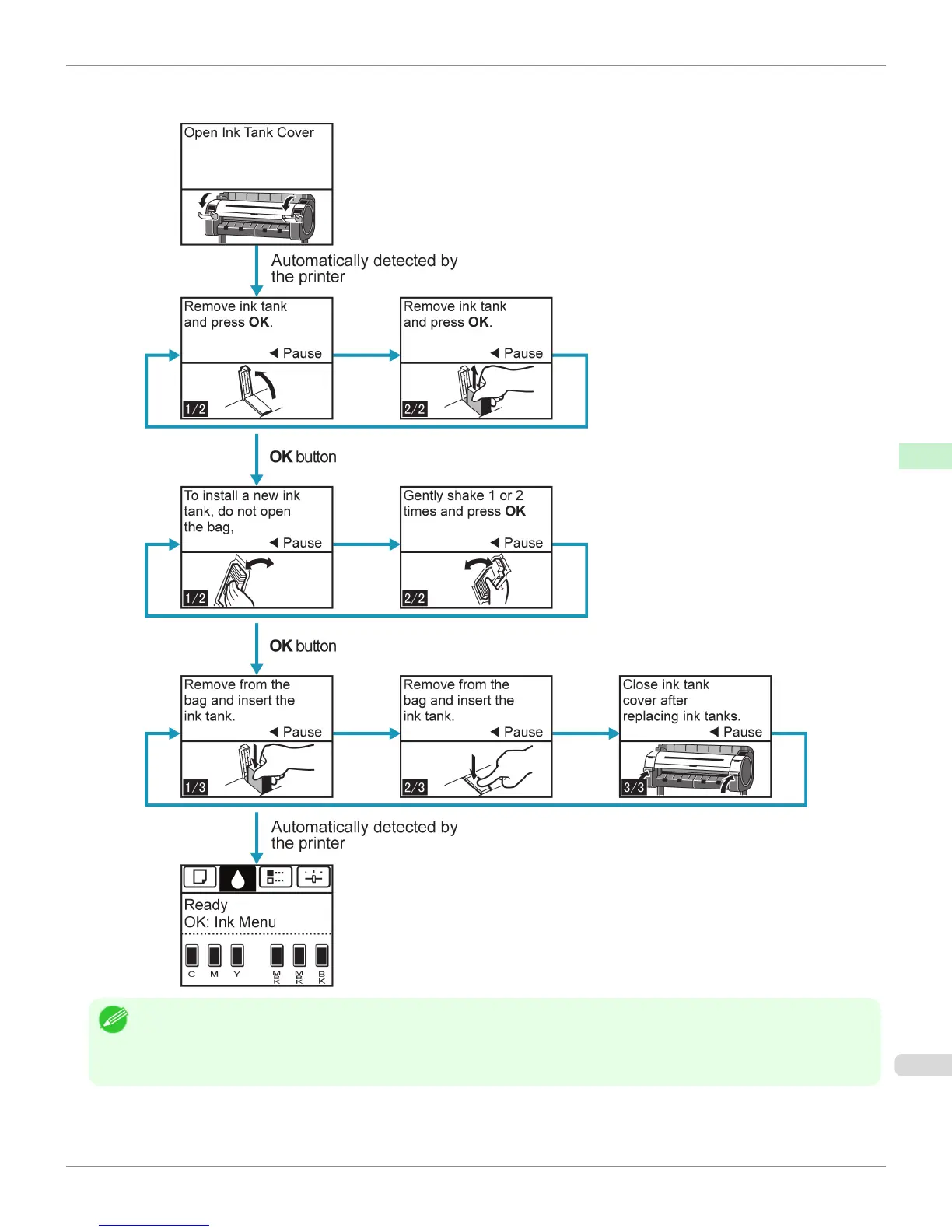

When all actions in the sequence are finished, the instruction screen for the next step is displayed.
Example: Ink tank replacement
Note
• During a continuous display of instructions, you can press the ◀ button to pause the instructions on the current screen.
Press the ◀ or ▶ button to display the previous or next screens. If you do not press the ◀ or ▶ button within 30 seconds,
continuous display is resumed.
Press the OK button to display the instruction screen for the next step.
iPF760 Checking Instructions During Printer Operations
User's Guide
Control Panel Operations and Display Screen
481

Canon imagePROGRAF iPF760 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 917 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Certification	CE, RoHS, ECO, WEEE
Sound power level (standby)	35 dB
Sound pressure level (printing)	50 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
Power requirements	100 - 240V, 50/60Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7\\r Mac OS 10.5 - 10.7.x

Weight and Dimensions

Dimensions (WxDxH)	1304 x 1100 x 1062 mm
