Canon imagePROGRAF iPF8000S Service Manual

Chapter 3
3-3

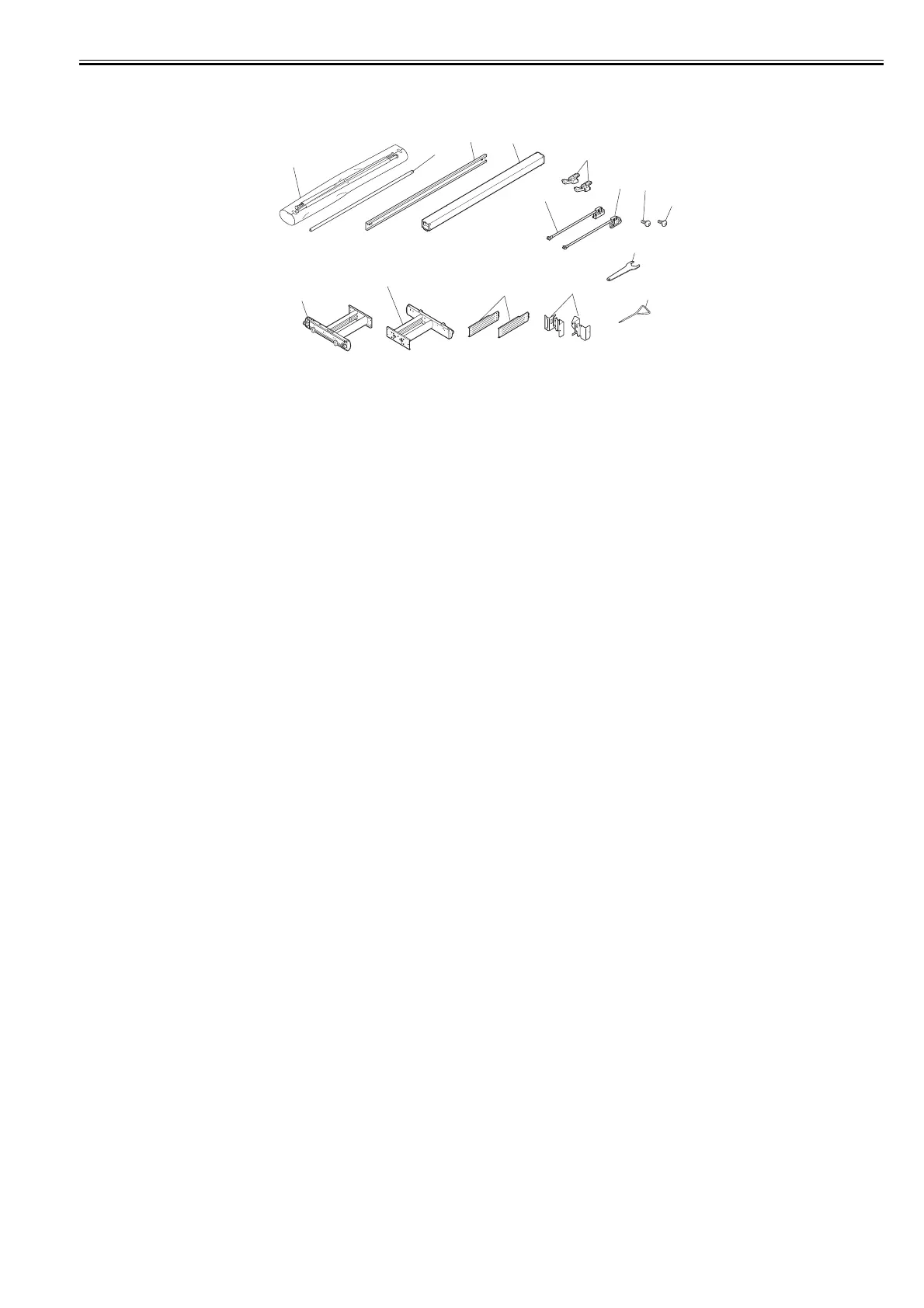

b) Stand and Basket unit
F-3-4
T-3-3
[1] Basket Unit [2] Basket Rod
[3] Bottom Stand Stay [4] Top Stand Stay
[5] Right Stand Leg [6] Left Stand Leg
[7] Rod Holder (2 pcs.) [8] Basket Arm L
[9] Basket Arm R [10] Leg Cover (2 pcs.)
[11] Rod Holder Adapter (2 pcs.) [12] M8 Hex Bolt (8 pcs.)
[13] Spanner [14] Hex Wrench
[15] M4 Hex Screw (20 pcs.)
[1]
[2]
[3]
[4]
[5]
[7]
[8]
[9]
[10]
[11]
[6]
[12]
[13]
[14]
[15]
