Chapter 3
3-4
c) Media take-up unit

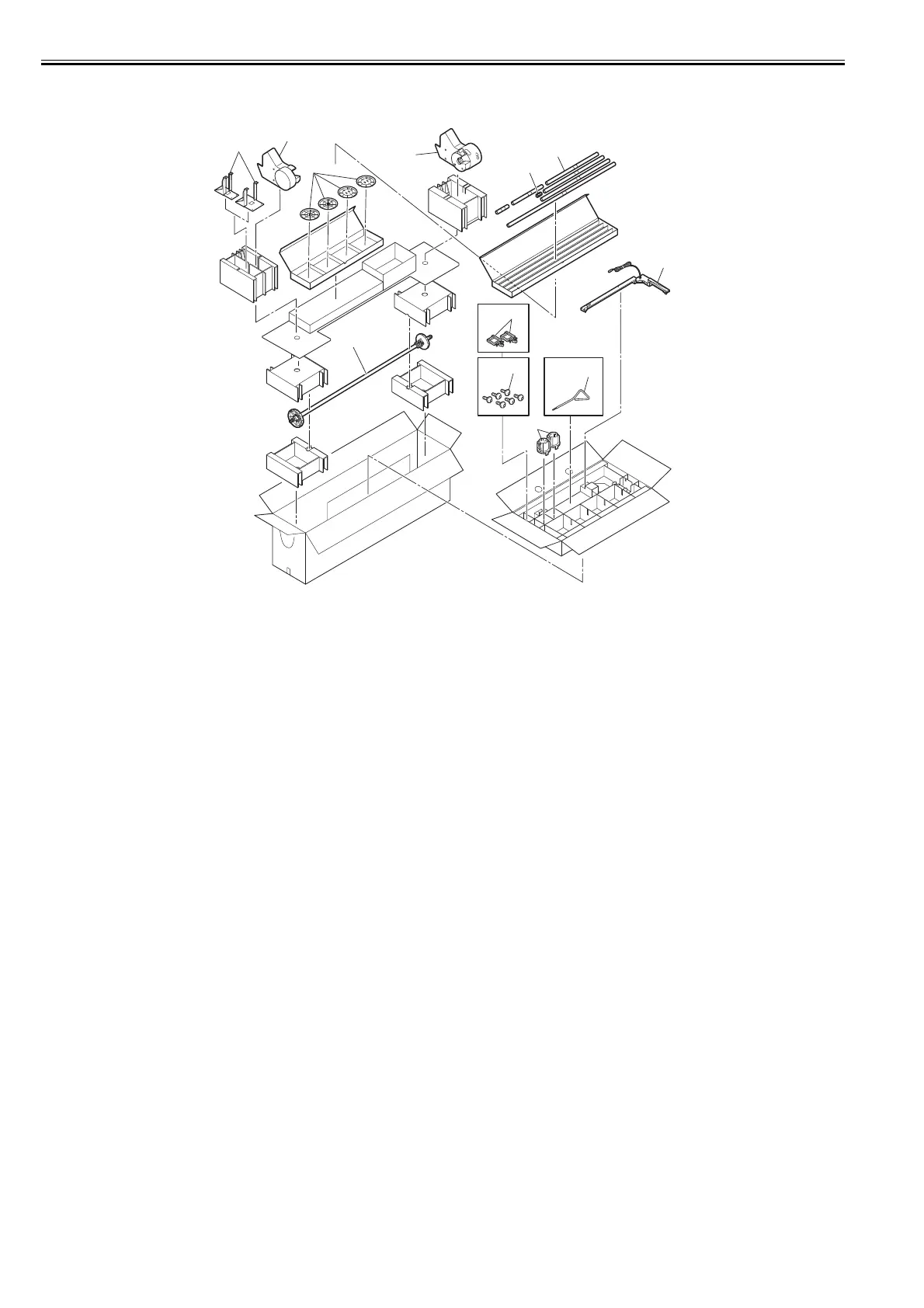

F-3-5
T-3-4
[1] Weight Flange 1/2 (4 pcs.) [2] Media Take-up Unit L
[3] Media Take-up Unit R [4] Media Take-up Unit Mounting Bracket L/R
[5] Media Take-up Spool [6] Media Take-up Sensor Unit
[7] 3 inch Adapter (2 pcs.) [8] M4 Hex Screw (16 pcs.)
[9] Hex Wrench [10] Weight Joint
[11] Weight Roll [12] Cord Holder
