f) Right front cover
Removing the right front cover
1) To remove right front cover [1], remove right circle cover (L), right circle cover (S), right side cover, upper right cover and the operation panel.
2) Remove two screws [2].

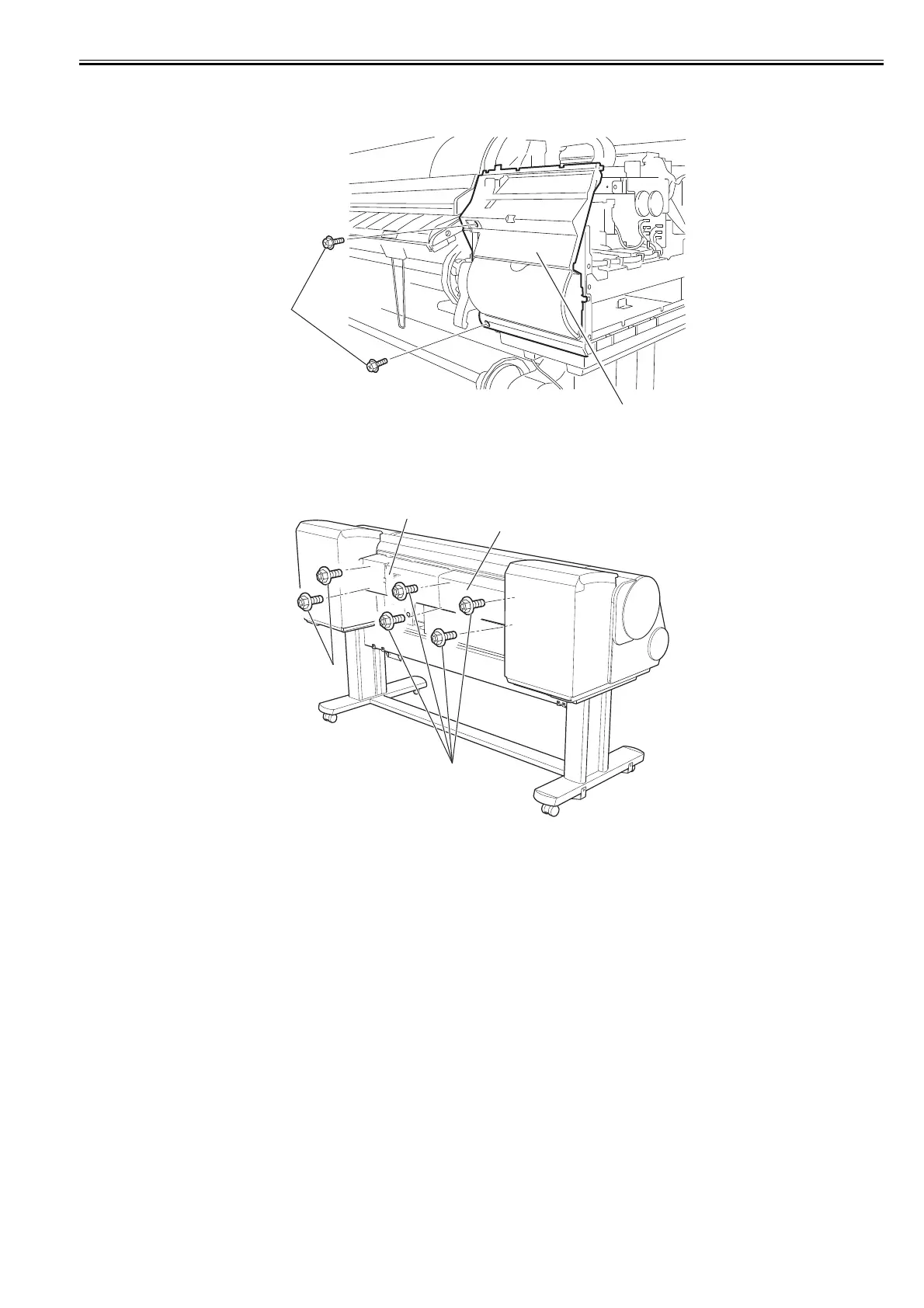

F-4-15
g) Left rear cover/Right rear cover
Removing the left rear cover/right rear cover
1) To remove right rear cover [1], remove four screws [2].
2) To remove left rear cover [3], remove the right rear cover and two screws [4].
F-4-16
[1]
[2]
[1]
[3]
[2]
[4]
