Chapter 4
4-10

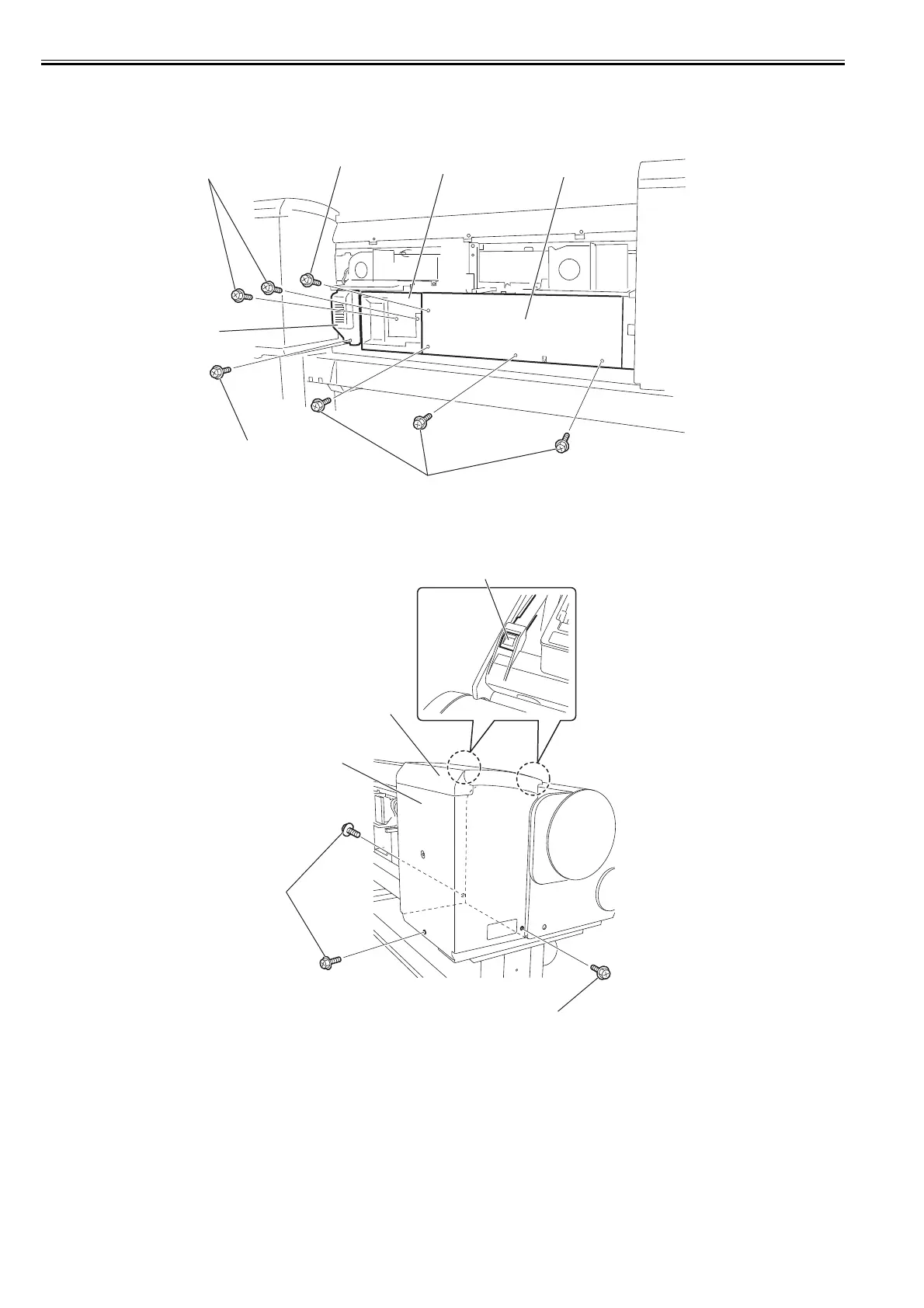

h) Left lower rear cover/Right lower rear cover, filter cover
Removing the left lower rear cover/right lower rear cover and filter cover
1) To remove right lower rear cover [1], remove four screws [2].
2) To remove left lower rear cover [3], remove two screws [4].
3) To remove filter cover [5], remove screw [6].
F-4-17
i) Left/Right ink tank cover units
Removing the left/right ink tank cover units
1) To remove ink tank cover unit [1], remove three screws [2], open tank cover [3] and remove two hooks [4].
F-4-18
[1]
[3]
[2]
[4]
[6]
[2]
[5]
[2]
[2]
[4]
[1]
[3]
