j) Left/Right ink tank units

Opening the left/right ink tank units

1) To open the left/right ink tank units, remove left/right circle covers (L), left/right circle covers (S), left/right side covers, upper left/right covers and left/right ink

tank cover units.

2) Remove two screws [1].

3) Remove screw [2] from the support plate at inner side of the printer.

4) Remove screw [4] from the support plate [3] at outer side of the printer, loosen screw [5] and slide the support plate to open the ink tank unit.

(The following figure is the case of the left ink tank unit.)

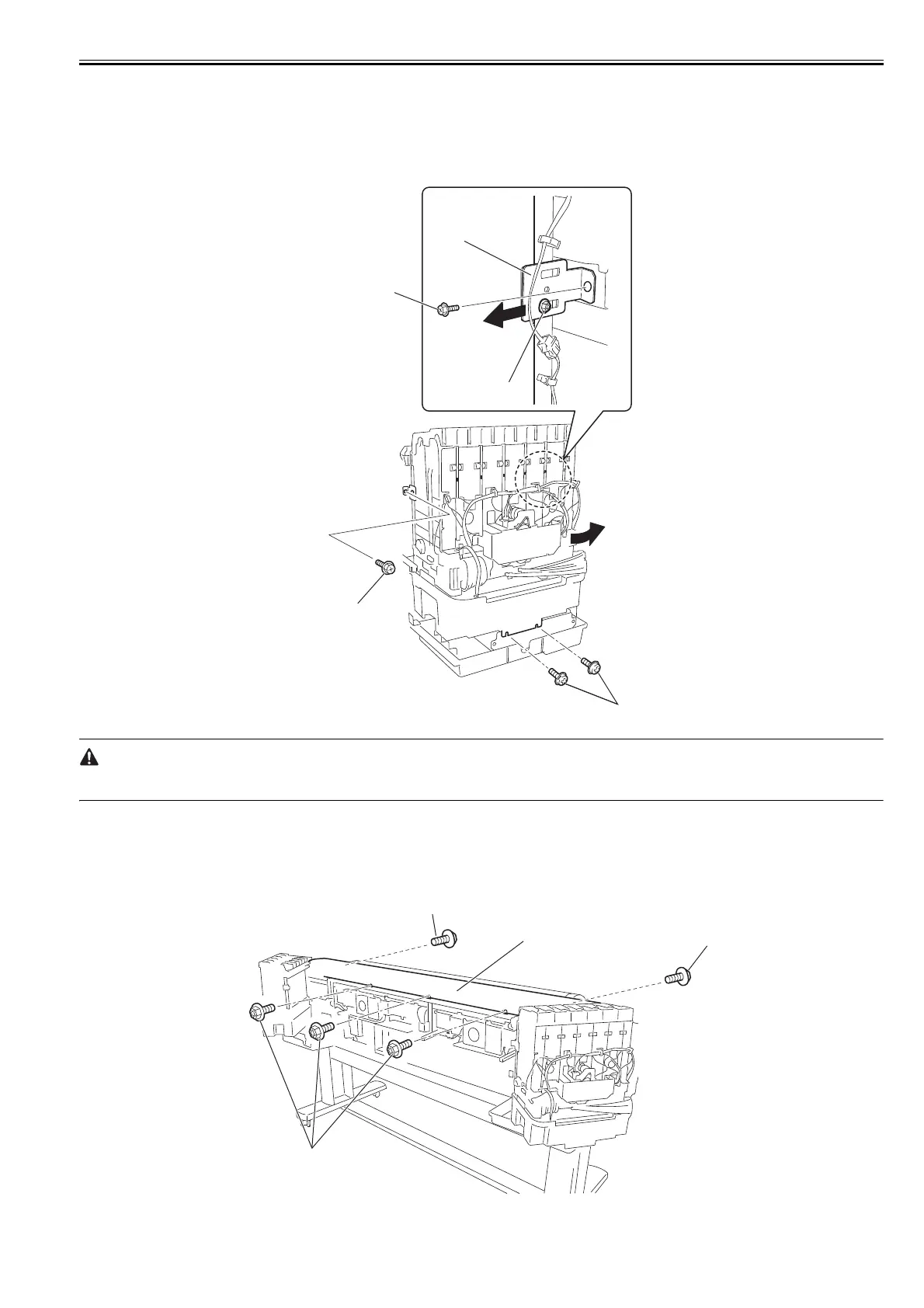

F-4-19

The ink tank units will lock themselves when they are opened to the maximum allowable angle.

Be sure to open the ink tank unit to their maximum allowable angle to prevent them from turning over.

k) Upper rear cover

Removing the upper rear cover

1) To remove the upper rear cover, remove left/right circle covers (L), left/right circle covers (S), left/right side covers, upper left/right covers, left/right rear covers

and left/right ink tank cover units and then open the left/right ink tanks.

2) Remove two screws [1] on front side of the printer and three screws [2] on the rear side, and then remove upper rear cover [3].

F-4-20

[1]

[2]

[5]

[3]

[4]

[1]

[2]

[3]
