b) Reinstalling ink tank units

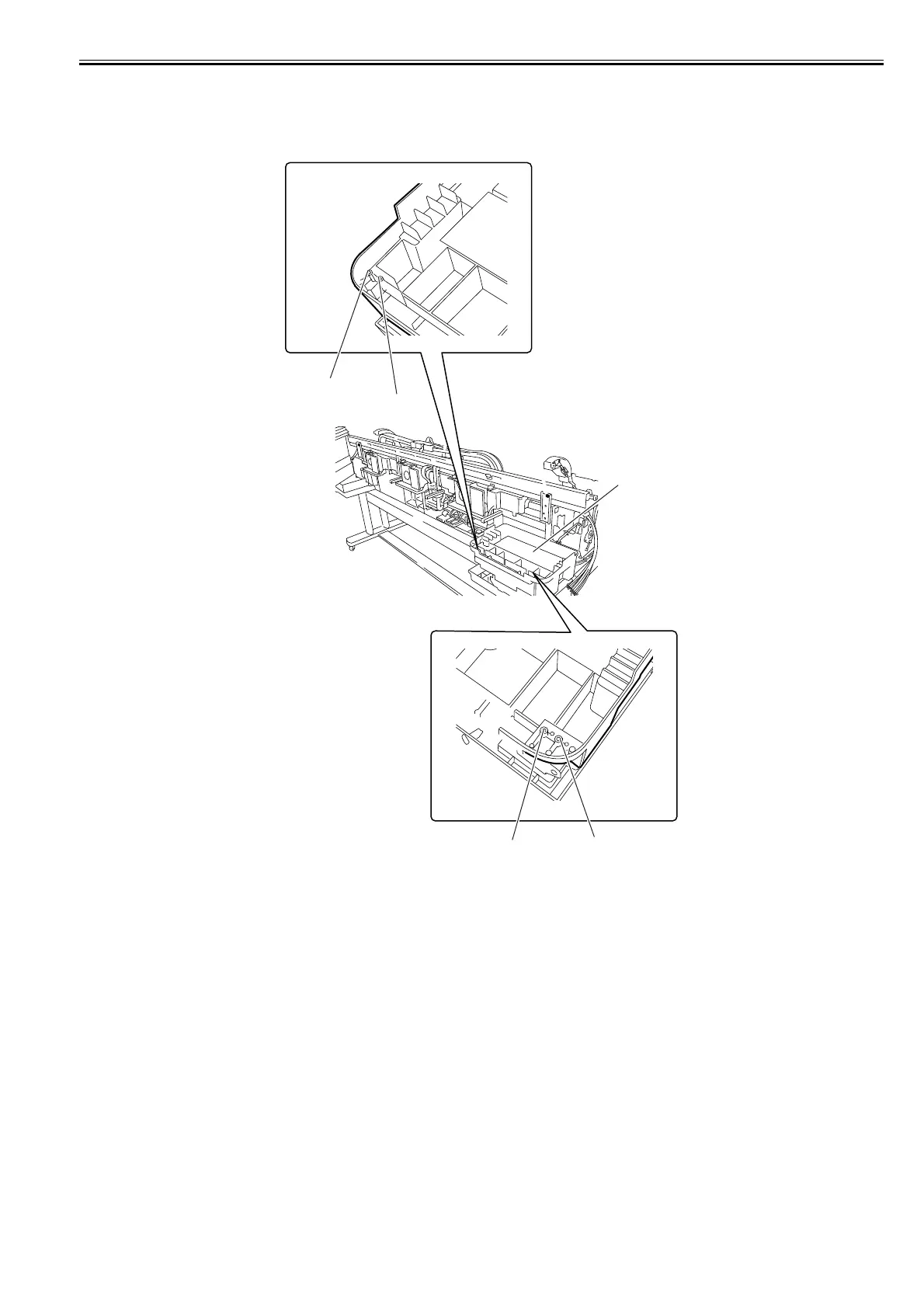

The left and right ink tank units are installed to different positions at ink supply mount unit [1].
Install the right ink tank unit at screw position [2].
Install the left ink tank unit at screw position [3].
(Installing position of each ink tank units are inner side of the printer.)
F-4-43
[3]
[3]
[2]
[2]
[1]
