c) Removing the valve motor unit
1) To remove the valve motor unit, remove the ink tank cover unit.
2) Remove three screws [1], two connectors [2] and bearing [3], and then remove valve motor unit [4].

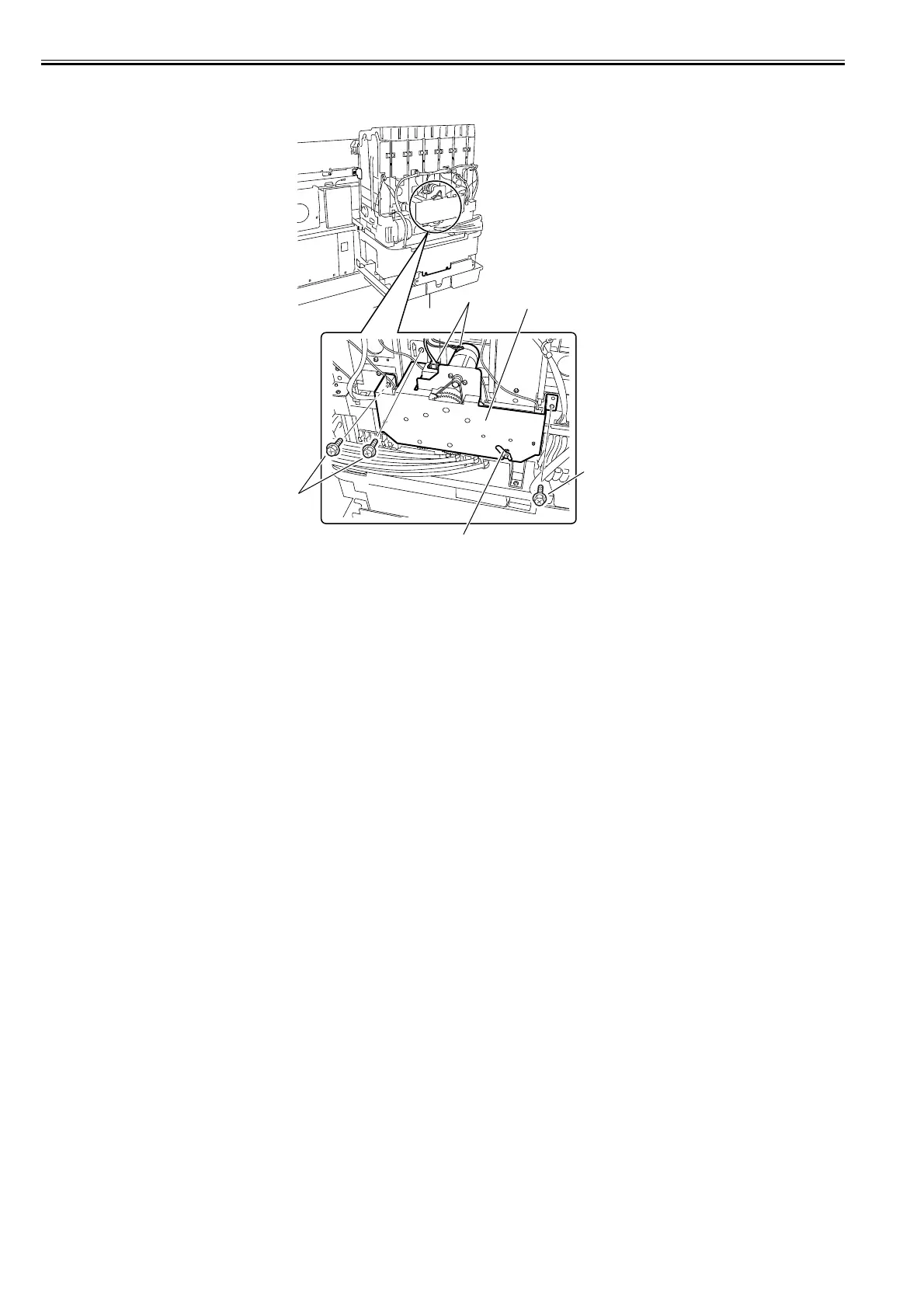

F-4-44
[1]
[1]
[3]
[2]
[4]
