CanyCom CM 2103 - Differential Oil and Knuckle Oil

- 36 -
Maintenance
3. Replace drain plug.
4. Open the oil plug and pour the designated oil into oil part.
7.4.3 Differential Oil and Knuckle Oil

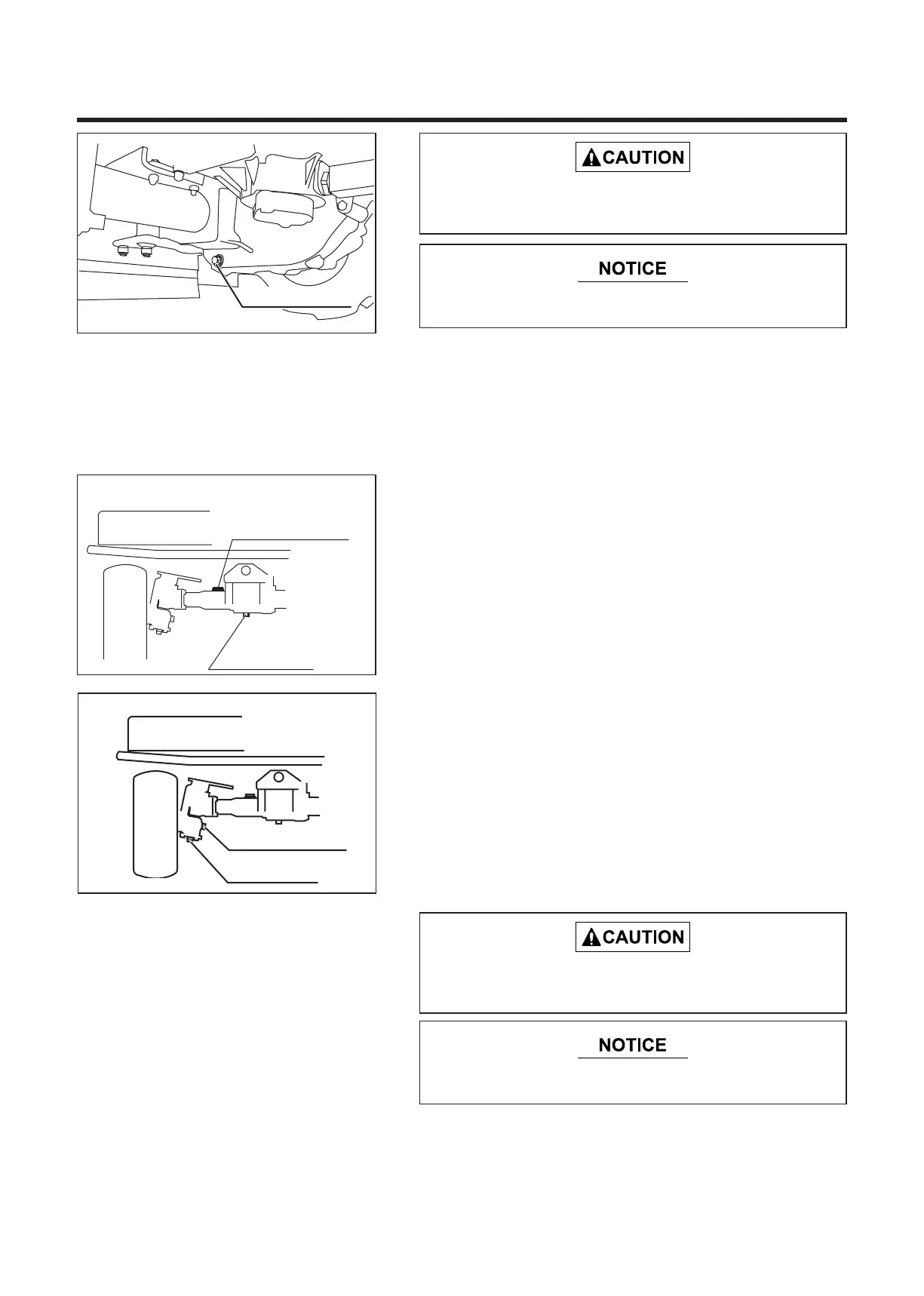

Drain plug
5314M-0704-040E
Differential oil
Lubricating plug
Drain plug
5310M-0704-050E
* Avoid contact with high temperature oil to avoid
burns.
* Dispose of the drained oil properly.
Inspecting Oil
1. Remove the lubricating plug.
2. Visually check oil level and color. When oil level is too low
or oil is dirty, add or change oil.
Oil to be used: See Page 32
3. Replace the lubricating plug.
Replacing Oil
1. Position a suitable container to collect drained oil under
drain plug.
2. Remove the drain plug and drain oil.
Note:
Oil will drain faster after lubricating plug is removed.
3. Replace the drain plug.
4. Open the oil cap and pour oil pour proper amount of
designated oil into oil port.
Drain plug
Knuckle oil
Lubricating plug
5310M-0704-061E
* Avoid contact with high temperature oil to avoid
burns.
* Dispose of the drained oil properly.
