7.5 Lubrication and Greasing
* Insufficient or improper greasing and lubrication can cause seizures or
rusting, and prevent smooth turning and operation.

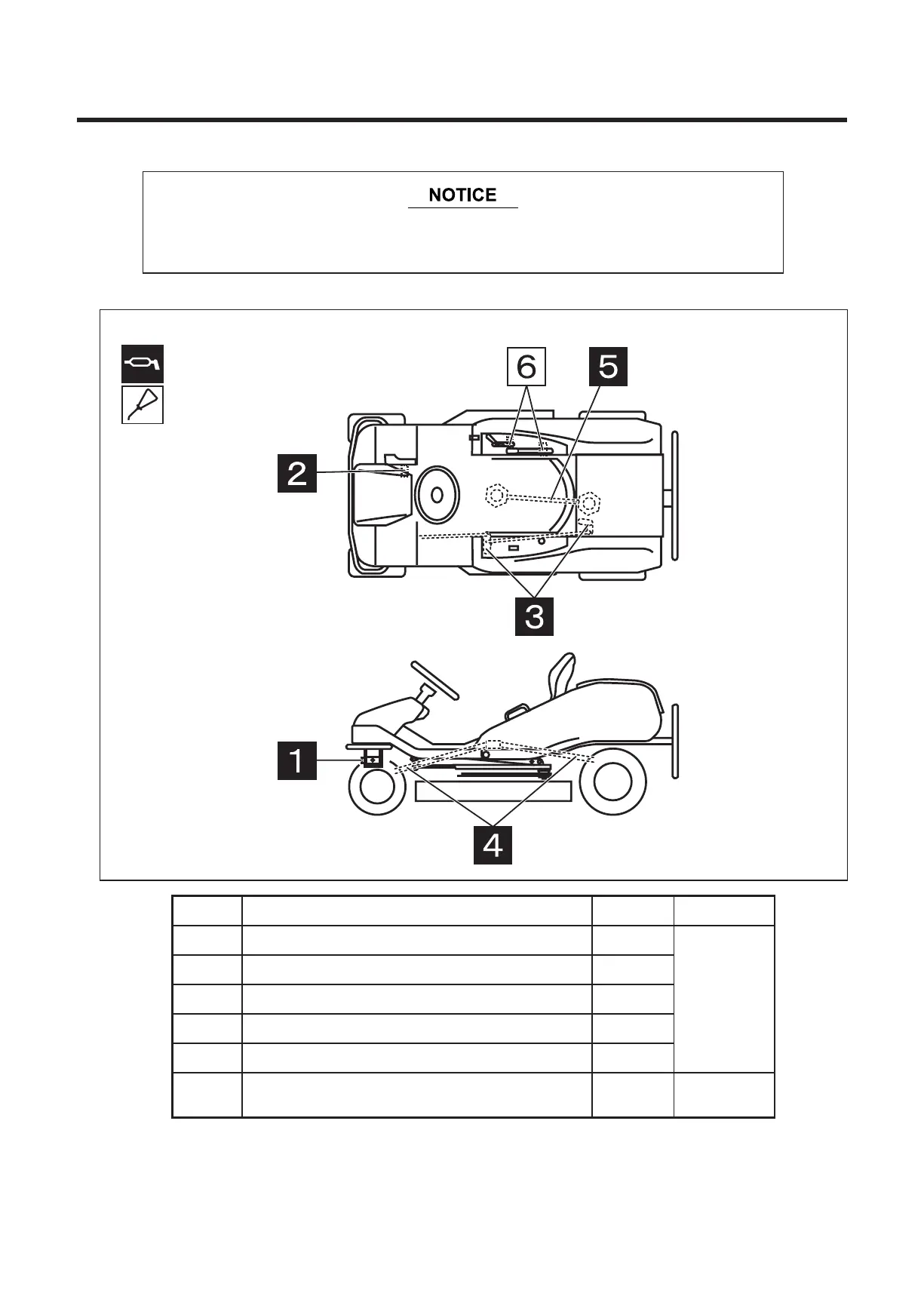

Lubricate the areas indicated by arrows. Oil to be used: See Page 32
Lubrication area Quantity Type
1 Front axle mounting pin section 1
Grease
2 HST pedal fulcrum 1
3 Steering rod fulcrum(4WS) 2
4 Drive shaft(4WD) 2
5 Cutting blade drive shaft 1
6
Auxiliary speed change lever, Cutting blade
clutch lever fulcrum
2 Oil
5314M-0705-010E
When using a manual type grease pump, push its handle five to six times. When resistance
becomes heavy immediately stop pushing. When using a pneumatic type grease pump,
pumping for two to three seconds is enough.
