CanyCom CMX186 - Adjusting Drive Pedal

Operation
-22-
4
5332M-0401-100E
Pedal (Forward)
Drive Pedal
Bolts

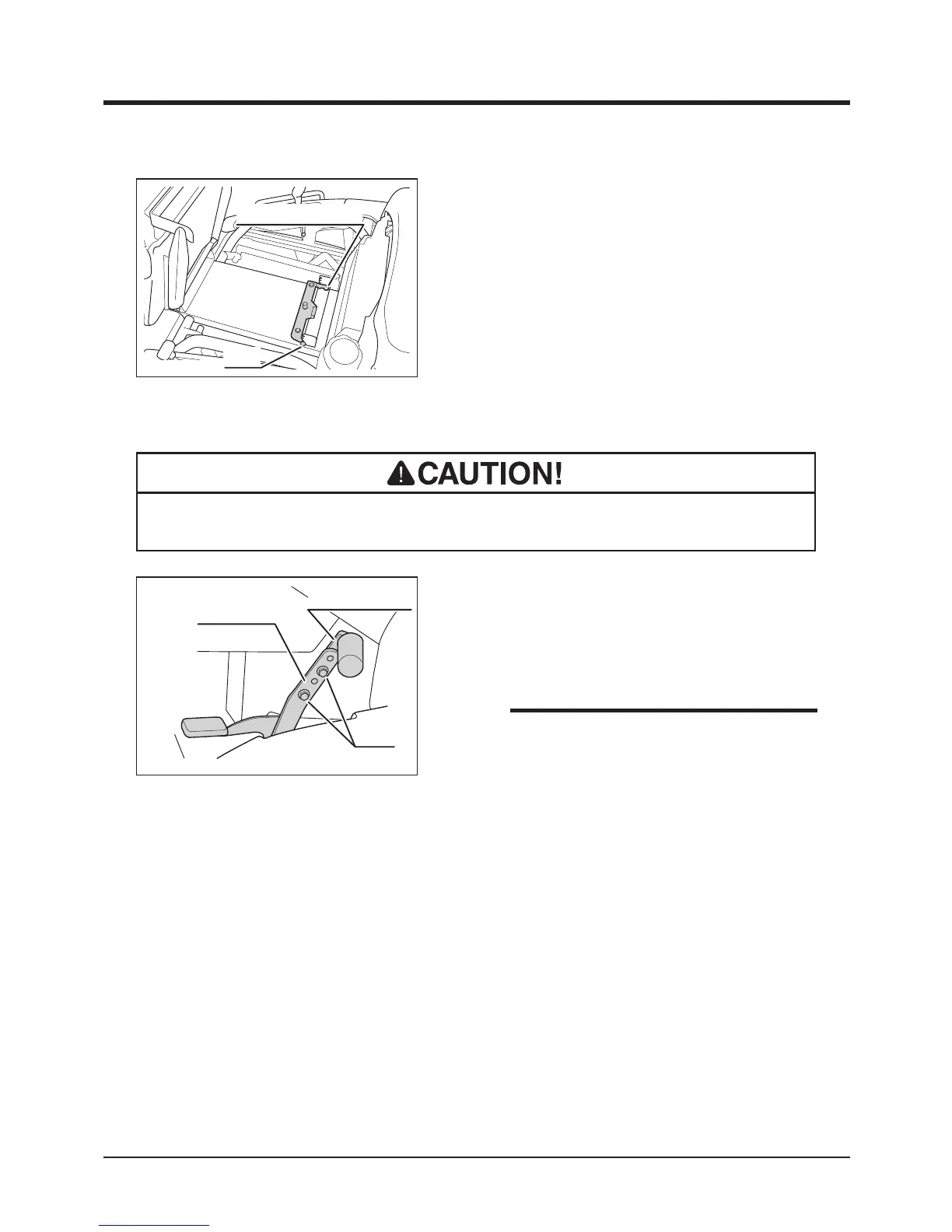

Adjusting Drive Pedal
• Always check if the drive pedal is xed rmly after adjusting.
1. Remove two bolts fixing forward pedal with
drive pedal.
2. Adjust the pedal (forward) into the desired
position and x with bolts.
• Drive pedal can be adjusted in 3 positions
and angle.
NOTE
5335M-0401-010E
Seat Switch Bracket
Bolts
3. Remove 2 bolts xing seat switch bracket.
4. Move seat switch bracket into desired
position and x with bolts rmly.
5. Pull safety pin back and lower the seat.
