-61-
Maintenance 5

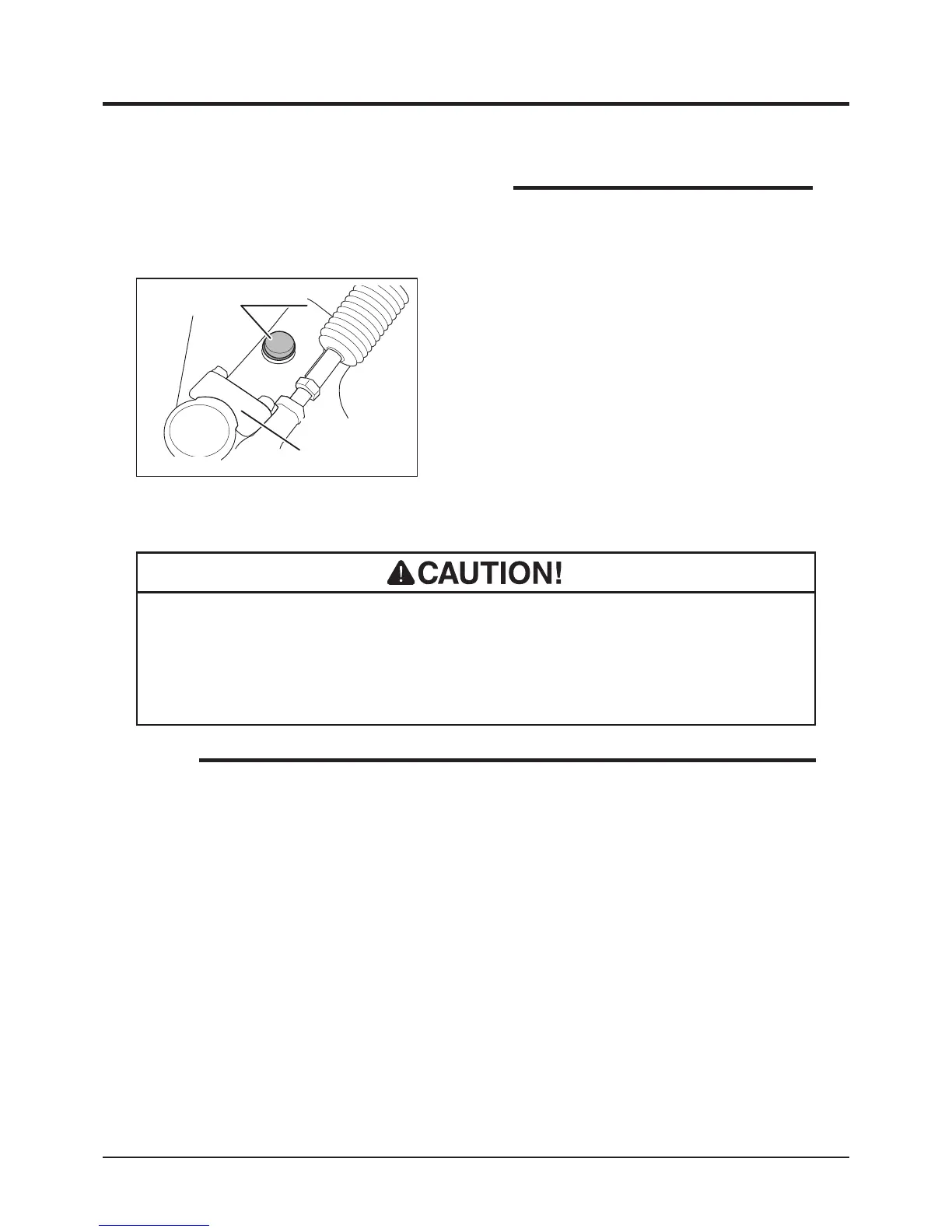

• Drain plug for the right front knucle is on
the back side of the front axle.
NOTE
5347M-0507-090E
Filler Plug
Front Wheel
Axle (Right)
5. Install both drain plugs back in place.
6. Remove right front step.
7. Remove oil ller cap.
8. Fill specied amount of oil into ller.
9. Install ller plug back in place.
10. Install right front step.
HST (Hydrostatic Transmission) Fluid
• To obtain correct reading, check HST uid level before starting, or wait until HST
uid cools off sufciently. Hot HST uid expands in volume and does not provide
correct reading.
• When oil is sufficiently cooled and is at the [MIN] level, its amount is sufficient.
• Do not exceed beyond [MAX] level. HST fluid may expand and overflow.
• Change HST oil once a year or every 500 hours, whichever comes rst.
• Oil to use and capacity: Page 46.
NOTE
• HST is a very delicate mechanism, and contamination of ten-micron-order
particles can damage it. When it is necessary to work on an HST, work in a
clean and dust-free environment, and make sure dust or dirt do not enter its
circuit.
To Next Page
