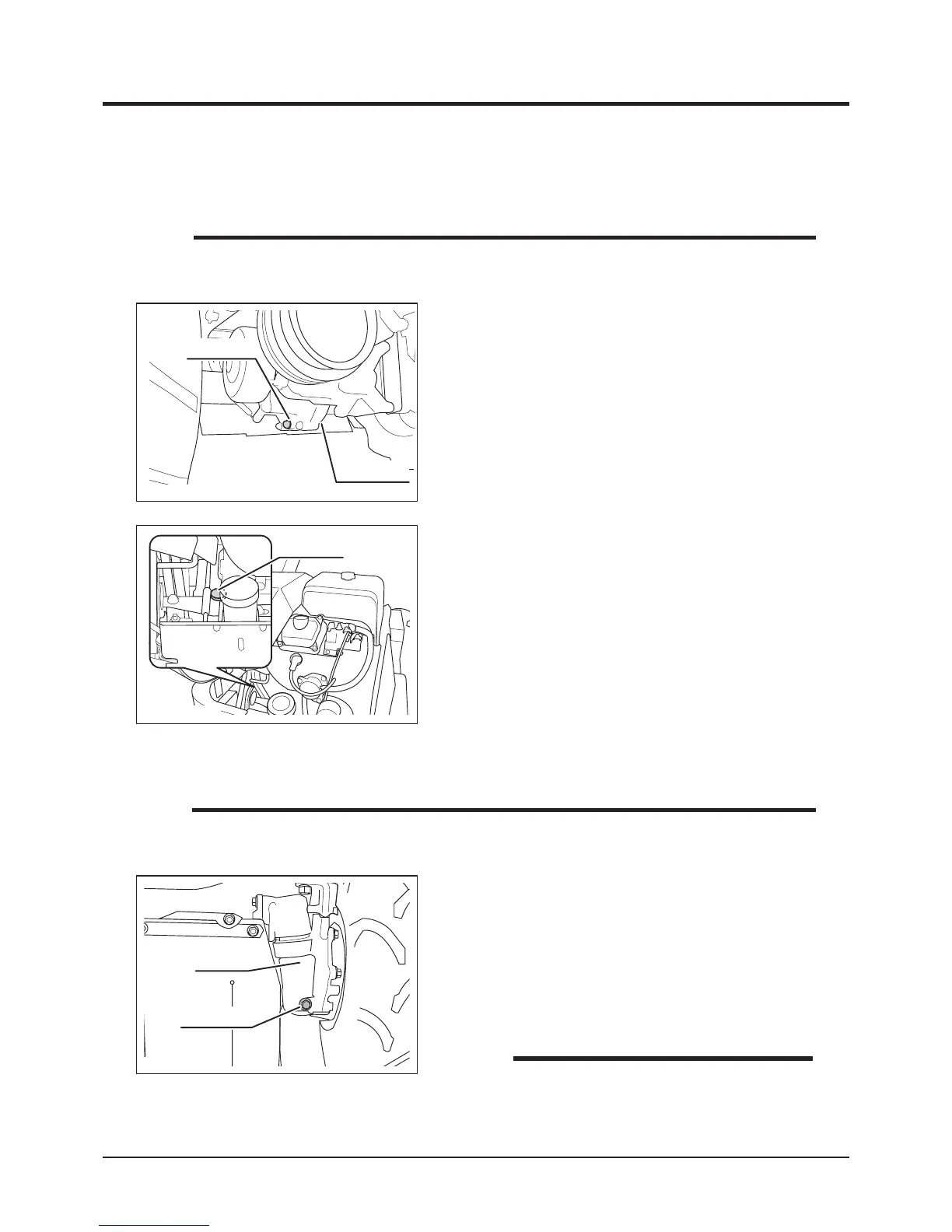

Front Axle Oil (AWD models)
• Oil to use and capacity: Page 45.
NOTE
5332M-0507-100E
Drain Plug
Knuckle
1. Park machine on level ground.
2. Have an appropriate oil drain pan.
3. Remove drain plug on the left front knuckle
to drain oil.
4. Remove drain plug on the right front knucle
to drain oil as well.
Transmission Oil
• Oil to use and capacity: Page 45.
NOTE
5332M-0507-040E
Drain Plug
Check Bolt
1. Park machine on level ground.
2. Have an appropriate oil drain pan.
3. Remove transmission oil drain plug to drain
oil.
4. Install drain plug back in place.
Filler Cap
5347M-0507-020E
5. Open engine hood.
6. Remove transmission oil ller cap.
7. Remove check bolt.
8. Fill specied amount of correct oil into ller,
up to check bolt hole.
9. Put check bolt back in place.
10. Put ller plug back in place.
11. Close engine hood.
• AWD Models: CMX227H, CMX186H
