Maintenance
-40-
5

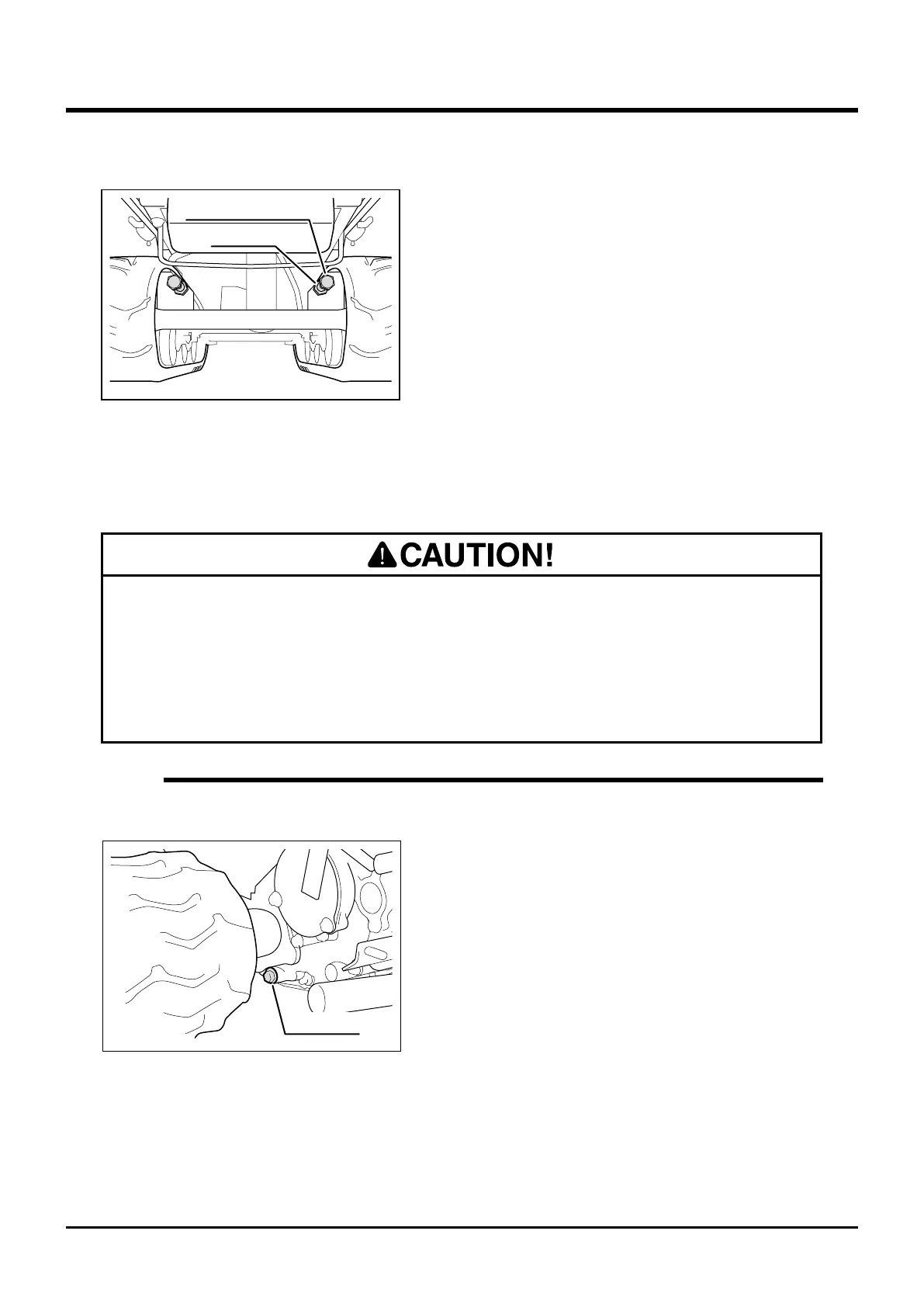

Adjusting
1. Jack up machine so that it is parallel to the
ground.
2. Loosen lock nut under machine.
3. Adjust track tension bolt so that the clear
-
ance between track and center roller (clear-
ance A) at the furthest is between 10 and
15mm.
4. Tighten lock nut
5. Lower machine.
Transmission Oil
1. Park machine on level ground.
2. Have an appropriate drain pan.
3. Remove fender.
4. Remove drain plug to drain oil.
5. Install drain plug.
• Make certain to ll transmission with the correct grade of oil to the specied
level. Insufcient amount or wrong grade of oil reduces performance and may
cause permanent damage to transmission.
• Dispose of drained oil properly.
• Recommended Oil and Quantity: see "List of Fluids and Lubricants" (page 36)
NOTE
Track Tension Bolt
Lock Nut
3577M-0506-010US
Drain Plug
3577M-0506-020US
To Next Page
