CanyCom SC45 - Controls and Components; Name and Function of Controls

-9-
Controls and Components 2
Name and Function of Controls
3577M-6107-0201-010
1
2
3
3
4
6
8 9
10
10
5
7
Front
Rear

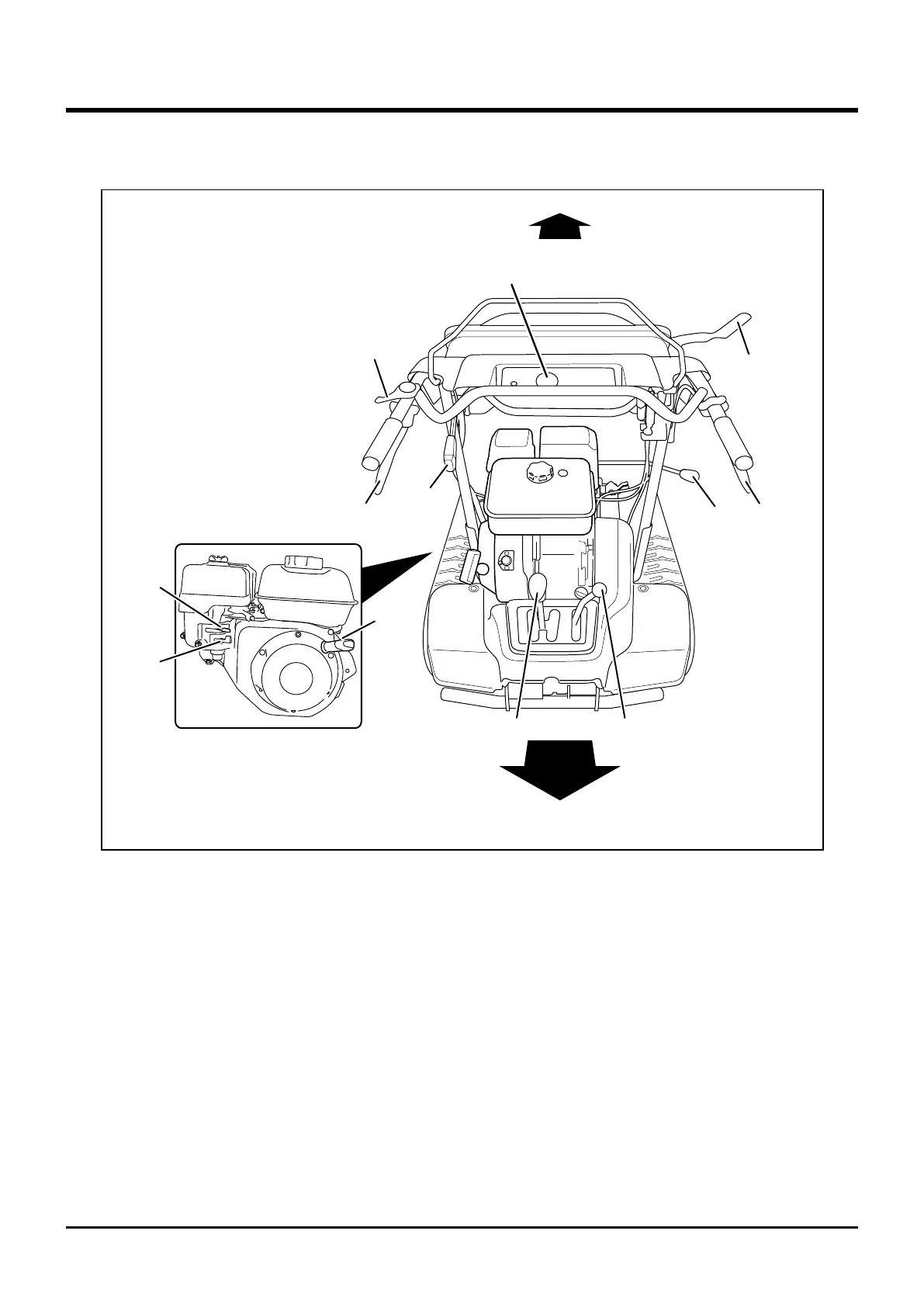

1 Throttle Lever . . . . . . . . . . . . Throttle Lever is used to control engine speed.
2 Drive Clutch Lever . . . . . . . . Drive Clutch Lever is used to engage or disengage drive
clutch.
3 Side Clutch Lever . . . . . . . . Side Clutch Lever is used to steer machine by engaging
side clutch.
4 Main Switch . . . . . . . . . . . . . Main Switch is used to start or stop engine.
5 Choke Lever . . . . . . . . . . . . . Choke Lever is used to help start engine by closing choke
valve.
