-45-
Maintenance 5

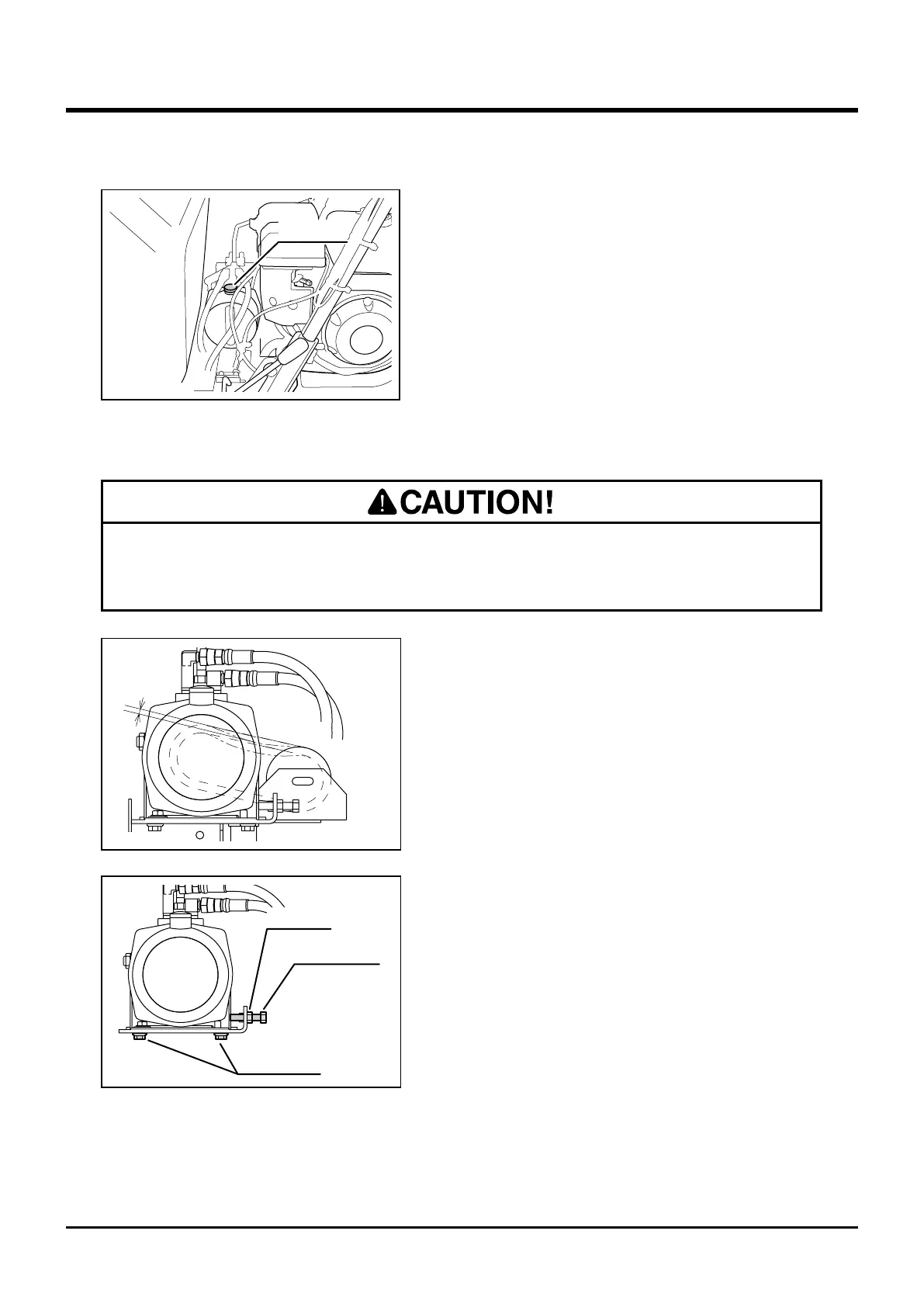

1. Remove ller cap. Fill uid.
2. Put ller cap back in place rmly.
3. Run engine for a while to circulate hydraulic
uid.
Filling
Hydraulics Belt
1. Remove belt cover.
2. Inspect drive belt tension. Push on the
middle of hydraulics belt with a nger to see
if its sag A is about 10mm. If not, adjust.
3. Visually inspect drive belt for damages. If
damaged, contact your dealer to replace it.
4. Install belt cover.
• Adjust belt tension properly. Inproperly tensioned belt may reduce performance
and its service life.
A
3571M-0508-040E
Inspecting
1. Loosen four mount bolts.
2. ILoosen lock nut.
3. Adjust belt tension with adjust nut so that it
sags about 10mm when the middle of the
belt is pushed by a nger.
4. Tighten lock nut.
5. Tighten four mount bolts.
3574M-0507-040E
Lock Nut
Mount Bolts
Tension Bolt
Adjusting
3577M-0507-020US
Filler Cap
To Next Page
