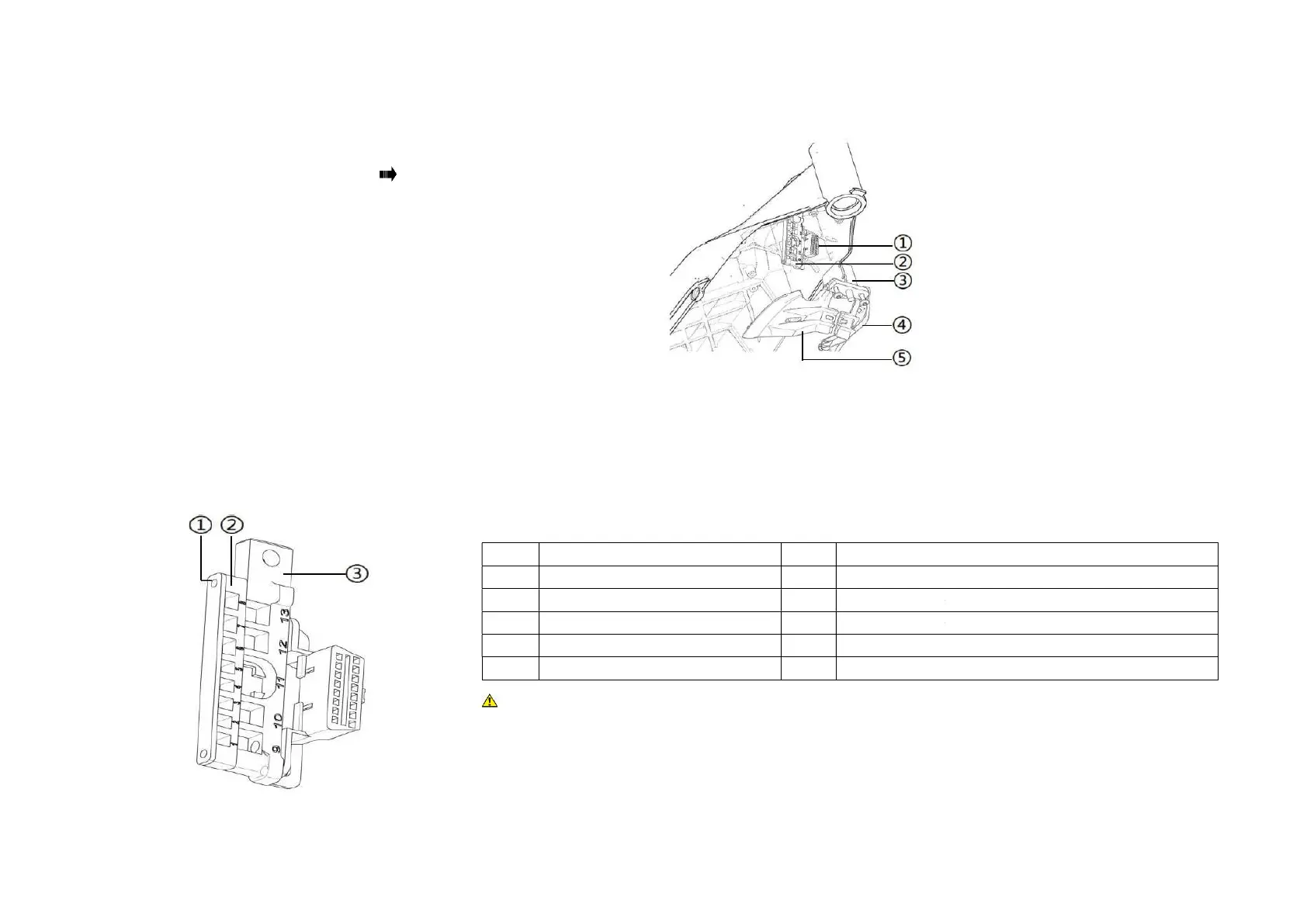

9. Service Chamber
1. OBD port
2. Integrated terminal block assembly ( 22)
3. Electronic steering lock
4. Left service chamber cover
5. Right service chamber cover
Integrated terminal block assembly
1. Locking cover of integrated terminal block
2. Auxiliary support of integrated terminal block
3. Main support of integrated terminal block
Page 24 of 61
Factory wiring definition of integrated terminal block assembly:
1 Front brake 6
Use 6 for wiring in L1e state or
2 Rear brake 7 -----------
3 Right turn indicator 9
Control cable of right brake lever
4 Left turn indicator 10
Control cable of left brake lever
5 External wiring of the meter 11
13 Headlamp 12
Warning: The OBD port, different from other products, should be connected by a dedicated
CAN cable. Do not improperly connect it, because improper connection may damage the
controller.
Factory wiring definition of integrated terminal block assembly:
Use 6 for wiring in L1e state or
off-road state
Control cable of right brake lever
Control cable of left brake lever
Warning: The OBD port, different from other products, should be connected by a dedicated
CAN cable. Do not improperly connect it, because improper connection may damage the
