Battery Pack Replacement -- Removal

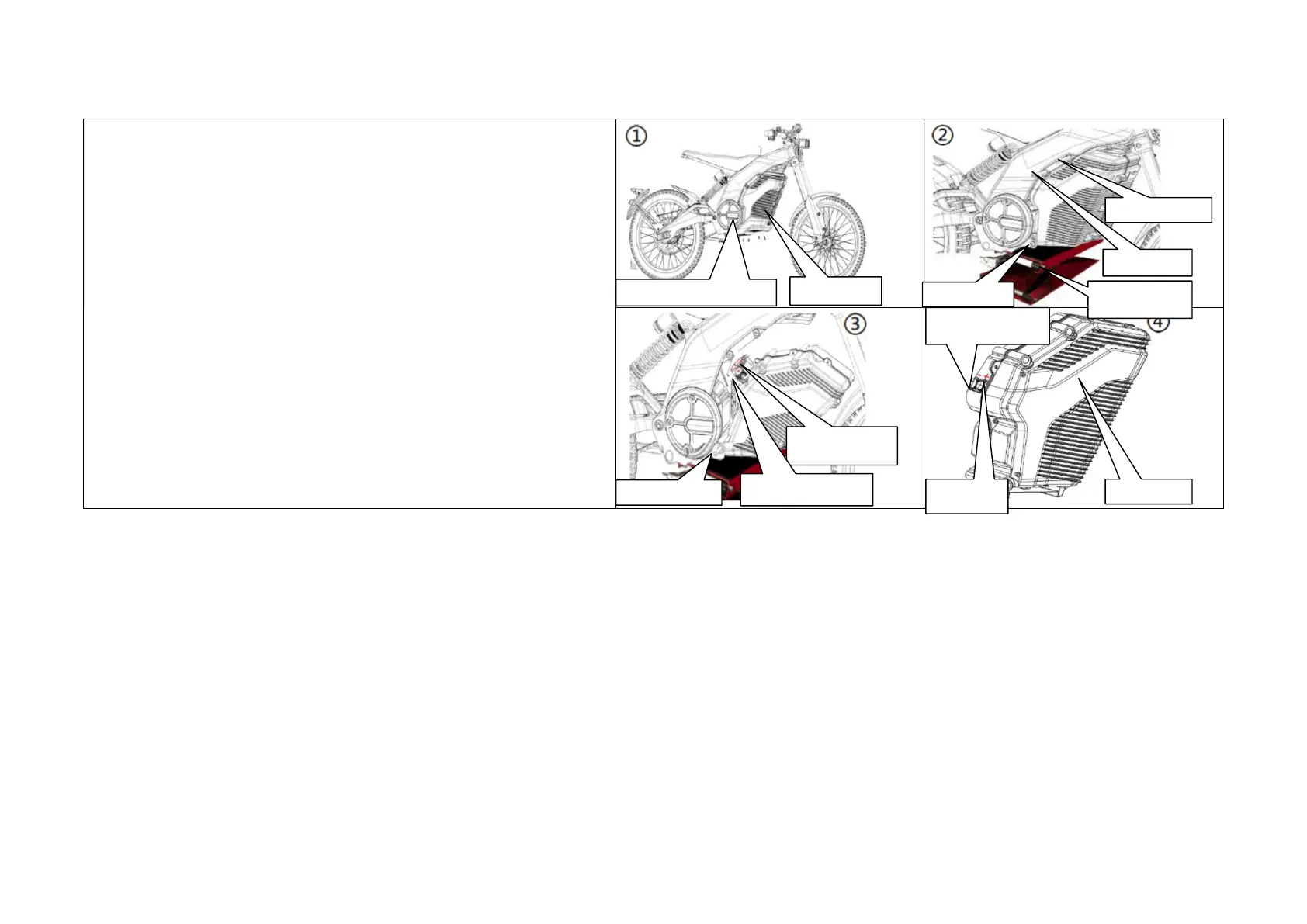

Removal steps
①● Remove the battery box guard plate.
②● Raise the lifting table up to the battery and remove the battery
shafts 1 and 2.
● Loosen the battery shaft 3.
③ Lower the lifting platform as shown in Figure 3.
● Make sure the battery switch is turned off and unplug the positive
and negative discharge cables.
● Remove the battery shaft 3.
● Lower the lifting platform again to proper position and stabilize
the motorcycle.
● Turn the direction of the lifting platform and pull it out of the
motorcycle.
④ Take down the battery pack and place it gently in the special
packaging box;
Battery shaft 3
Battery box guard plate
Lifting platform
Battery shaft 3
Battery shaft 2
Battery shaft 1
Battery pack
Discharge cathode
holder
Battery pack
cable
Unplug the anode
cable
Discharge
anode holder
