Battery Pack Replacement -- Assembly
Installation steps
① Lift up the lifting platform to lift the motorcycle stably.
● Put the battery on the frame and lifting platform, and install the
battery shaft 3 in the position aligning with the left and right shaft holes
to stabilize the battery.
② Plug the anode and cathode cables, straighten out the route of the
anode and cathode cables, and prevent the battery from rising to
interfere with or squeeze the cables.
③ Raise the lifting platform until the battery rises into the frame,
install the battery shafts 1 and 2 in alignment with the shaft holes;
● Power on and make a trial run to check whether the battery is
normal.
● Tighten the fastening bolts of the three batter shafts.
④ Assemble the battery box guard plate.

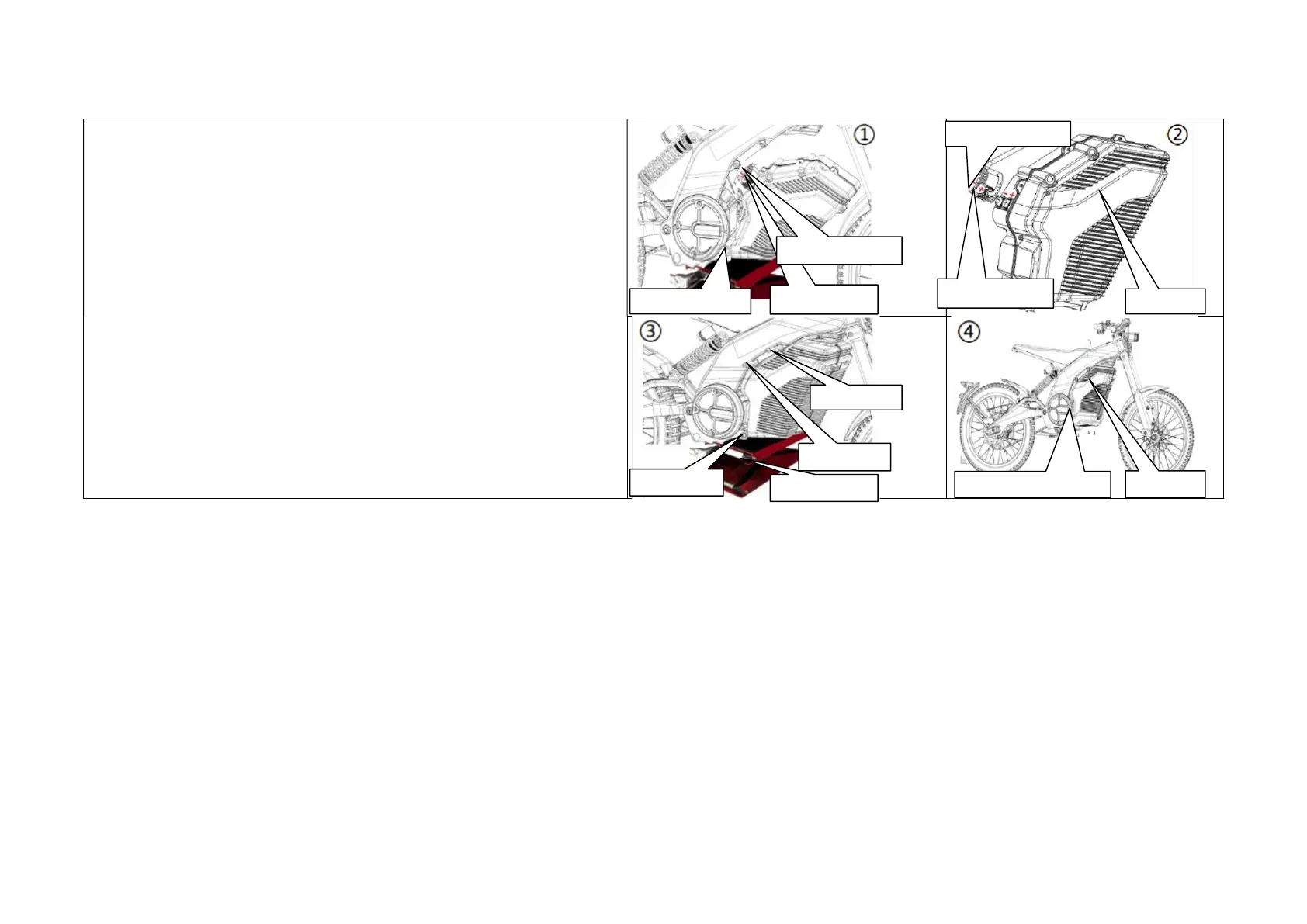

Battery shaft 3
Plug in anode
Plug in cathode cable
Install battery shaft 3
Lifting platform
Battery pack
Plug in cathode
Plug in cathode cable
Battery shaft 2
Battery shaft 1
Battery box guard plate
Battery pack
