Brake Shoe Inspection
Warning: Worn brake shoe will reduce the braking effect.
The excessively worn and cracked brake shoes shall be replaced immediately.
After replacing the brake shoe, check whether the brake lever can effectively press the
stroke of the brake lever is correct.
If the brake shoe with deviation from the original one is used, it will not be guaranteed to be consistent with the original
motorcycle will no longer conform to the delivery condition and the manufacturer's warranty will be invalid.

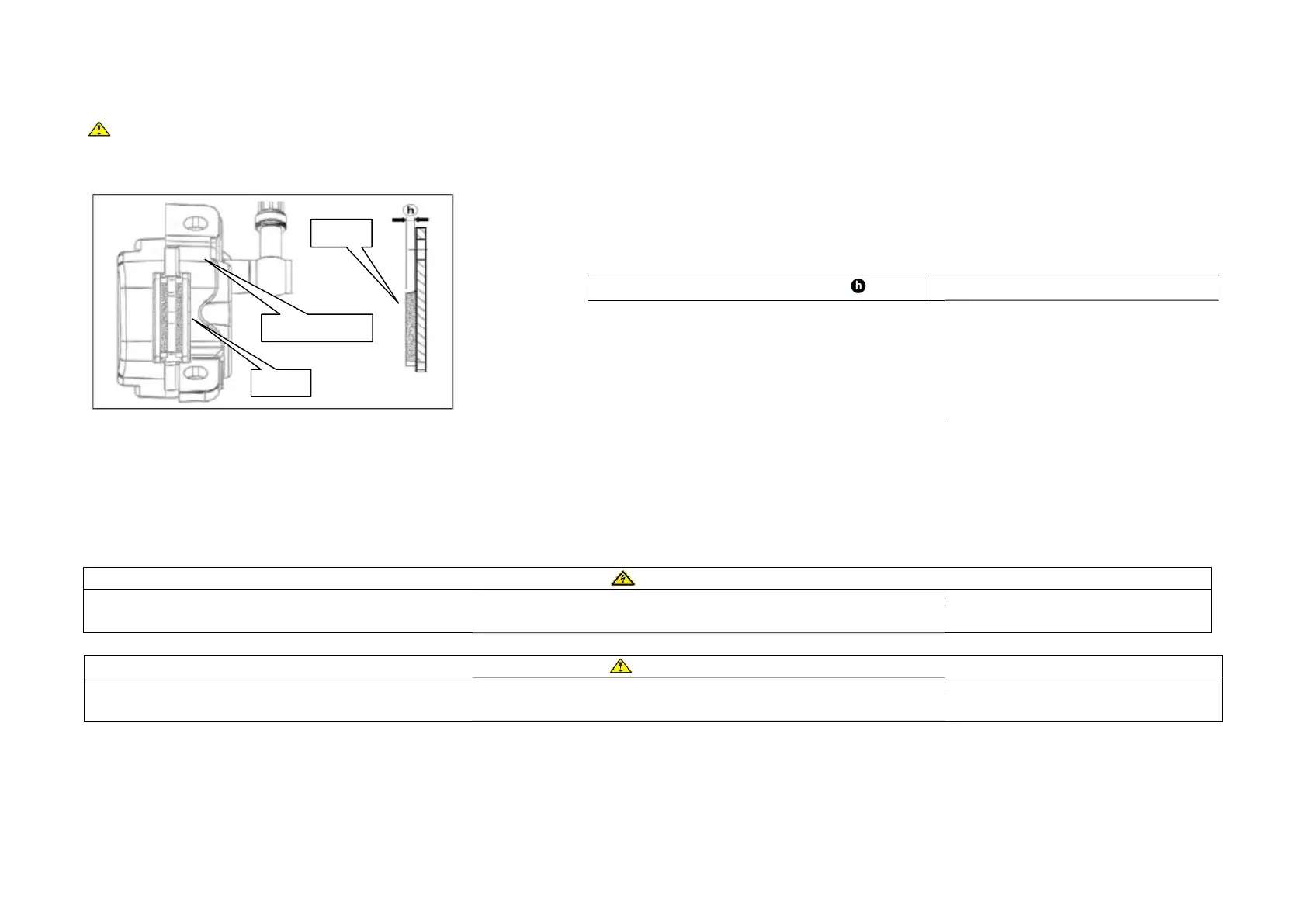

Friction disc
Friction disc
Brake lower pump assembly
Page 48 of 61
Warning: Worn brake shoe will reduce the braking effect.
The excessively worn and cracked brake shoes shall be replaced immediately.
Check the thickness of the brake shoe and whether it is worn to the minimum
thickness.
●
Check the minimum thickness of brake shoe of the brake lower pump.
Minimum thickness of brake shoe
● Check the brake shoe for damage and crack.
If damaged and cracked, it shall be replaced.
●
Check whether the brake shoe is worn eccentrically.
If worn eccentrically or unilaterally, it shall be replaced.
●
In case of oil leakage, further check and replace the brake pump body and oil
cylinder.
●
Clean the stained brake shoe and replace it if stained severely.
NOTE
After replacing the brake shoe, check whether the brake lever can effectively press the
brake disc against the brake shoe. Check whether the free
Warning
If the brake shoe with deviation from the original one is used, it will not be guaranteed to be consistent with the original
motorcycle will no longer conform to the delivery condition and the manufacturer's warranty will be invalid.
Check the thickness of the brake shoe and whether it is worn to the minimum
Check the minimum thickness of brake shoe of the brake lower pump.
0.8mm
Check the brake shoe for damage and crack.
Check whether the brake shoe is worn eccentrically.
If worn eccentrically or unilaterally, it shall be replaced.
In case of oil leakage, further check and replace the brake pump body and oil
Clean the stained brake shoe and replace it if stained severely.
brake disc against the brake shoe. Check whether the free
If the brake shoe with deviation from the original one is used, it will not be guaranteed to be consistent with the original
license. In this case, the
