CaptiveAire DW - Double Wall Offset Distance

16
Double Wall Offset Distance

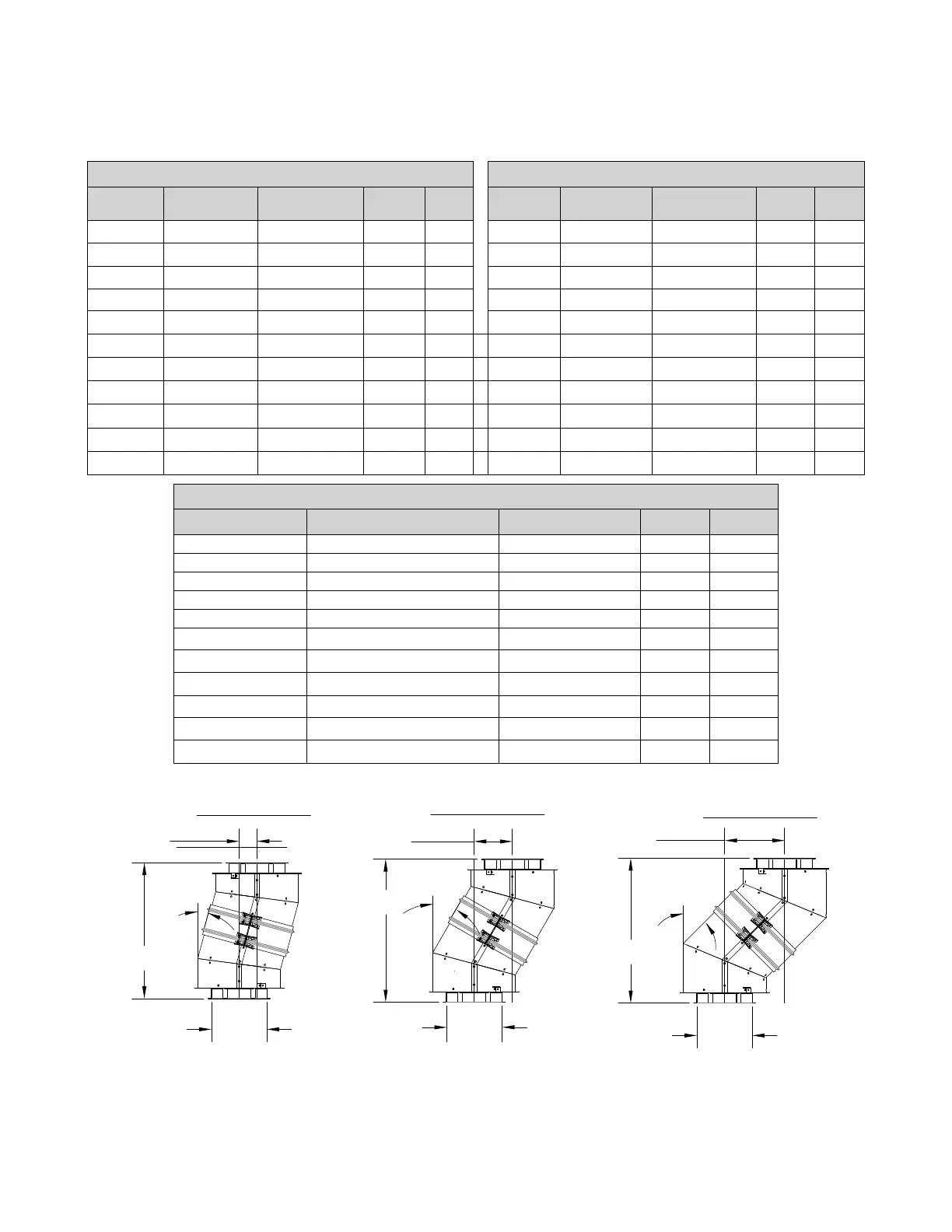

Figure 7 - Offset Details
Table 4 - Offset Distance
Offset Center Line Distance 15 Degree Elbows Offset Center Line Distance 30 Degree Elbows
Diameter
Flange
Diameter
Part Number HT 1 CL 1
Diameter
Flange
Diameter
Part Number HT 1 CL 1
8" 9" DW0815DWASY 19-3/4" 2-1/2" 8" 9" DW0830DWASY 20-7/8" 5-1/2"
10" 11" DW1015DWASY 20-3/8" 2-5/8" 10" 11" DW1030DWASY 21-7/8" 5-7/8"
12" 13" DW1215DWASY 20-7/8" 2-3/4" 12" 13" DW1230DWASY 22-7/8" 6-1/8"
14" 15" DW1415DWASY 21-3/8" 2-7/8" 14" 15" DW1430DWASY 23-7/8" 6-3/8"
16" 17" DW1615DWASY 21-7/8" 2-7/8" 16" 17" DW1630DWASY 24-7/8" 6-5/8"
18" 19" DW1815DWASY 22-3/8" 3" 18" 19" DW1830DWASY 25-7/8" 7"
20" 21" DW2015DWASY 22-7/8" 3" 20" 21" DW2030DWASY 26-7/8" 7-1/8"
22" 23" DW2215DWASY 23-3/8" 3-1/8" 22" 23" DW2230DWASY 27-3/8" 7-3/8"
24" 25" DW2415DWASY 23-7/8" 3-1/8" 24" 25" DW2430DWASY 28-7/8" 7-3/4"
30” 31” DW3015DWASY 25-1/2” 3-3/8” 30” 31” DW3030DWASY 31-7/8” 8-1/2”
36” 37” DW3615DWASY 27-1/8” 3-1/2” 36” 37” DW3630DWASY 34-7/8” 9-3/8”
Offset Center Line Distance 45 Degree Elbows
Diameter Flange Diameter Part Number HT 1 CL 1
8" 9" DW0845DWASY 21" 8 3/4"
10" 11" DW1045DWASY 22-1/2" 9-3/8"
12" 13" DW1245DWASY 23-7/8" 9-7/8"
14" 15" DW1445DWASY 25-3/8" 10-1/2"
16" 17" DW1645DWASY 26-3/4" 11"
18" 19" DW1845DWASY 28-1/8" 11-5/8"
20" 21" DW2045DWASY 29-1/2" 12-1/4"
22" 23" DW2245DWASY 30" 12-7/8"
24" 25" DW2445DWASY 32-3/8" 13-3/8"
30” 31” DW3045DWASY 36-5/8” 15-1/4”
36” 37” DW3645DWASY 40-7/8” 17”
15 DEGREE ELBOW
CL 1.
DIA.
HT 1.
CL 1.
DIA.
HT 1.
30 DEGREE ELBOW
CL 1.
DIA.
HT 1.
45 DEGREE ELBOW
15°
30°
45°
