CaptiveAire DW - Double Wall Vertical Ceiling Support

32
Double Wall Vertical Ceiling Support
1. The vertical ceiling support system is used when a wall support cannot be used or installed.
2. After all-thread has been installed, install Unistrut with provided 1/2” hardware. Install floor support
plates to Unistrut with 3/8” hardware.
3. When installing duct/chimney, make sure that the floor support fastener band and floor support are
located under the V-band. Refer to Table 6 for vertical spacing specifications.
4. Secure the floor support fastener band to the outer shell using the 5/16”-18 x 1-1/2” self-drilling screws.
Use the guide holes to locate the shell center. Install screw into center, center left and center right. A
minimum of 18 screws must be used on each side of the duct/chimney.
NOTE: Supports must be rotated so that all thread is attached directly to the ceiling. DO NOT
ATTACH ALL THREAD FROM ONE UNISTRUT TO ANOTHER.

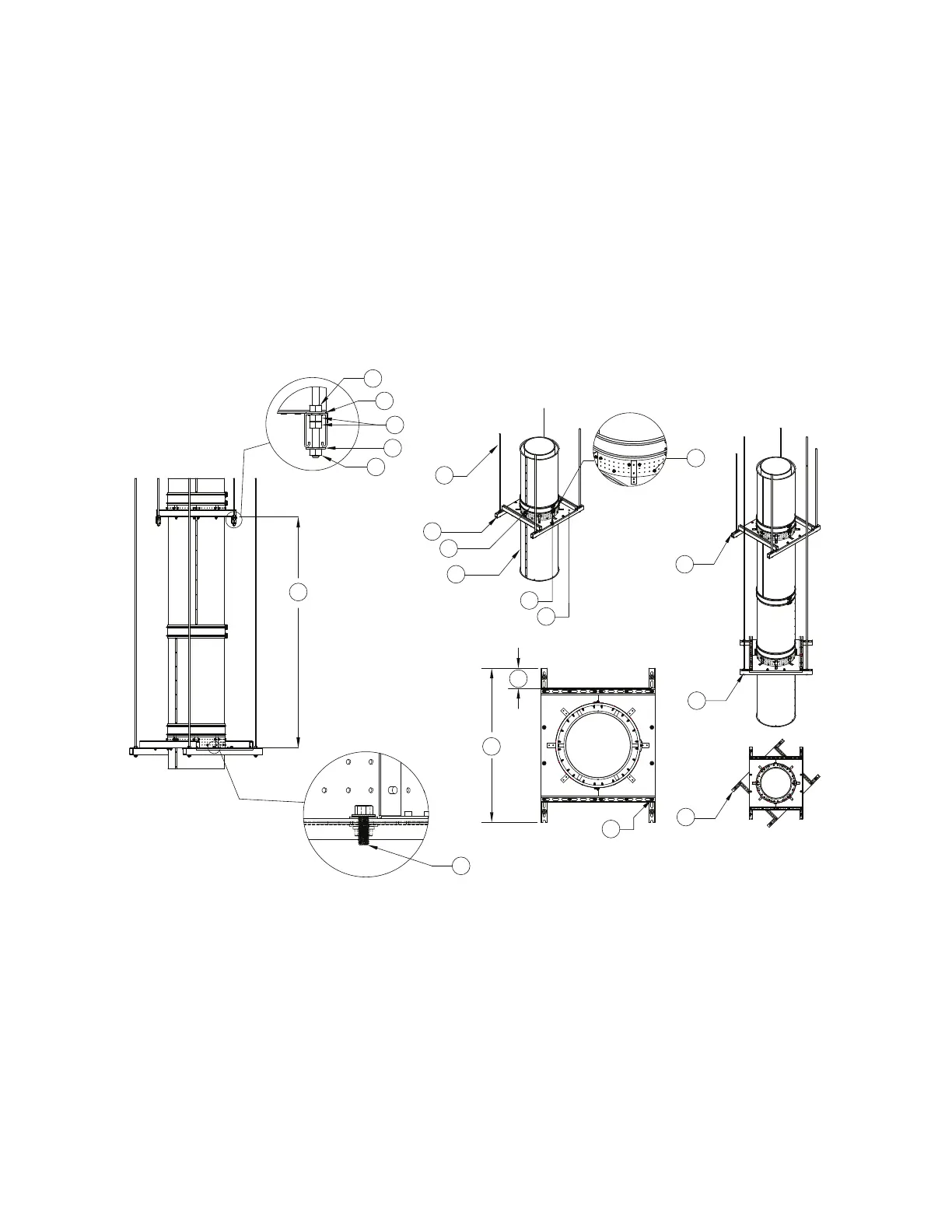

Figure 21 - Vertical Ceiling Support
* Supports must be rotated so that all thread is attached directly to the ceiling. DO NOT ATTACH ALL
THREAD FROM ONE UNISTRUT TO ANOTHER.
1
2
1
2
1
3
4
5
6
7
8
9
10
10
C
A
B
*
*
*
1. 1/2” Nut
2. 1/2” Washer
3. 1/2” All-Thread - Supplied by others
4. B12 Unistrut
5. Double Wall V-band
6. Double Wall Shell
7. Floor Support Fastener Band
8. Floor Support
9. 5/16”-18 x 1-1/2” Self-Drilling Screws
10. 3/8” Hardware - 18 pieces
A. Vertical Support Spacing, refer to Table 6
B. 5” Maximum Distance
C. 48” Maximum Distance
