CaptiveAire DW - Page 24

24

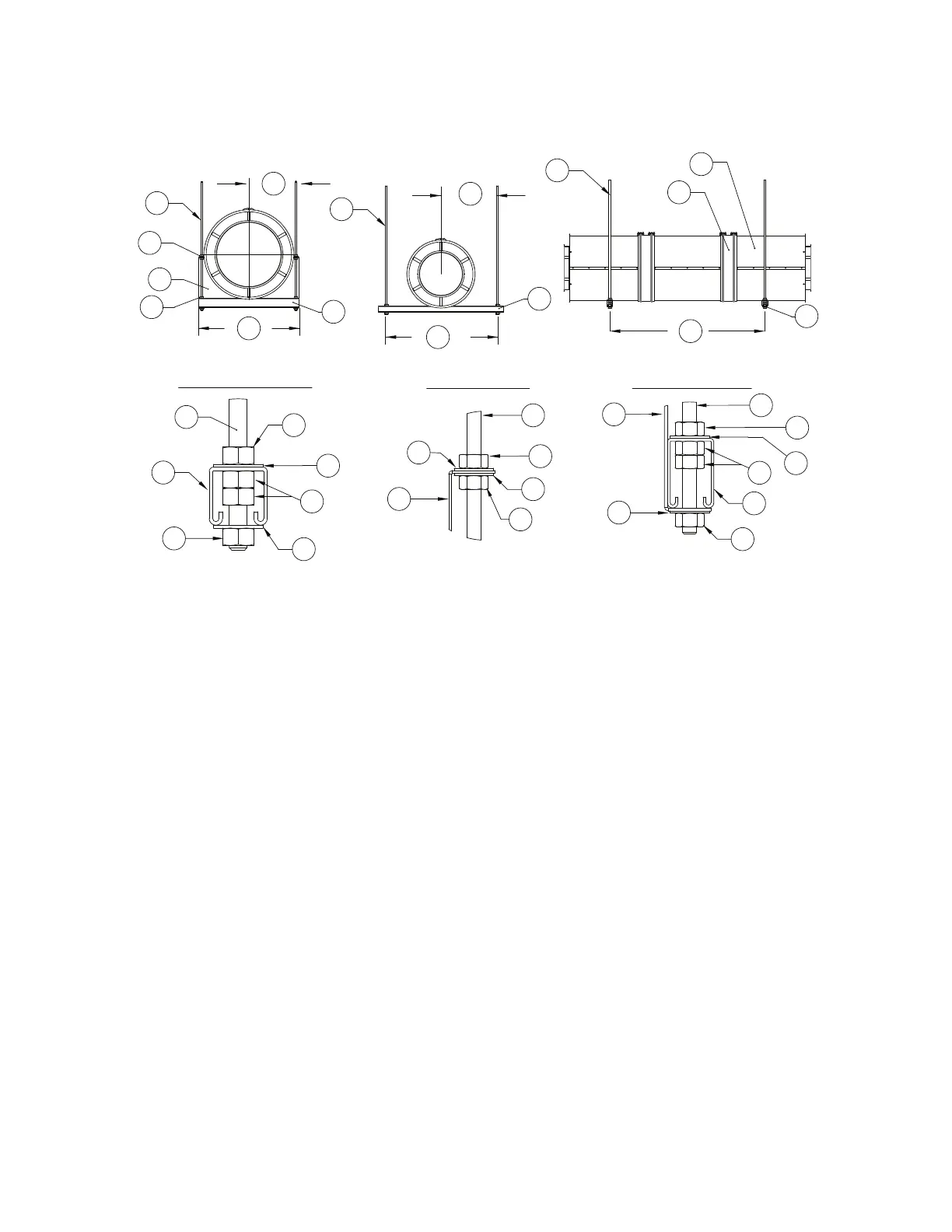

Figure 15 - Horizontal Support Details
C
Saddle Bottom ConnectionSaddle Top Connection
Unistrut - Bottom Connection
A
A
B
B
1
2
1
5
3
1
1
1
9
8
6
8
8
8
9
4
7
8
5
9
9
9
9
8
8
8
5
3
3
1
5
5
1. 1/2” Threaded Rods
2. Saddle Top Connection
3. Saddle
4. Saddle Bottom Connection
5. Unistrut
6. Double Wall V-band
7. Double Wall Duct
8. 1/2” Hex Nuts (Grade 5)
9. 1/2” Hardened Washers
A. Center of Duct
B. Duct Diameter plus 4”
C. Horizontal Support Spacing, refer to Table 5
