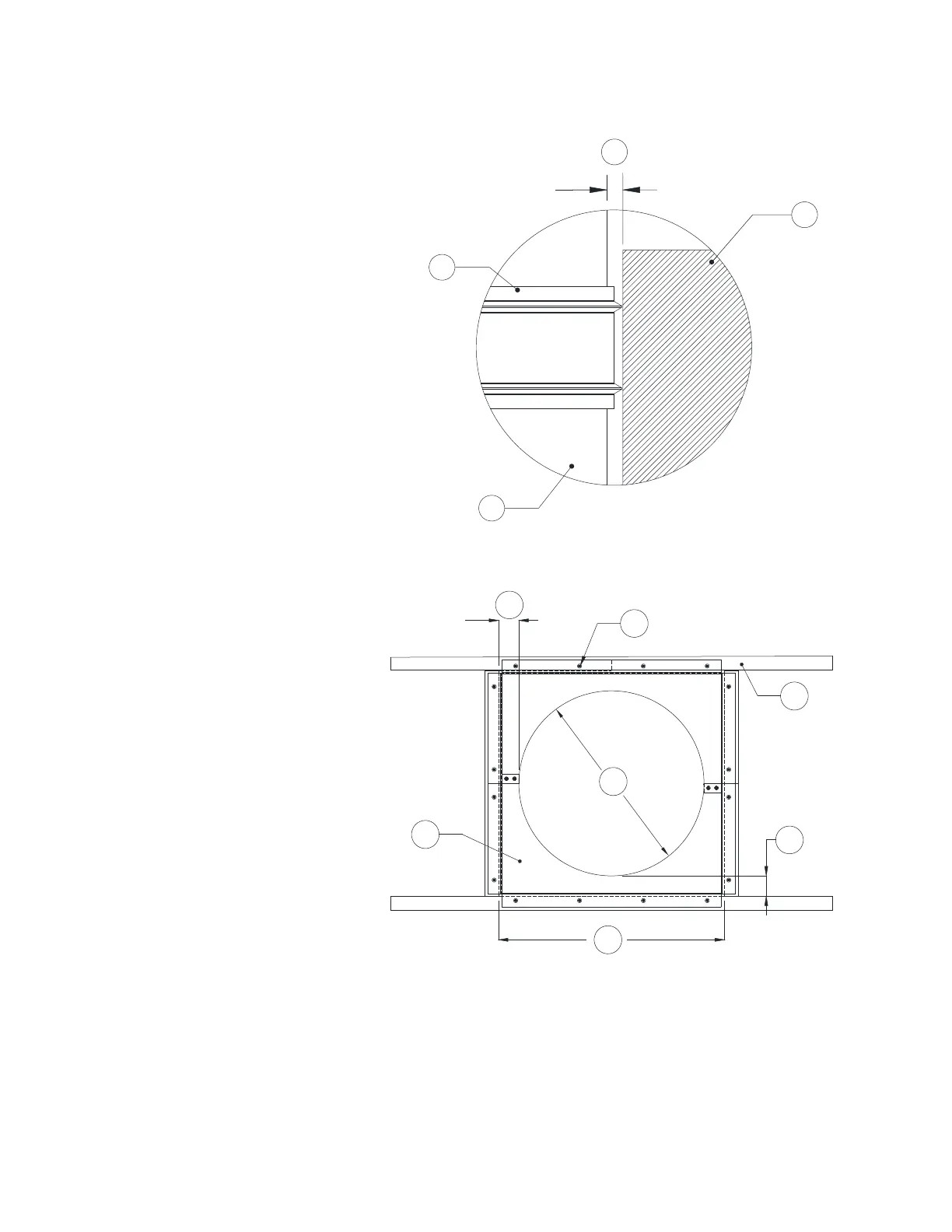

Figure 1 - Grease Duct Reduced Clearance
Figure 2 - 2R Type HT Chimney Reduced Clearance
3
2
A
1
1. Combustible Surface
2. Duct
3. Double V-band
A. Reduced Clearance
• 2R 8”-16” = 3/4”
• 2R 18” = 1”
• 3R = 3/4”
3
A
B
2
1
A
C
1. Hardware
2. Combustible Surface
3. Clearance Plates
A. 2” Reduced Clearance
B. 2R Type HT Shell + 4-1/2”
C. 2R Type HT Shell Outer Diameter
