Cardinal 225D SmartCell - 225 Dlc Controller Card

8200-0753-0M Rev A  225D Weight Digital Indicator
9

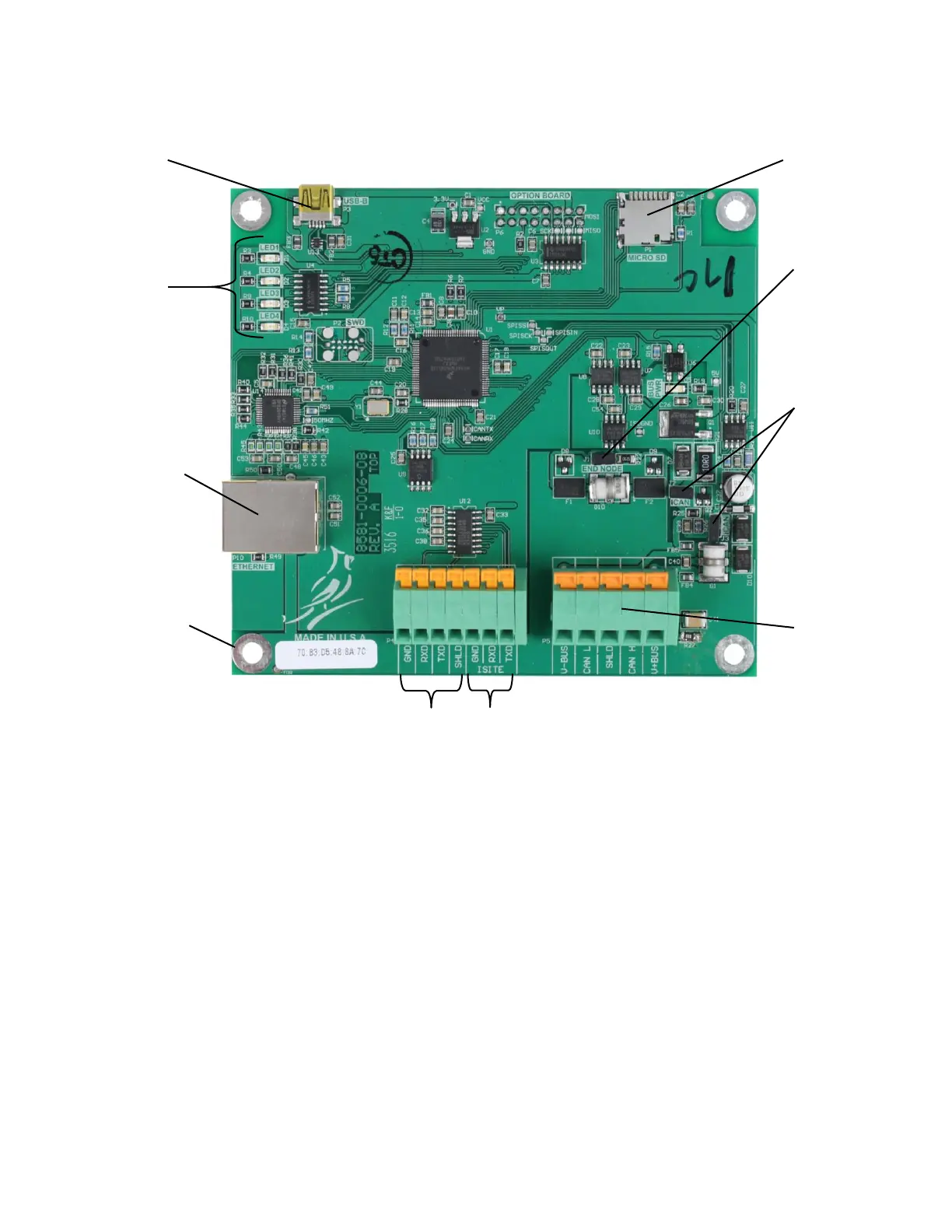

225DLC CONTROLLER CARD
USB-B
This port is used to perform firmware updates to the 225DLC controller card.
LED 1-4
The LED’s are used for diagnostic purposes. For a complete explanation of their function, refer
to the DIGITAL SCALE DIAGNOSTICS, Hardware Diagnostics section of this manual.
Ethernet Port
This port is used to connect the 225D to your network to send information to the cloud for iSite.
Micro SD Card Slot
The Micro SD card slot is not used at this time.
J1, End Node Jumper
Jumper J1 is the CAN bus END NODE jumper.
NOTE: The J1 jumper must be installed for the 225D communications to the scale to operate.
P5
Homerun
Cable
Attach
Ground
wire here
Ethernet
Port for
iSite
USB-B
Port
Micro SD
Card Slot
LED1
LED2
LED3
LED4
J1
End Node
J2, J3
ICAN
Jumpers
Cable
P4 – Legacy
Serial iSite
P4
Future Use
