Load Cell Connection

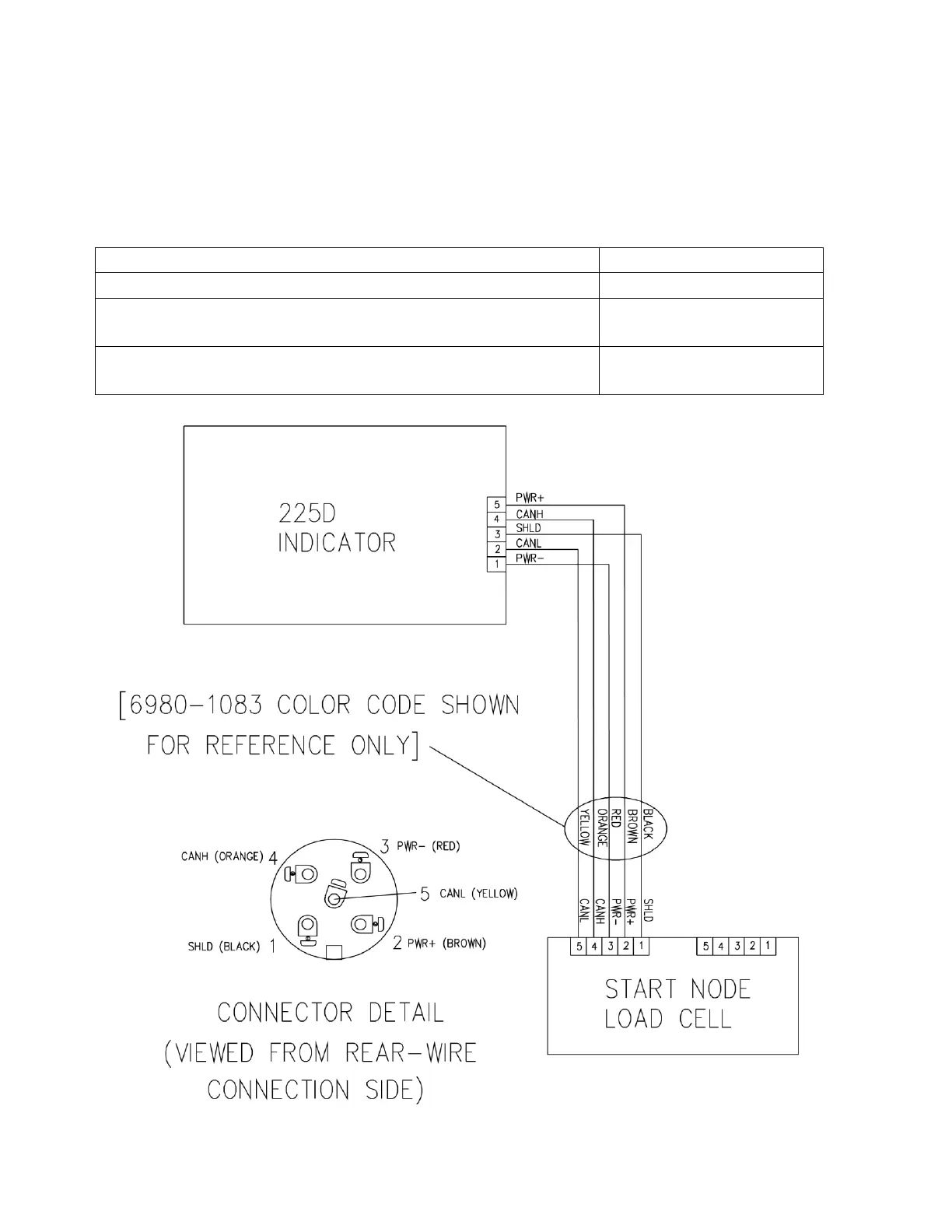

The Homerun Cable is installed between the first load cell in the loop (Start Node) and the
225D indicator. It is made from five conductor, 18 AWG cable and terminated with the included
screw type 5-pin connector from the Homerun Cable Connector Pack. Refer to the table below
for cable and connector information.
Cable and Connector Information
ITEM and DESCRIPTION
CARDINAL PART NO.
HOMERUN CABLE, 5 CONDUCTOR, 18 AWG
6980-1083
CONNECTOR PACK, HOME RUN CABLE
(INCLUDES 5-PIN SCREW TYPE CONNECTOR, 6610-1308)
3502-0681-0A
RECOMMENDED HOMERUN CABLE
BELDEN 5303FE, 18 AWG, 5 CONDUCTOR
SUPPLIED BY DEALER
