Cardinal Detecto ProDoc PD100 User Manual

BATTERY OPERATION
Battery operation is a standard feature of the ProDoc Series Scale, although the batteries are
optional (not included). You must first obtain and install six (6) "AA" size Alkaline batteries before
operations can begin. Batteries are contained in a battery holder inside the scale. Access is via
a removable cover on the bottom of the scale.
Installation / Replacement
To install or remove the batteries, the following steps
should be followed:
Batter
y
Cover
PD100
T
urn the scale over on the floor or place it on a desk
or table.
PD200
Carefully turn the scale over on the floor or place it
on a desk or table with the display resting on the
floor, desk or table.
PD300, PD300MHR and PD300DHR
Tilt the scale to the side (without the height rod, if
one is installed) and then carefully lay it down with
the edge of the display resting on the floor.

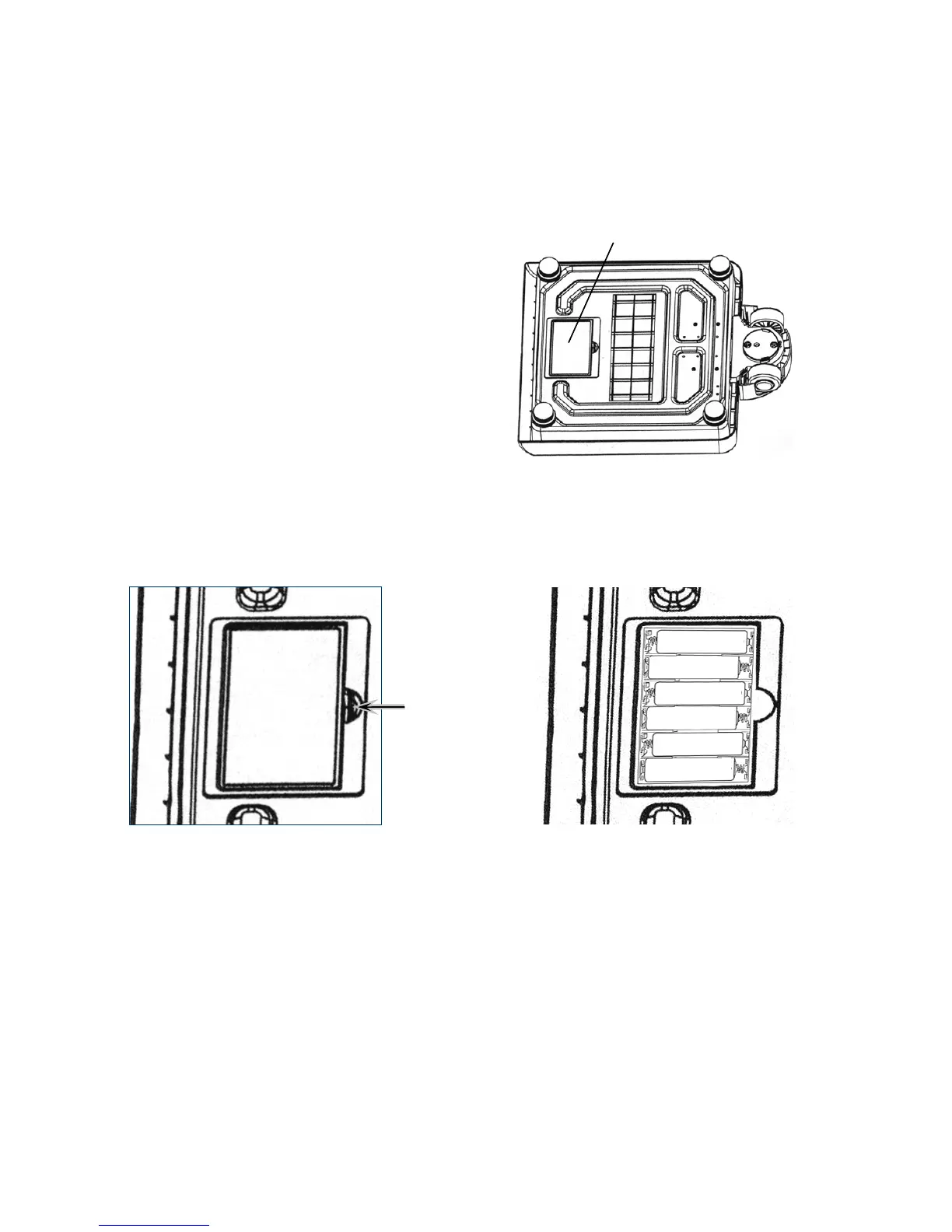

Figure No. 22
1. Referring to Figure No. 22, locate the rectangular battery cover on the bottom of the scale.
2. To install or replace the batteries, first remove the battery cover by pushing in on the tab and
lifting it up. Refer to Figure No. 23.
Push in
and lift
here
–
+
–
+
+
–
–
+
–
+
+
–
Figure No. 23 Figure No. 24
3.
If installing new batteries, proceed to step 4. If replacing the batteries, remove all six (6)
batteries from the battery holder and hen proceed to step 4.
4. Install the six (6) new “AA” size batteries in the battery holder, noting the polarity markings
located in the battery holder. See Figure No. 24.
5. Replace the battery cover (it will click when locked in place) and return the scale to the
upright position.
6. Make sure the 9V AC/DC power adaptor is not plugged in to the scale.
7. Press the ON/OFF key.
8. The display should turn on, show all digits, the software version for a few seconds, followed
by a small o moving across the display and then show 0.0 on the display.
9. The scale is now ready for operation.
10. If the display did not turn on, remove the battery cover and check for one or more improperly
positioned batteries.
0044-M340-O1 Rev C  ProDoc Series
