PD300DHR
Digital Height Rod Installation
The Digital Height Rod is packed in its own carton inside the main carton. Before starting
installation, please unpack carefully and remove all plastic wrappings, foam fillers and cardboard
material. You should have the following components:
(1) Detecto Digital Height Rod (DHR)
(1) Upper Mounting Bracket (with 2 plastic cable clips)
(1) Lower Mounting Bracket
(1) Hardware Pack, containing:
(8) M4x4.5 PM Screws (bracket to height rod)
(4) M4x10 PM Screws (bracket to column)
(4) Lock Washers (bracket to column)
M4x4.5 Machine Screw
M4x10 Machine Screw
Lock Washer

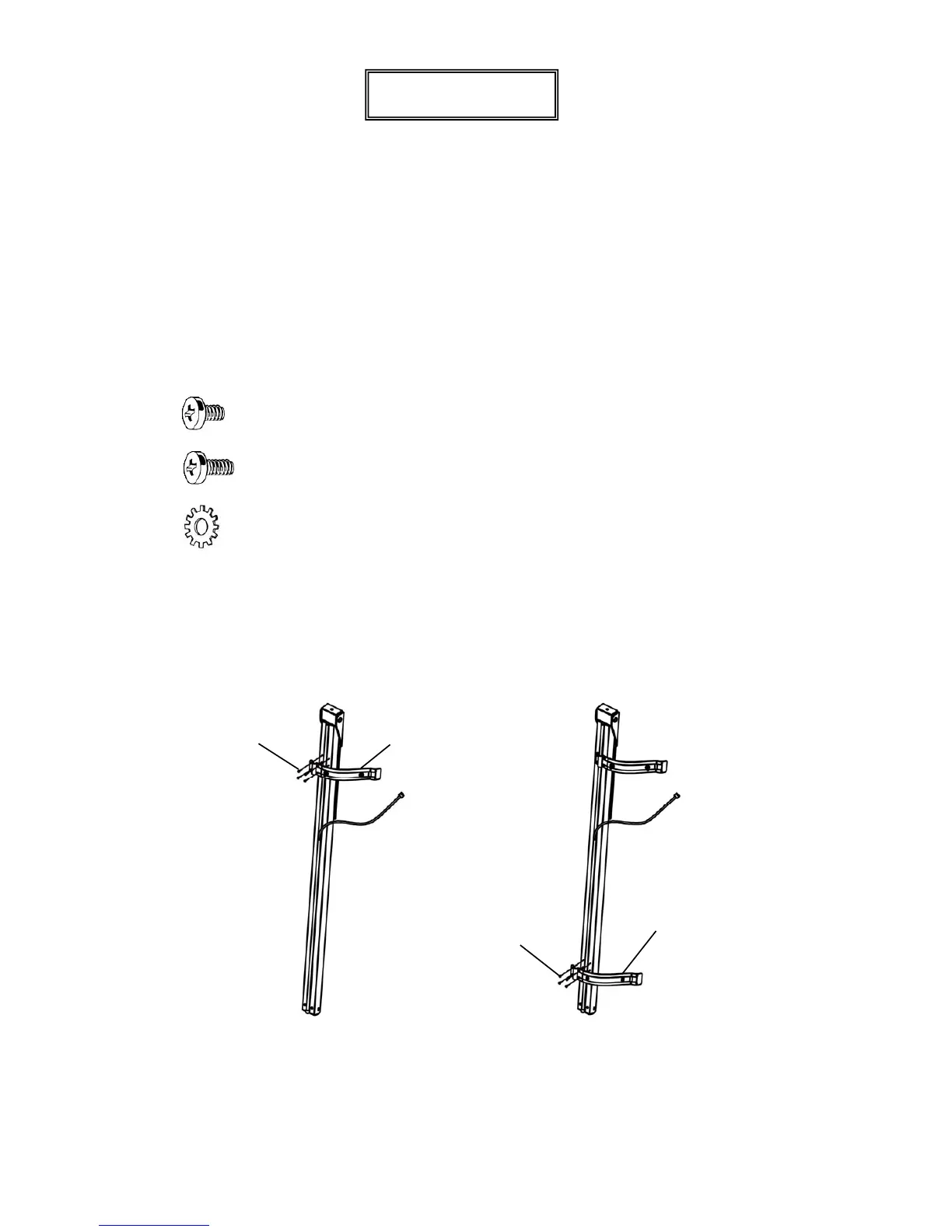

1. Referring to Figure No. 15, align the upper bracket with the holes in the height rod (near the
headpiece) and install four (4) M4x4.5 PM screws to secure the bracket to the height rod.
2. Next, align the lower bracket with the lower holes in the height rod and install four (4) M4x4.5
PM screws to secure the bracket to the height rod. See Figure No. 16.
Lower Bracket
(no Cable Clips)
Figure No. 16
Upper Bracket
(with Cable Clips)
M4x4.5 PM
Screw
s (4)
M4x4.5 PM
Screws (4)
Figure No. 15
0044-M340-O1 Rev C ProDoc Series
12
