BATTERY OPERATION
Low Battery
When the batteries are near the point they need to be replaced, the display will show BAt. If the
battery voltage drops too low for accurate weighing, the scale will automatically shut off and you
will be unable to turn it back on. When the BAt message is displayed, the operator should
replace the batteries or remove the batteries and plug-in the 9V AC/DC adapter.
Automatic Shutoff
The Automatic Shutoff feature will turn the scale off after a period of inactivity (no motion or
weight on scale) to prolong battery life. The period of inactivity for the automatic shutoff is
selected during the setup process of the scale and can be set for up to nine (9) minutes. To
turn the scale back on, you simply press the ON/OFF key.
Sleep Mode
The Sleep Mode feature also conserves battery power when the scale remains unused and
will show SLEEP on the display to indicate the sleep mode has activated. The sleep mode
feature requires the scale to remain at the center of zero for a period of time to activate, unlike
the automatic shutoff feature (which requires no motion or weight on scale). The period of
time for the sleep mode is also selected during the setup process of the scale and can be set
for up to nine (9) minutes. When weight is placed on the scale, it will wake up and return to the
weight mode.

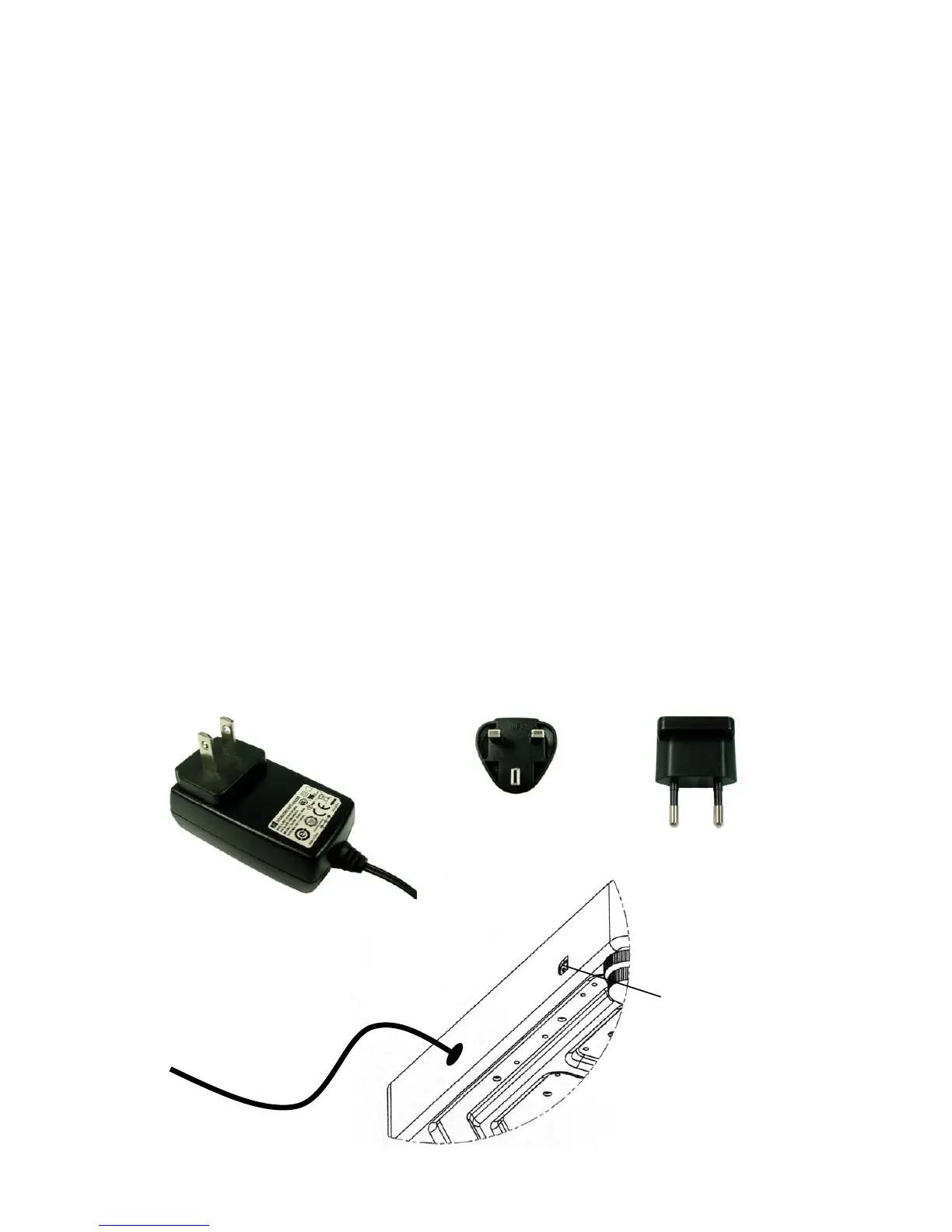

OPTIONAL AC POWER ADAPTER
To power the scale using the optional Medical device 9V AC/DC wall plug-in adapter (see Figure
No. 25), connect the plug from the adapter into the power jack on the back of the scale base and
then plug the power adapter into the proper electrical outlet. Refer to Figure No. 26. On models
requiring 220 VAC, it is the customer’s responsibility to obtain the correct power adapter plug.
The scale is now ready for operation.
9V DC
Power Jack
(PD100 Shown)
Optional
PD-UKPLUG
(UK Plug)
Optional
PD-EUPLUG
(EU Plug)
Optional PD-AC
(Medical device 9V AC/DC
Adapter, includes USA Plug)
Figure No. 26
Figure No. 25
0044-M340-O1 Rev C ProDoc Series
17
