It needs to set motor rated power correctly (parameter 02-05)
The ratio of drive output current and motor rated current, it needs to set motor rated
current correctly (parameter 02-01)
12-06 Output power
Range ____
12-07 Motor Current Percentage
Range ____
Motor Controllers AC Variable Frequency Drives Type VariFlex
3
RVLF
Specications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 13/12/2017 113
12-04≠0, line speed is displayed while the inverter is running or stopped.
When any of S1~S5 is turned on, corresponding segments on the digital display digits will be on.
When relay output RY1 is on, the corresponding digit will be on as shown below.
When no digital input and no relay output, they will show - - - - - .
12-04 Custom Units (Line Speed) Display Mode
Range
[0] Drive output frequency is displayed
[1] Line speed is displayed in integer (xxxxx)
[2] Line speed is displayed with one decimal place (xxxx.x)
[3] Line speed is displayed with two decimal places (xxx.xx)
[4] Line speed is displayed with three decimal places (xx.xxx)
12-05 Input and output terminal status display
Range Read only(Panel read only)

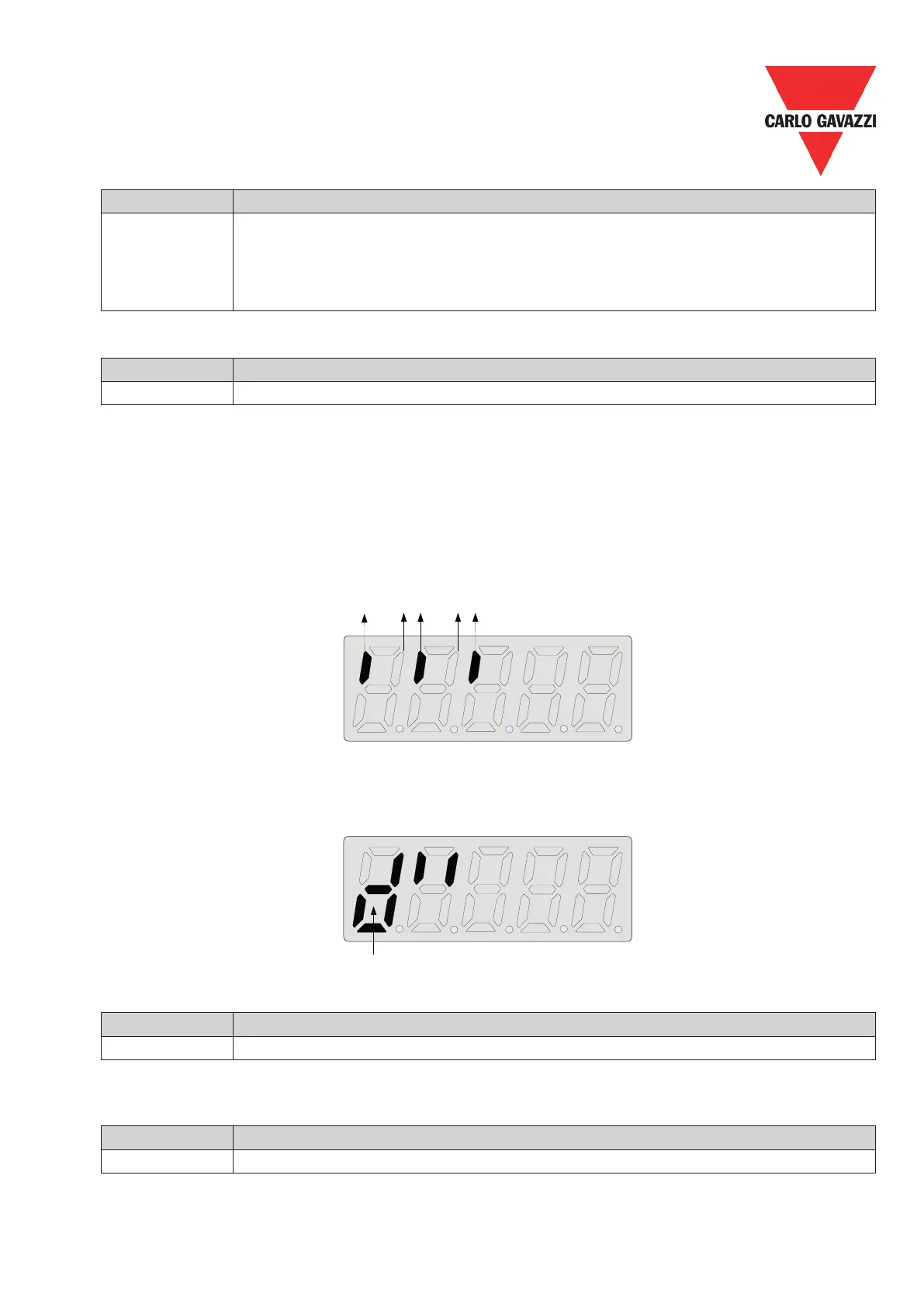

Example 1: The following figure shows 12-05 display status, when S1, S3, S5 Inputs are ON
and S2, S4 and RY1 are OFF.
Example 2: The following figure shows 12-05 display status when S2, S3, S4 inputs are ON
and S1, S5 are OFF but RY1 is ON.
S1 S2 S3 S4 S5
RY1
To Next Page
