39
1. To disassemble, first remove four (4) cap screws from
the bearing head cover plate and remove the oil feed
guide vane and spring.
Remove the two (2) drive segment cap screws from the
end of the crankshaft (see Fig. 6 and Fig. 7). These
screws must be removed before the bearing head can
be removed.
2. Remove the eight (8) cap screws holding the bearing
head assembly to the crankcase. Remove the bearing
head assembly by pulling forward.
SNORKLE
TUBE
OIL PUMP
ROTOR
OIL PUMP DRIVE
SEGMENT
ROTOR
RETAINING
RING
DRIVE
SEGMENT
CAP SCREWS
DISCHARGE
SERVICE VALVE
CONNECTION
OIL
PRESSURE
TAP (1/4")
BEARING
HEAD
SCREWS (8)

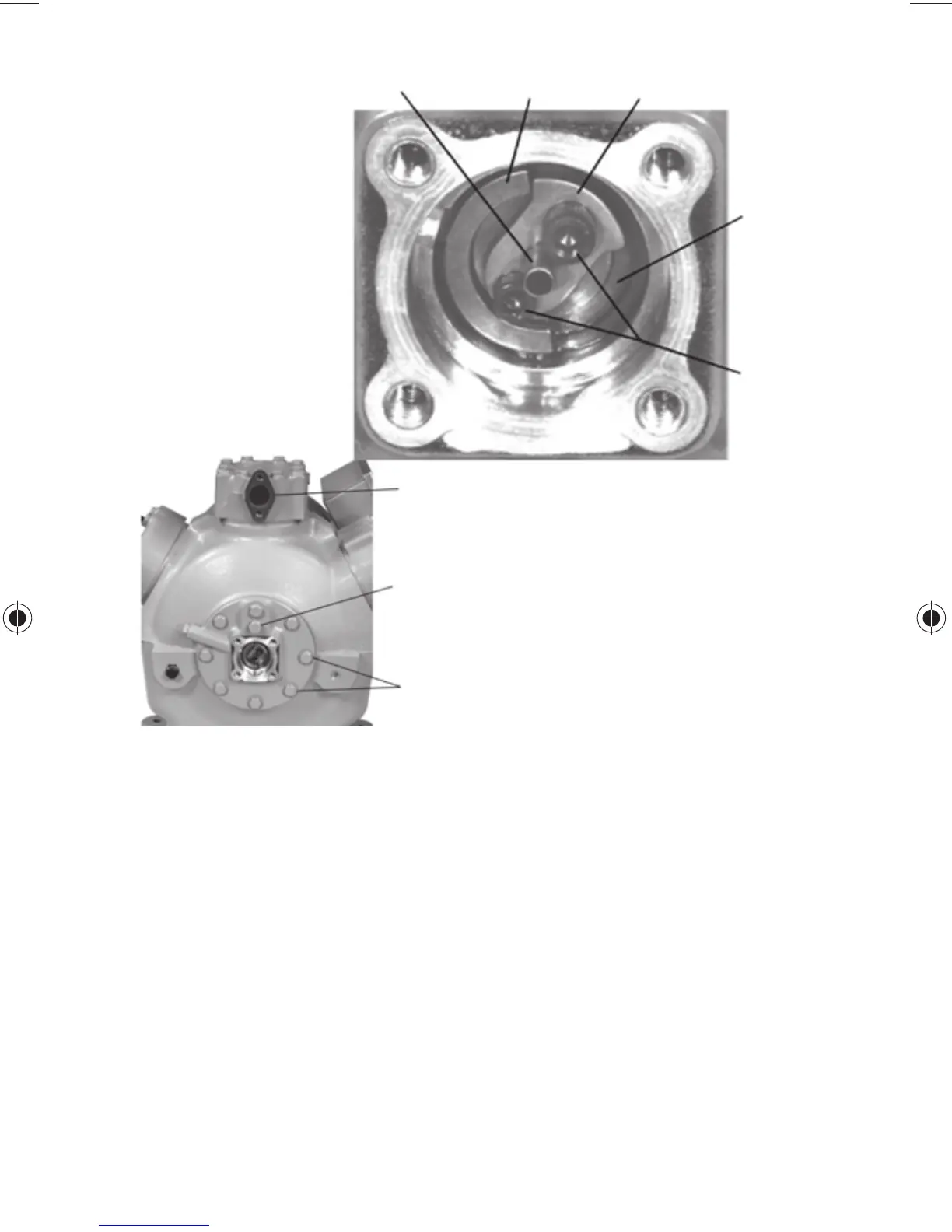

Fig. 6 — Removing Pump End Bearing Head
(06D Compressor)
