9.6 - Available static system pressure
Units with hydraulic module (xed-speed pump or variable-speed pump at 50 Hz)
Data applicable for:
- Pure water at 20 °C.
- Refer to the “Water exchanger water ow” section for the maximum water ow rate values.
- If ethylene glycol is used, the maximum ow rate is reduced.
9.6.1 - 30RB/30RBP 170R-950R units
High pressure pumps
Single pumps
Sizes 170R - 410R

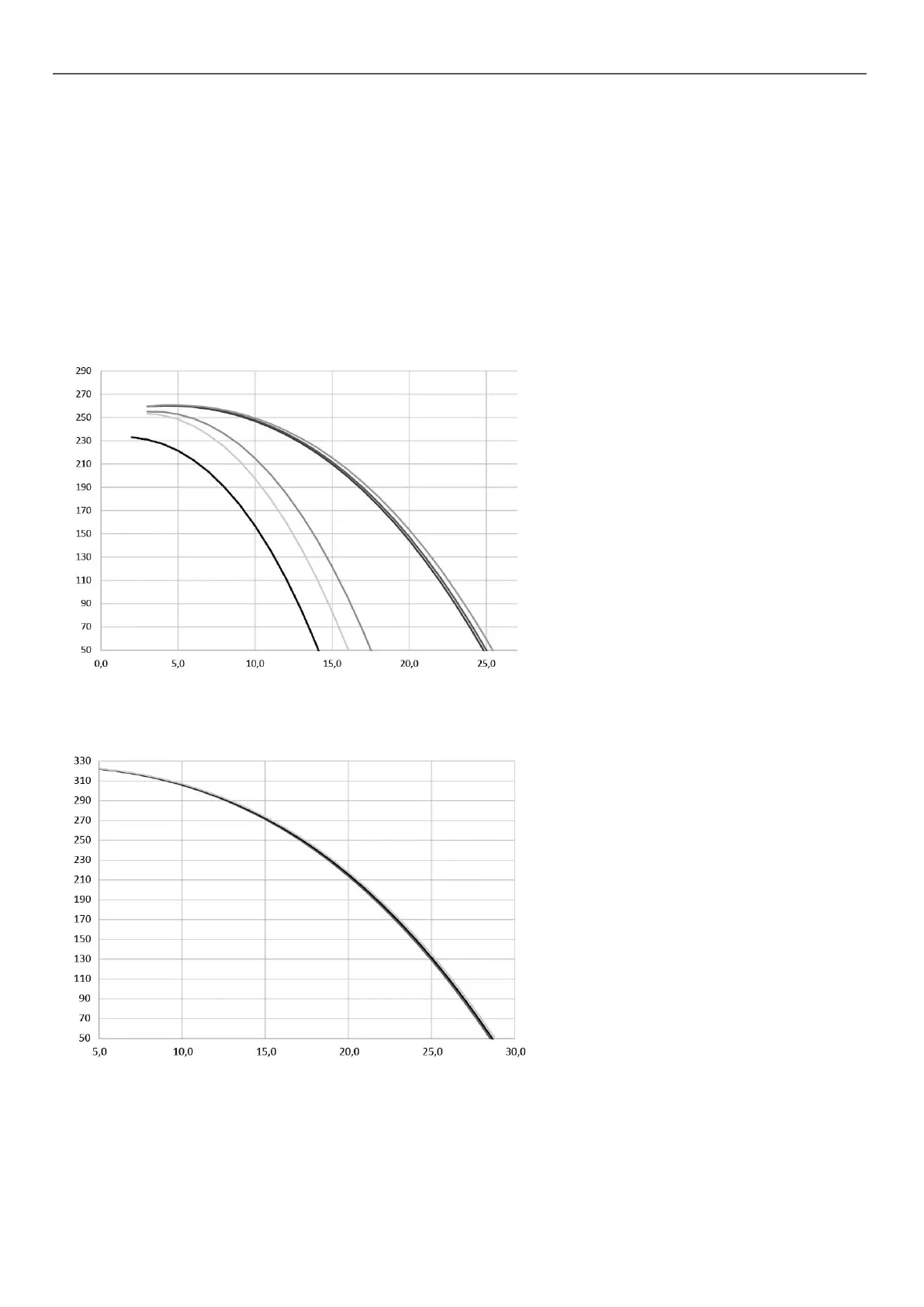

Available static pressure, kPa
Water ow rate, l/s
B
C
D
E
F
G
Sizes 450R - 550R
Available static pressure, kPa
Water ow rate, l/s
H
I
J
9 - NOMINAL SYSTEM WATER FLOW RATE CONTROL
1 30RB-RBP 170R - 230R
2 30RB-RBP 270R
3 30RB-RBP 310R
4 30RB-RBP 340R
5 30RB-RBP 380R
6 30RB-RBP 410R
7 30RB-RBP 450R
8 30RB-RBP 480R
9 30RB-RBP 550R
