Installation
16 RTU Open

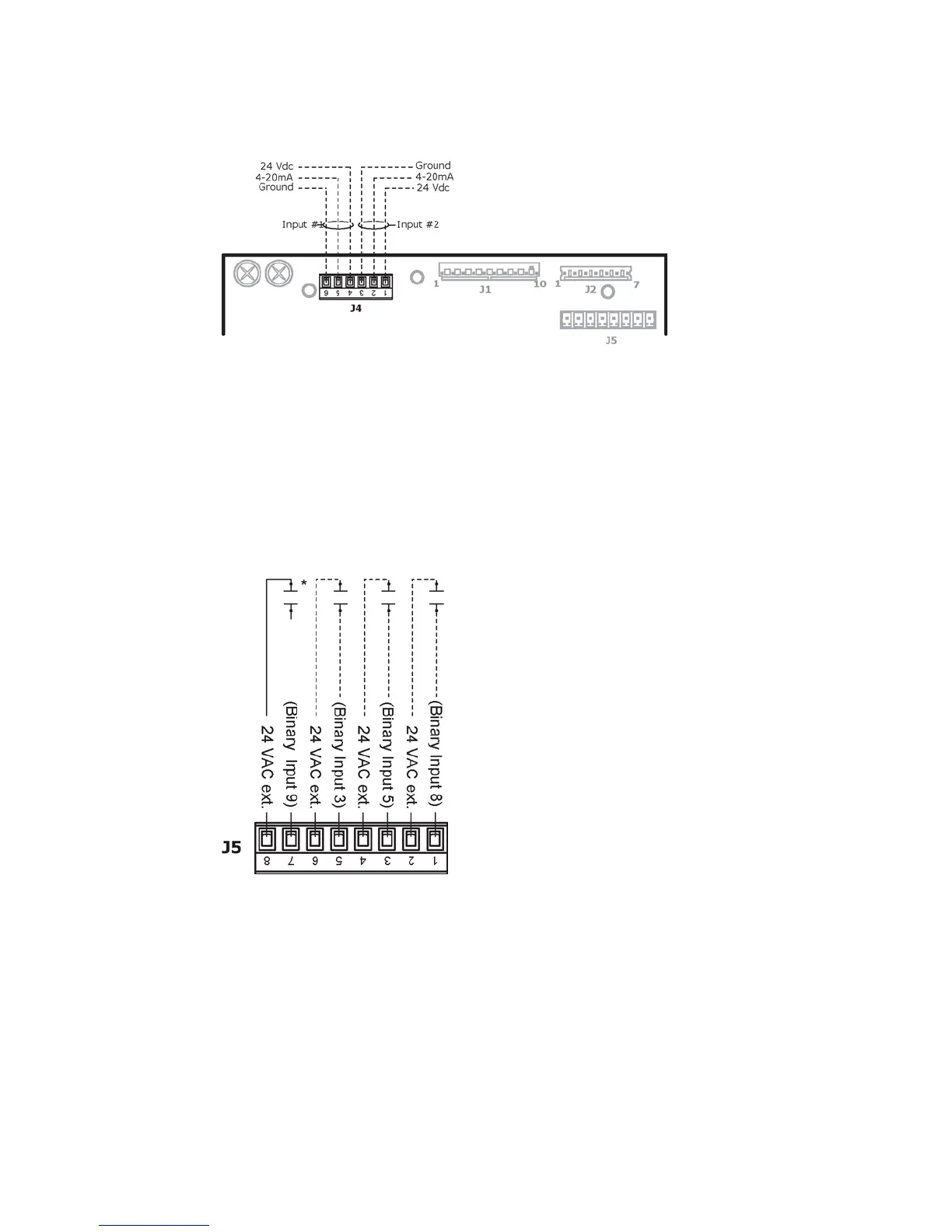

NOTE J4 Analog Inputs 1 and 2 may be set for the following device types:
IAQ Sensor
OAQ Sensor
Space RH Sensor
J5 Inputs
The terminals for Inputs 3, 5, and 8 are available for use in place of the flying wire leads at Molex
connectors J1 and J2 identified below:
NOTE J5 binary inputs 3, 5, and 8 are the same input channels as:
J1 wire 2, J5 - Input - 3 (Compressor Safety)
J1 wire 10, J5 - Input - 5 (Fire Shutdown)
J2 wire 6, J5 - Input - 8 (Enthalpy Switch).
