Installation
30 RTU Open

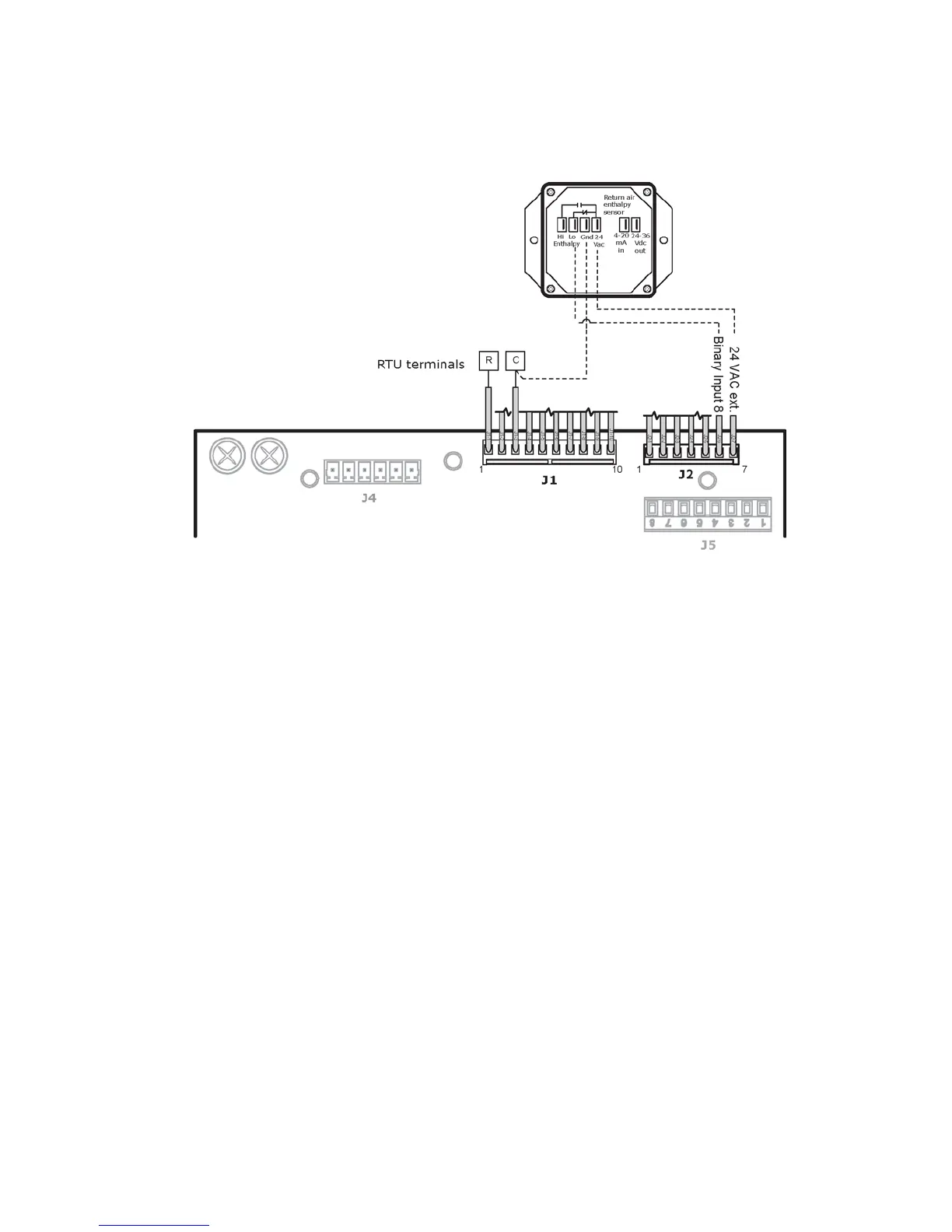

Wiring diagram for factory-installed enthalpy switch:
NOTE Factory-installed enthalpy switches terminate at J2 wires 6 (switch input) and 7 (24 Vac).
To wire an enthalpy switch (differential) to the controller
