Carver Pump RSA - Optional Design Pump Mechanical Seal Settings; Key Mechanical Data; Standard Seal Flush Plans

RS – Multi-Stage, I-280
Centrifugal Pump 280 – 16.03.EN
13
Table 7. Optional Design Pump Mechanical Seal Settings
Pump
Model
Discharge End (Seal Type 1)
(for reference only) – Inches
(from face of box to face of
collar)
Discharge End (Seal Type
8B1) (for reference only) –
Inches
(from face of box to face of
collar)
Suction end (Seal Type 1 or
21)
- Inches
(from face of box to face of
collar)
A
.750
1.375
1.000
B
.750
1.375
1.000
C
.750
1.375
1.000
D
2.062
1.750
1.312
E
1.792
1.812
1.594
Table 8. Key Mechanical Data
Item
Pump Model
A, B
C
D
E
Maximum Speed
3500 RPM
Max HP – (17-4 PH shaft)
370
370
603
900
Max HP – (416 SS Shaft)
308
308
500
690
WR
2
of Rotor – 1
st
Stage (lb-In
2
)
14.6
30.8
36.7
106.5
WR
2
of Rotor –
each Stage (lb-In
2
)
10.2
26.7
31.1
94.4
Lubrication Method (Standard)
Oil – ISO Grade 68
L
10
Bearing Life (hrs) - Thrust
50,000
L
10
Bearing Life (hrs) - Radial
50,000
Radial Bearing Type
307
307
308
309
Thrust Bearing Type
7307
7307
7308
7309

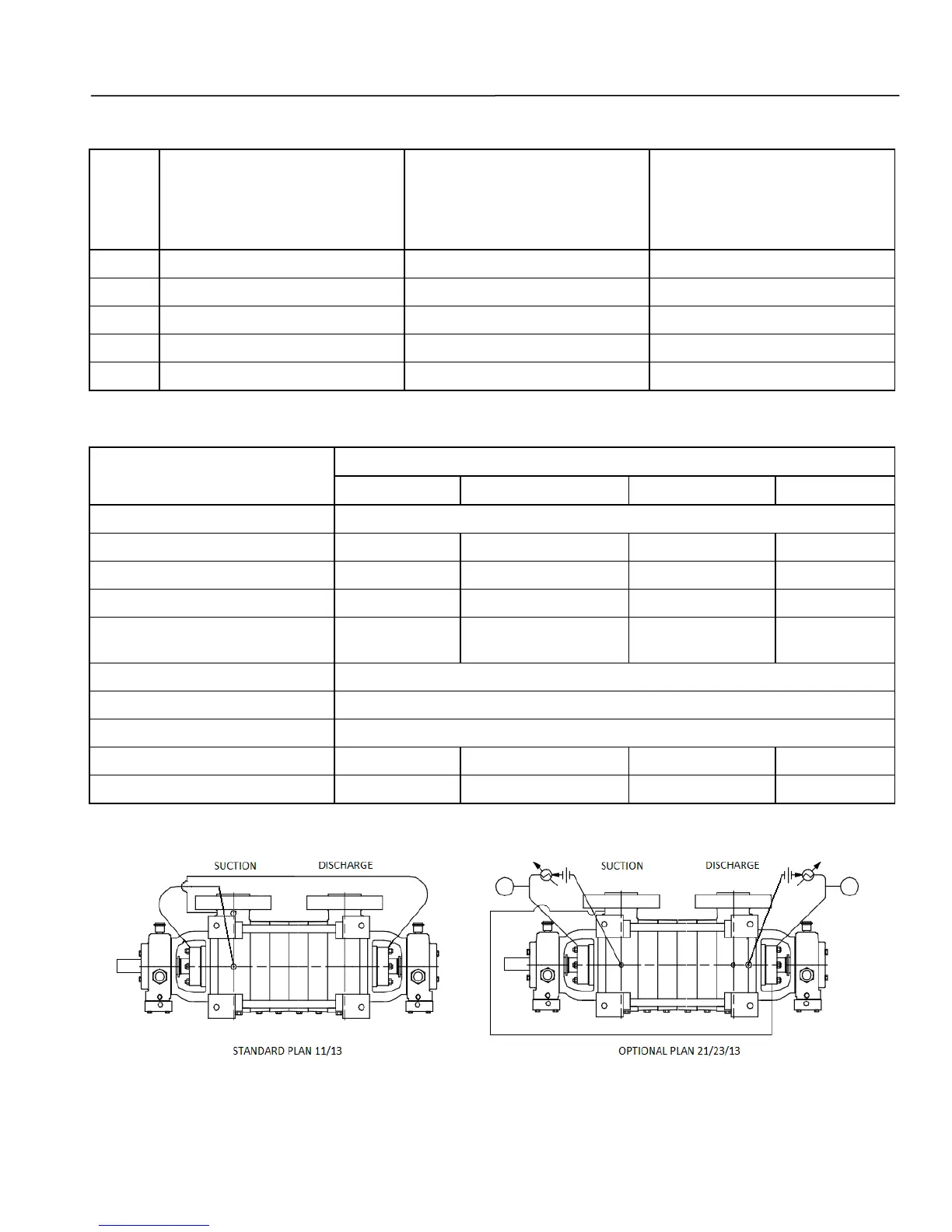

The standard seal flush plans provided with the optional outboard mechanical seal are shown below.
Recirculation from Suction Point to Seal Recirculation from Discharge Point thru a TI
and Heat Exchanger to Seal
Figure 2. Standard Seal Flush Plans
Plan 13
Plan 11
Plan 13
Plan 23
Plan 21
