CAS CL3500 Series - M a I N B O a R D R E P L a C E M E N

50
CAS ELECTRICS CO.,LTD

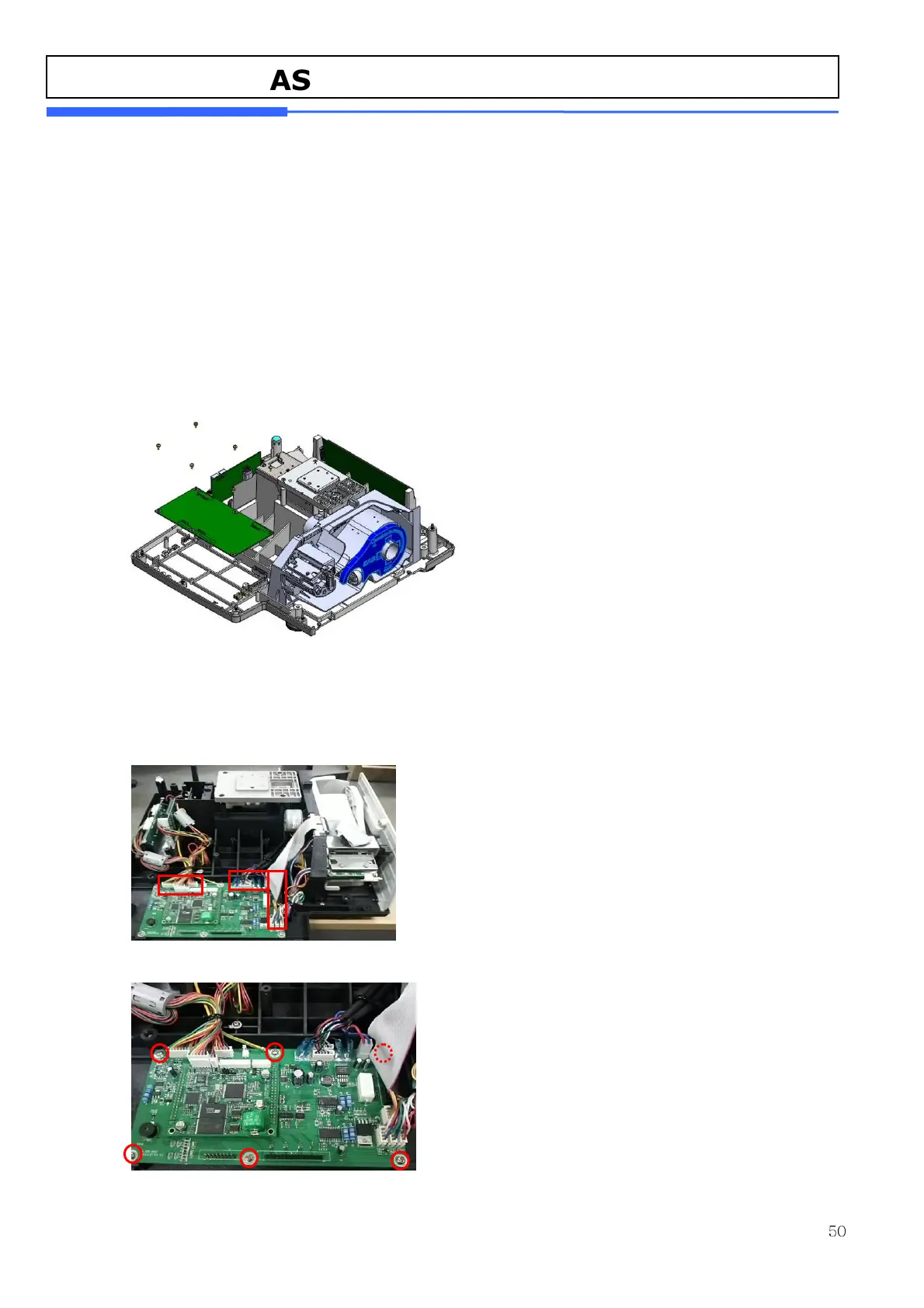

5.3 Main board Replacement
1) Turn power off and remove power cord
2) Remove following cables
- SMPS Line
- Key Board Line
- Display Board Line
- Printer Lines
- A/ D Board Line
- I/ O Line
3) Remove following bolt to remove main board
1. remove cables and ground wire.
2. Remove 6 bolts and replace main board
