5.5 Load Cell & AD Converter Replacement

1) Turn power off and remove power cord

2) Remove upper case(5.2)

3) Remove upper frame(Load cell moult) bolt

4) Remove bottom frame bolt

NOTE: Carefull with load cell this procedure may cause critical damage on scale

5) Remove A/ D module bolt(2) and cable(A/ D data line, L/ C line)

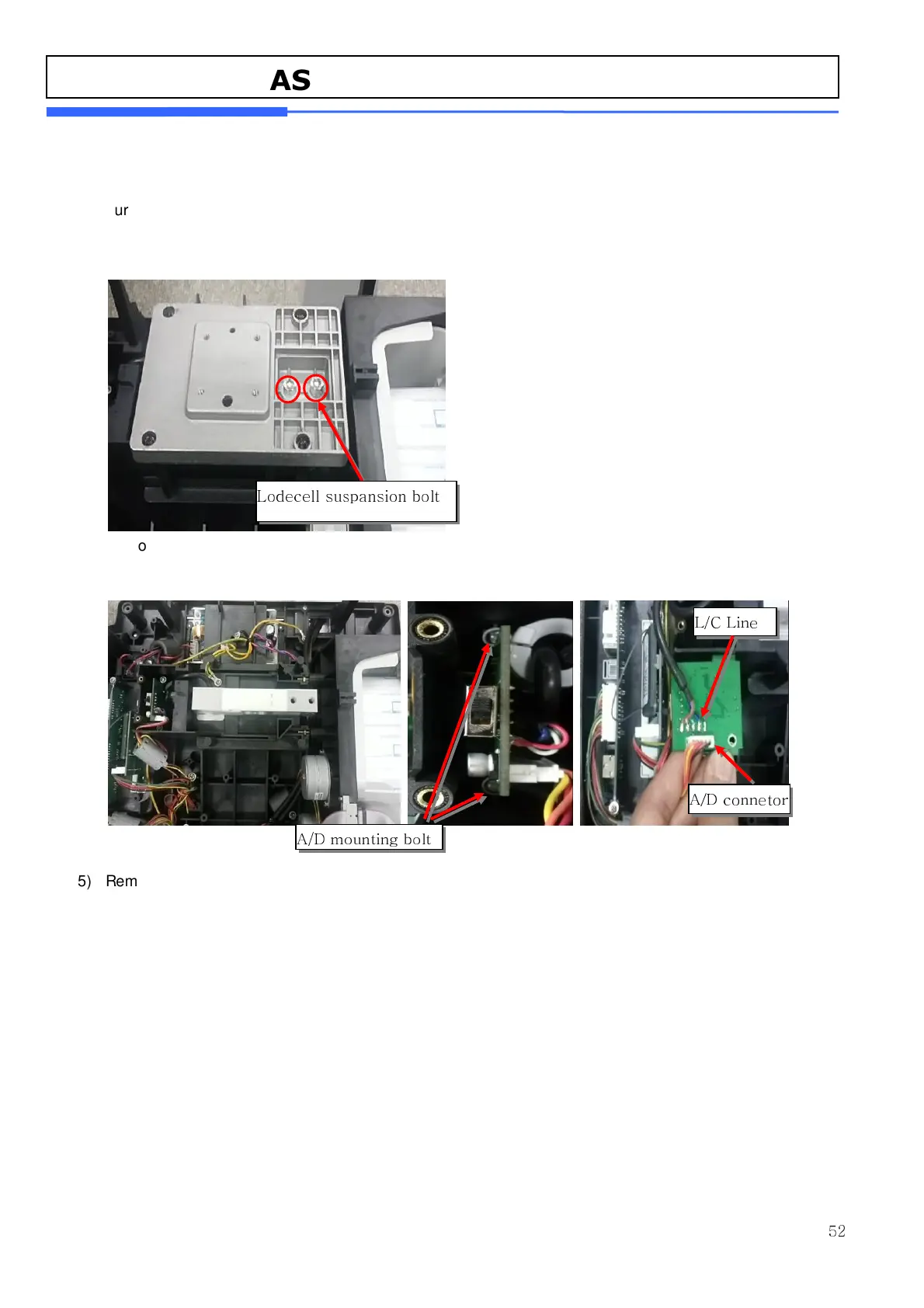

Lodecell suspansion bolt

A/D mounting bolt

L/C Line

A/D connetor
