1
Terminal
Company
EX+ EX- SIG+ SIG- GND
CAS RED WHITE GREEN BLUE CASE
KYOWA RED BLACK GREEN BLUE CASE
INTERFACE RED BLACK GREEN WHITE CASE
P.T RED BLACK GREEN WHITE CASE
BLS RED BLACK WHITE RED YELLOW
SHOWA RED BLUE WHITE BLACK CASE
SHINKOH RED BLACK GREEN WHITE CASE
TMI RED WHITE GREEN BLUE YELLOW
TML RED BLACK WHITE GREEN CASE
TFAC RED BLUE WHITE BLACK YELLOW
HUNTLEIGH GREEN BLACK RED WHITE CASE

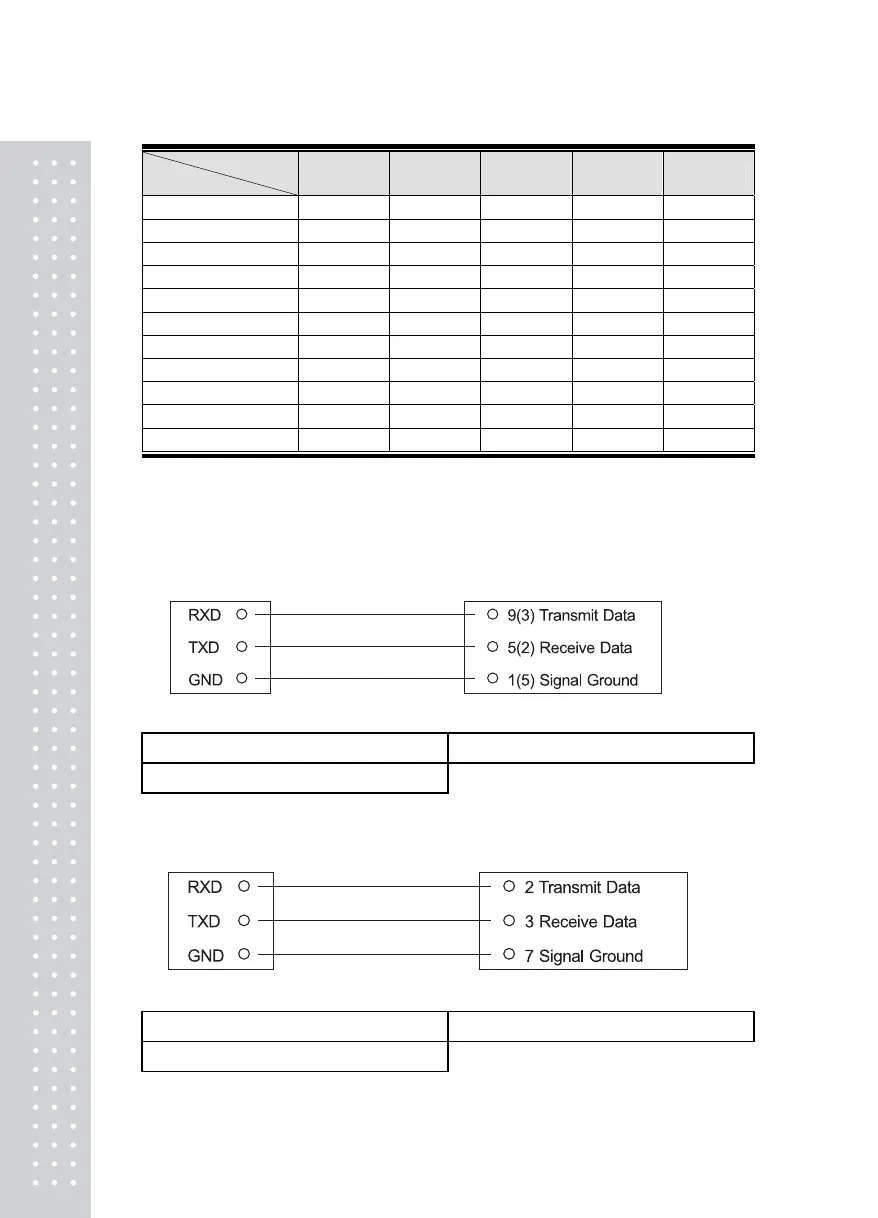

(3) RS 232C Serial interface
■ Serial Printer
RS-232C port of EXP-2000A 7000 Series, ( ):ND series.
F04 : 0 (Manual), 1 (Automatic) F05 : 1 (7000 Series), 2 (ND Series)
F06 : Print Form
■ Sub Display Connection (CD-3000A,CD-3010A,CD-3040A,CD-3060A)
RS-232C port of EXP-2000A Sub display RS-232C port.
F04 : 0 (Manual), 1 (Automatic) F05 : 1 (7000 Series), 2 (ND Series)
F06 : Print Form
2
