Cascadia PM Series User Manual

7929 SW Burns Way Phone: 503 344-5085
Suite F
Wilsonville, OR sales@cascadiamotion.com
1/14/2021 RMS PM Hardware User Manual 48 of 54
4.2 Digital Inputs:
There are up to 8 digital inputs for general interface to the vehicle and for feedback from
external contactors and switchgear as required in the application. Some inputs are “Switch
To Battery” (STB) inputs. These inputs are designed to be used in an application that
switches the input to a positive battery potential. Some of the inputs are “Switch To Ground”
(STG) inputs. These STG inputs are designed to be used in an application that switches the
input to ground.

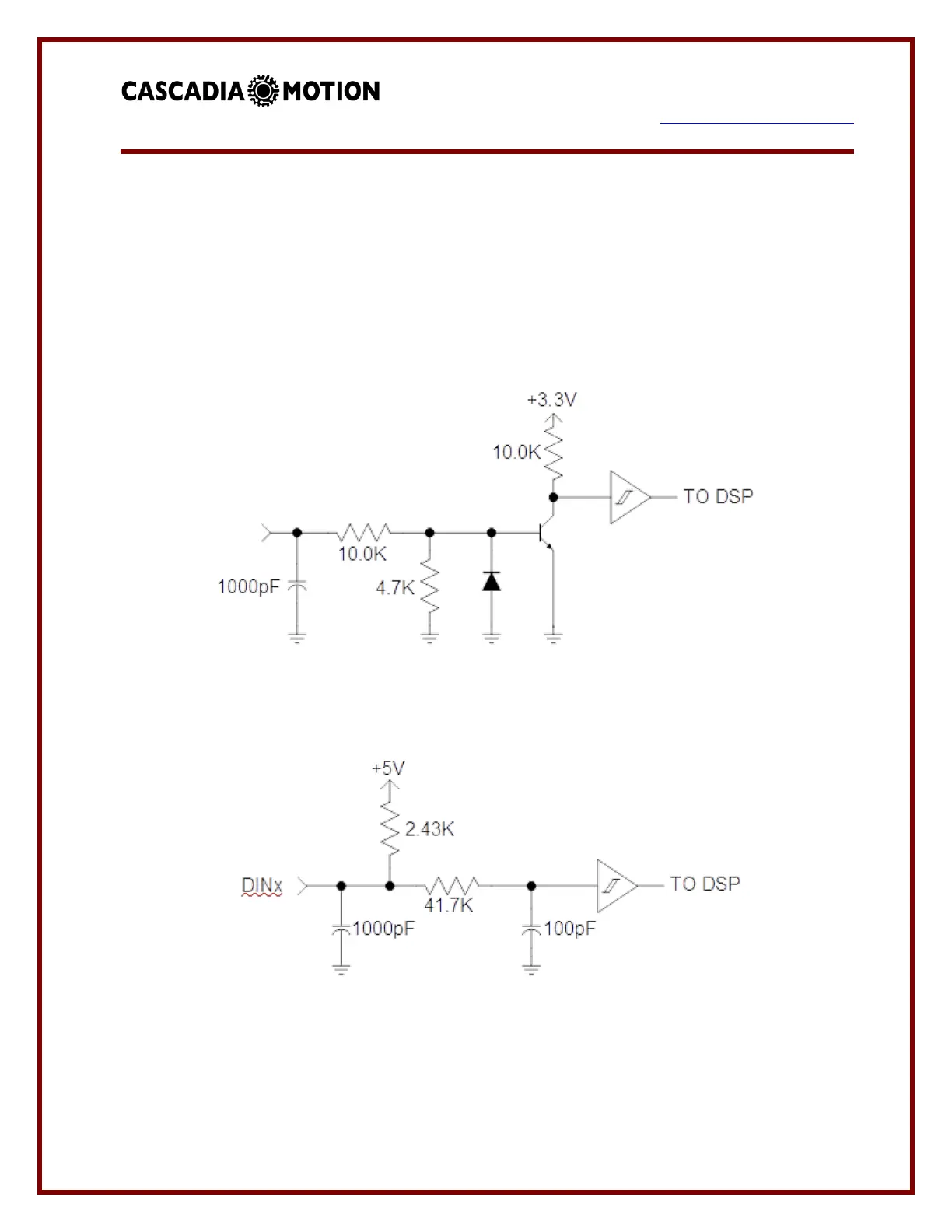

Switch to Battery (STB) Input Schematic
Switch To Ground (STG) Input Schematic
