CASE CONSTRUCTION CX130B - Hand Control Valve; Hand Control Valve Specifications and Graphs

Lep SC130B1002-2EN Issued 03-08
1002-17
Hand control valve
Manufacturer................................................................................................................................................... Kawasaki
Operating pressure .......................................................................................................................... 3.92 MPa (569 psi)
Secondary pressure, primary short type .......................................................... 0.64 to 2.45 MPa (92.82 to 355.34 psi)
Operating angle
Ports 1, 3 .............................................................................................................................................................. 19°
Ports 2, 4 .............................................................................................................................................................. 25°

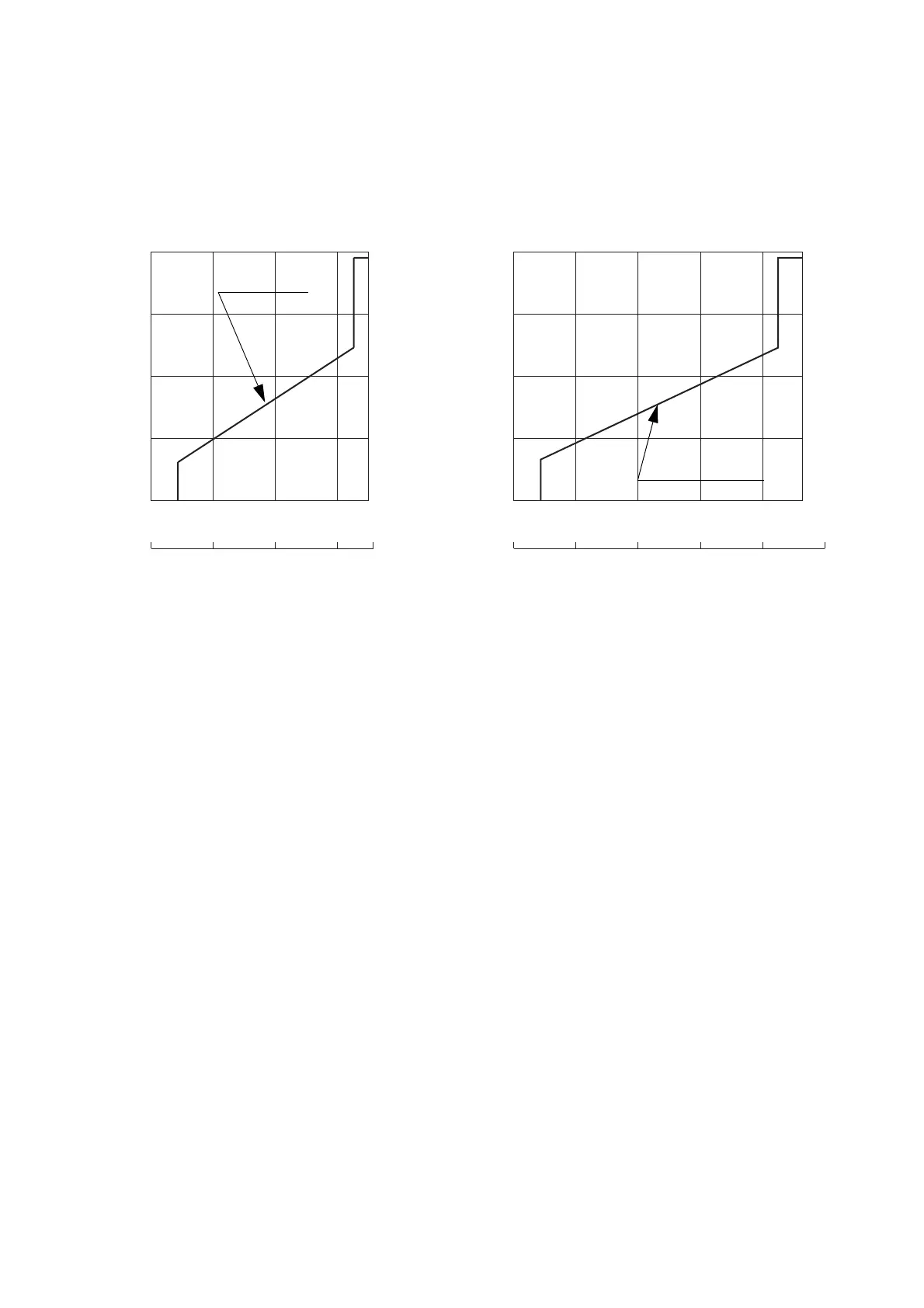

RST-03-01-001B
0
1.0
2.0
3.0
4.0
24 67
0 5 10 15 19
0
1.0
2.0
3.0
4.0
24689.4
20 250 5 10 15
Port 1, 3
Port 2, 4
Push rod stroke (mm)
Push rod stroke (mm)
Operating angle (deg.)
Operating angle (deg.)
Secondary pressure (MPa)
Secondary pressure (MPa)
Secondary
pressure
Secondary
pressure
