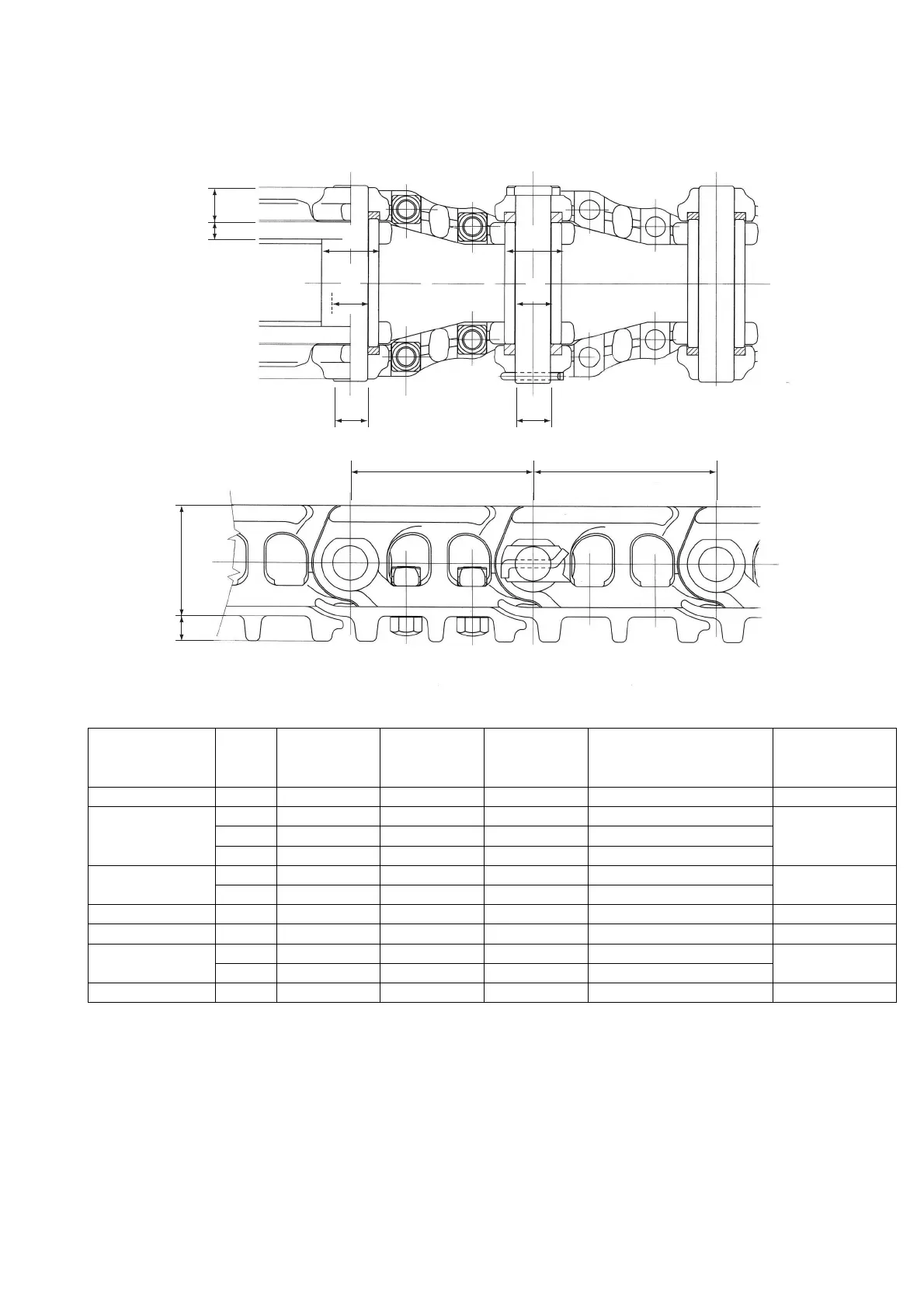

CASE CONSTRUCTION CX130B - Track Wear Limits

Issued 06-15
1002-29
Track
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Shoe plate a 28 18 Acceptable/Unacceptable Replacement
Link
b 89 84 Acceptable/Unacceptable
Cladding by welding
or replacement
c
30 28 Acceptable/Unacceptable
d
18.7
17
Acceptable/Unacceptable
Master bushing
e Ø Ø50.6 Ø49.5 Acceptable/Unacceptable
Replacement
f Ø Ø34.1 Ø35.5 Acceptable/Unacceptable
Master pin g Ø Ø33.25 Ø32.5 Acceptable/Unacceptable Replacement
Link pitch h 171.45 175 Acceptable/Unacceptable Replacement
Track bushing
e' Ø Ø50.6 Ø49.5 Acceptable/Unacceptable
Replacement
f' Ø Ø34.1 Ø35.5 Acceptable/Unacceptable
Track pin g' Ø Ø33.5 Ø32.5 Acceptable/Unacceptable Replacement
ab
cd
hh
e
e'
ff'
gg'
RI14001-005
