CASE CONSTRUCTION CX130B - Dipper;Bucket Wear Limits

Lep SC130B1002-2EN Issued 03-08
1002-36

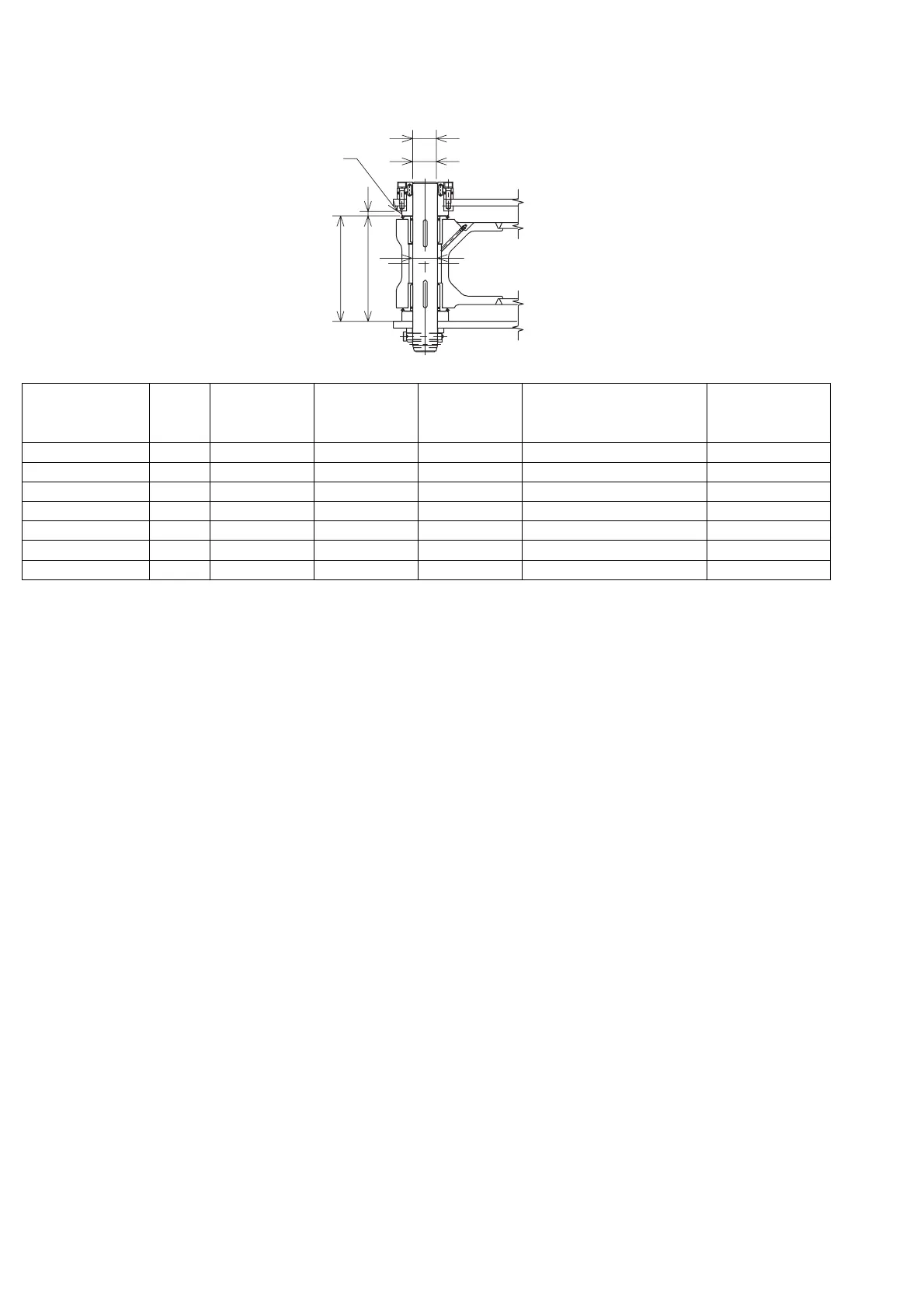

11. Dipper/Bucket
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Bucket a 255 261 Acceptable/Unacceptable -
Arm b 254 252 Acceptable/Unacceptable Replacement
Clearance c 1.0 - 3.5 Adjust with shims Acceptable/Unacceptable Adjust with shims
Bushing (bucket) d 16 8 Acceptable/Unacceptable Replacement
Pin e Ø Ø65 Ø64 Acceptable/Unacceptable Replacement
Bushing (arm) f Ø Ø65 Ø66.5 Acceptable/Unacceptable Replacement
Bushing (bucket) g Ø Ø65 Ø66.5 Acceptable/Unacceptable Replacement
d
b
a
c
g
f
e
NI14002-023
