CASE CONSTRUCTION CX130B - Connecting Rod and Compensator Joints; Connecting Rod;Dipper Wear Limits; Compensator;Bucket Wear Limits

Lep SC130B1002-2EN Issued 03-08
1002-34

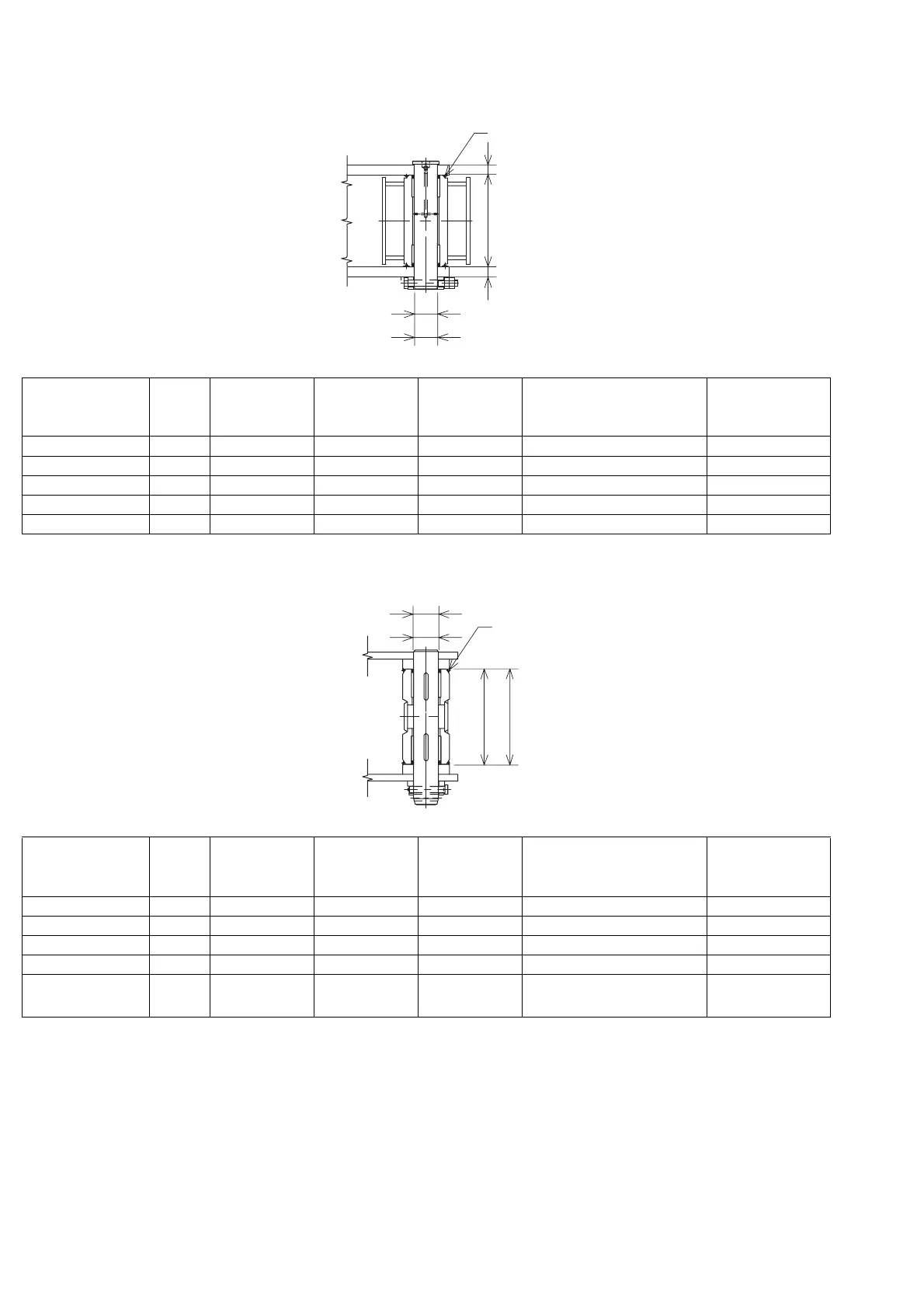

8. Connecting rod/Dipper
9. Compensator/Bucket
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Arm link a 32 30 Acceptable/Unacceptable -
Arm b 254 252 Acceptable/Unacceptable Replacement
Clearance c 1.0 - 1.5 Adjust with shims Acceptable/Unacceptable Adjust with shims
Pin d Ø Ø65 Ø64 Acceptable/Unacceptable Replacement
Bushing (arm) e Ø Ø65 Ø66.5 Acceptable/Unacceptable Replacement
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Bucket a 255 251 Acceptable/Unacceptable -
Bucket link b 254 252 Acceptable/Unacceptable Replacement
Clearance c 1.0 - 3.5 Adjust with shims Acceptable/Unacceptable Adjust with shims
Pin d Ø Ø65 Ø64 Acceptable/Unacceptable Replacement
Bushing
(bucket link)
e Ø Ø65 Ø66.5 Acceptable/Unacceptable Replacement
d
e
c
baa
NI14002-020
b a
d
c
e
NI14002-021
