CASE CONSTRUCTION CX130B - Connecting Rod;Compensator;Bucket Cylinder Head; Connecting Rod;Compensator;Bucket Cylinder Head Wear Limits

Lep SC130B1002-2EN Issued 03-08
1002-35

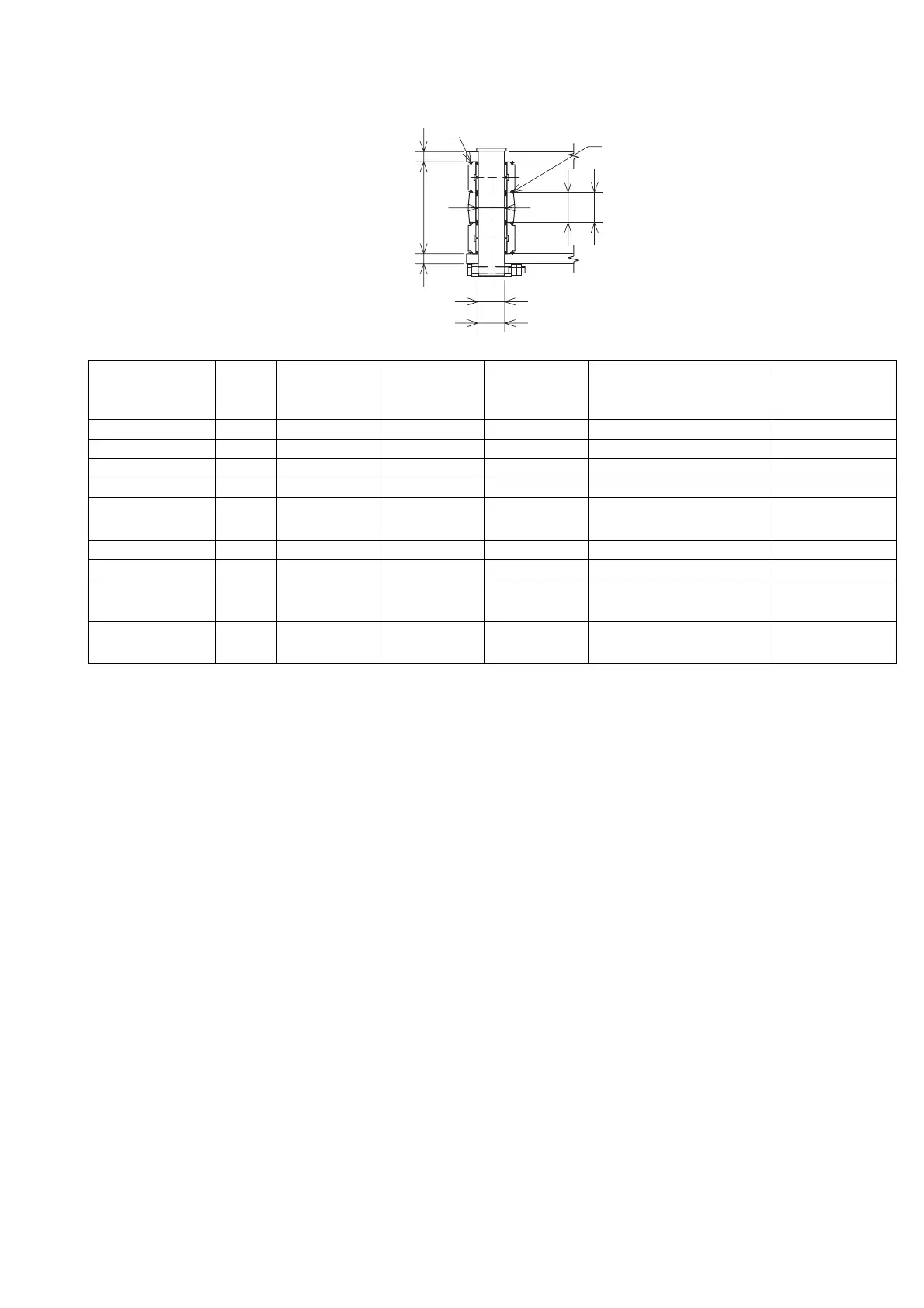

10. Connecting rod/Compensator/Bucket cylinder head
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Arm link a 32 30 Acceptable/Unacceptable -
Bucket link b 254 252 Acceptable/Unacceptable Replacement
Clearance c 1.0 - 1.5 Adjust with shims Acceptable/Unacceptable Adjust with shims
Bucket link d 92 94 Acceptable/Unacceptable Replacement
Bucket cylinder
(top section)
e 91 89 Acceptable/Unacceptable Replacement
Clearance f -0.5 - 2.0 Adjust with shims Acceptable/Unacceptable Adjust with shims
Pin g Ø Ø70 Ø69 Acceptable/Unacceptable Replacement
Bushing
(bucket link)
h Ø Ø70 Ø71.5 Acceptable/Unacceptable Replacement
Bushing
(bucket cylinder)
i Ø Ø70 Ø71.5 Acceptable/Unacceptable Replacement
d
aab
e
h
g
i
f
c
NI14002-022
