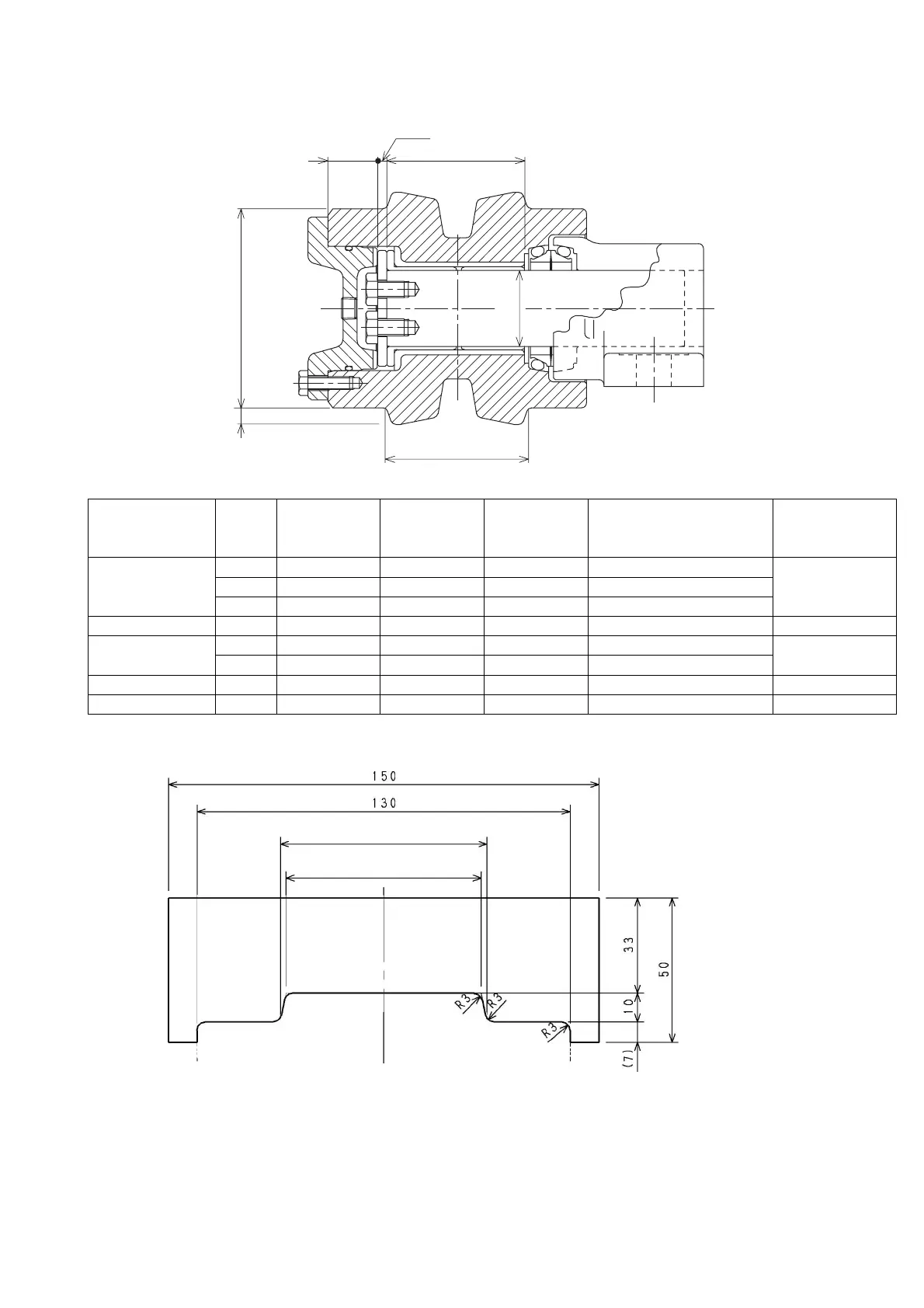

Upper roller
Gauge
unit in mm
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Carrier roller
a Ø Ø120 Ø112 Acceptable/Unacceptable
Cladding by welding
or replacement
b 10 - Acceptable/Unacceptable
c 68 62 Acceptable/Unacceptable
Shaft d Ø Ø40 Ø39.5 Acceptable/Unacceptable Replacement
Bushing
d Ø Ø40 Ø40.8 Acceptable/Unacceptable
Replacement
e
60.5
60.1 Acceptable/Unacceptable
Thrust plate f 5.5 5 Acceptable/Unacceptable Replacement
Cover g
32.2
31.7
Acceptable/Unacceptable Replacement
RI14001-003
e
d
a
b
f
g
c
6 8
6 4
NI14002-010
