CASE CONSTRUCTION CX130B - COMPONENT WEIGHT; Major Component Weights

Issued 06-15
1002-22
COMPONENT WEIGHT

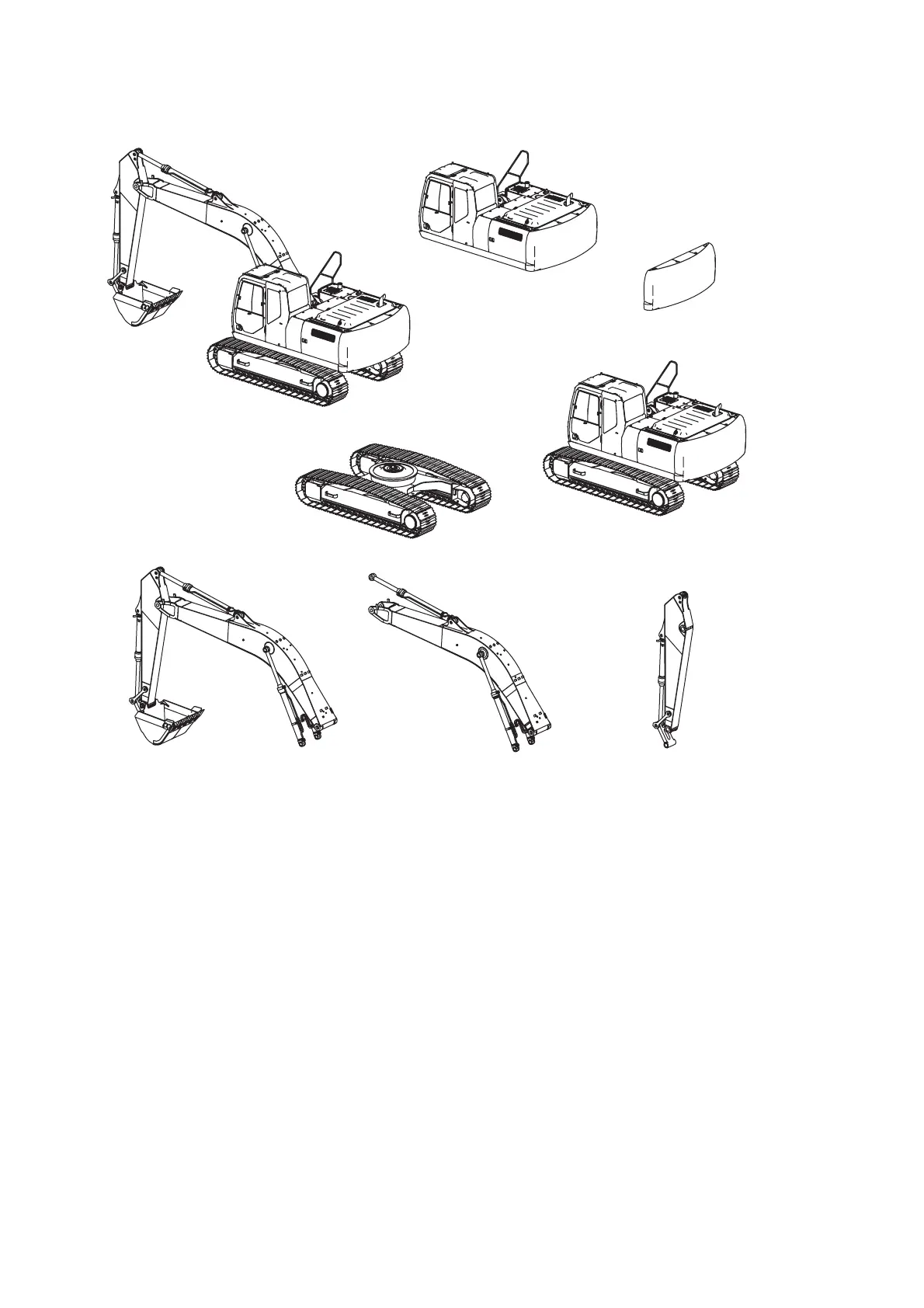

Major component weight (CX130B)
RST-11-01-001A
Weight information is approximate
A)
Operating weight .......................................................................................................................12800 kg (28219 lbs)
B)
Upper mechanism (including counterweight and turntable bearing) ...............
............................6050 kg (13448 lbs)
C)
Counterweight ...............................................................................................................................2190 kg (4828 lbs)
D)
Lower mechanism (with standard grouser shoe) ..........................................................................4430 kg (9811 lbs)
E)
Main Unit Weight .......................................................................................................................10500 kg (23259 lbs)
F)
Attachments...................................................................................................................................2230 kg (4960 lbs)
G)
Boom (including cylinders)............................................................................................................1250 kg (2756 lbs)
H)
Arm (dipper) (including cylinders and linkage) ................................................................................580 kg (1279 lbs)
A
B
C
D
E
F
G
H
